Size | 1/2" |
Function | 2 Way Normally Closed |
Valve Operation | Pilot Operated |
Body Material | Brass |
Seal | NBR |
Pressure Range | See table * Minimum pressure differential of 03 or 05 is required |
Media |

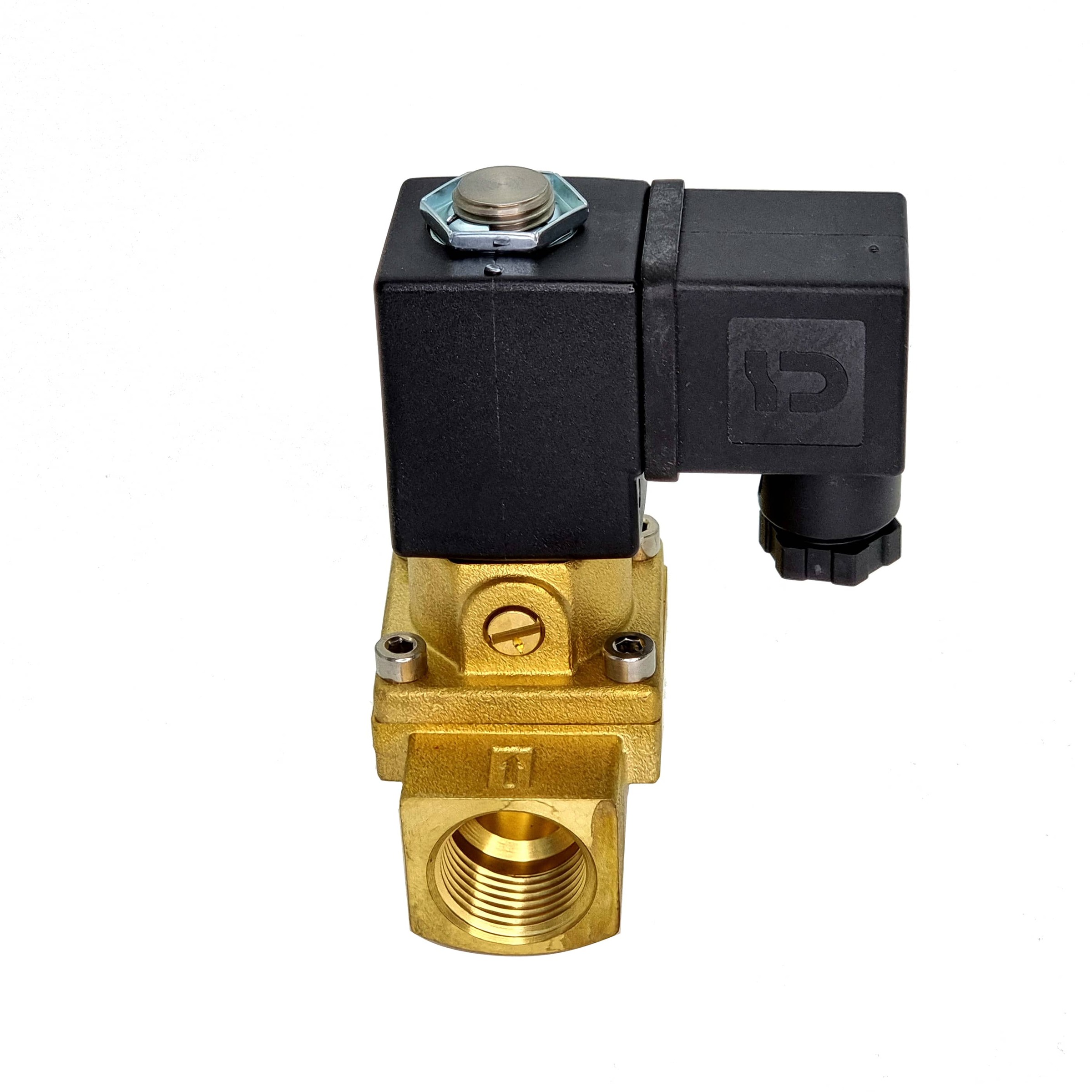

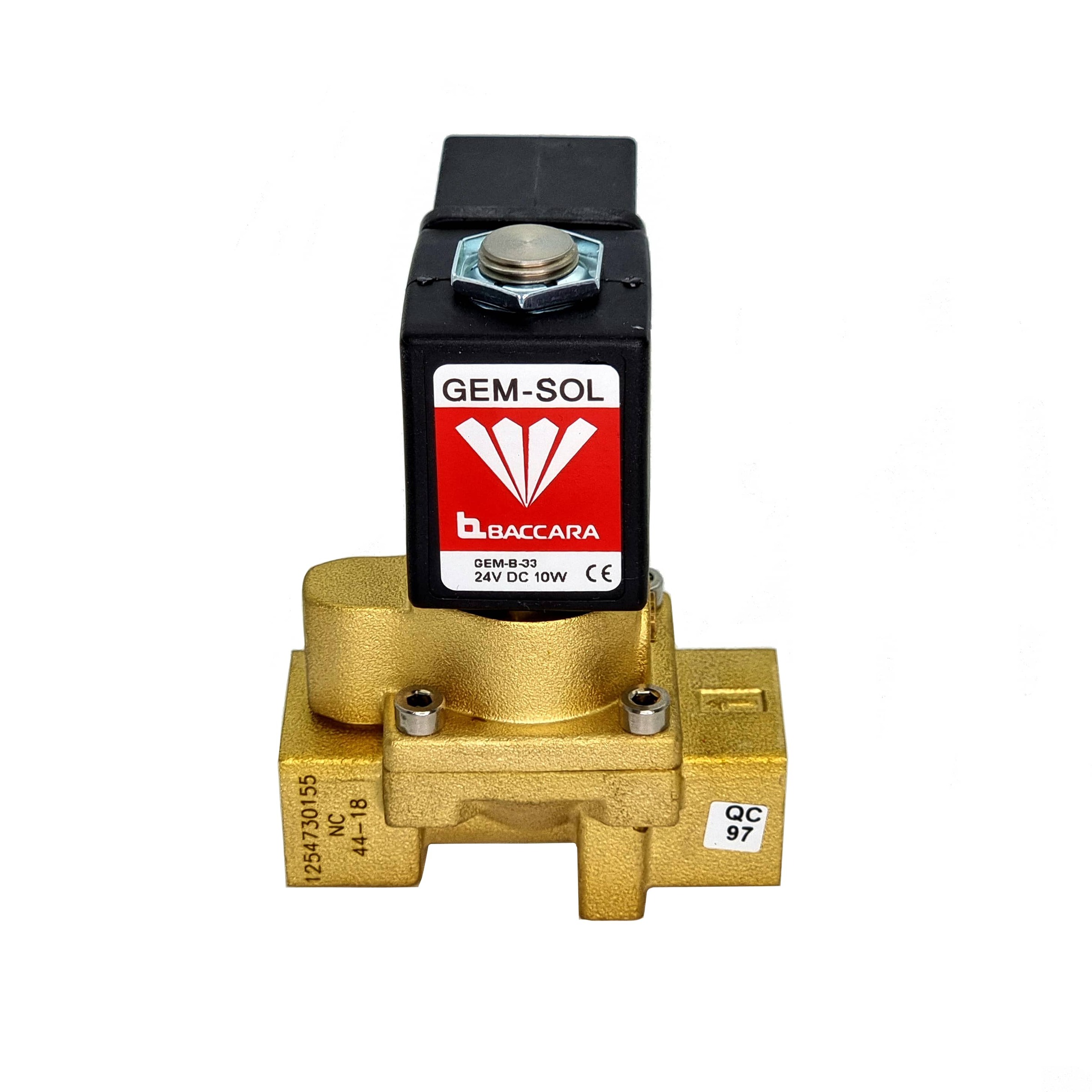

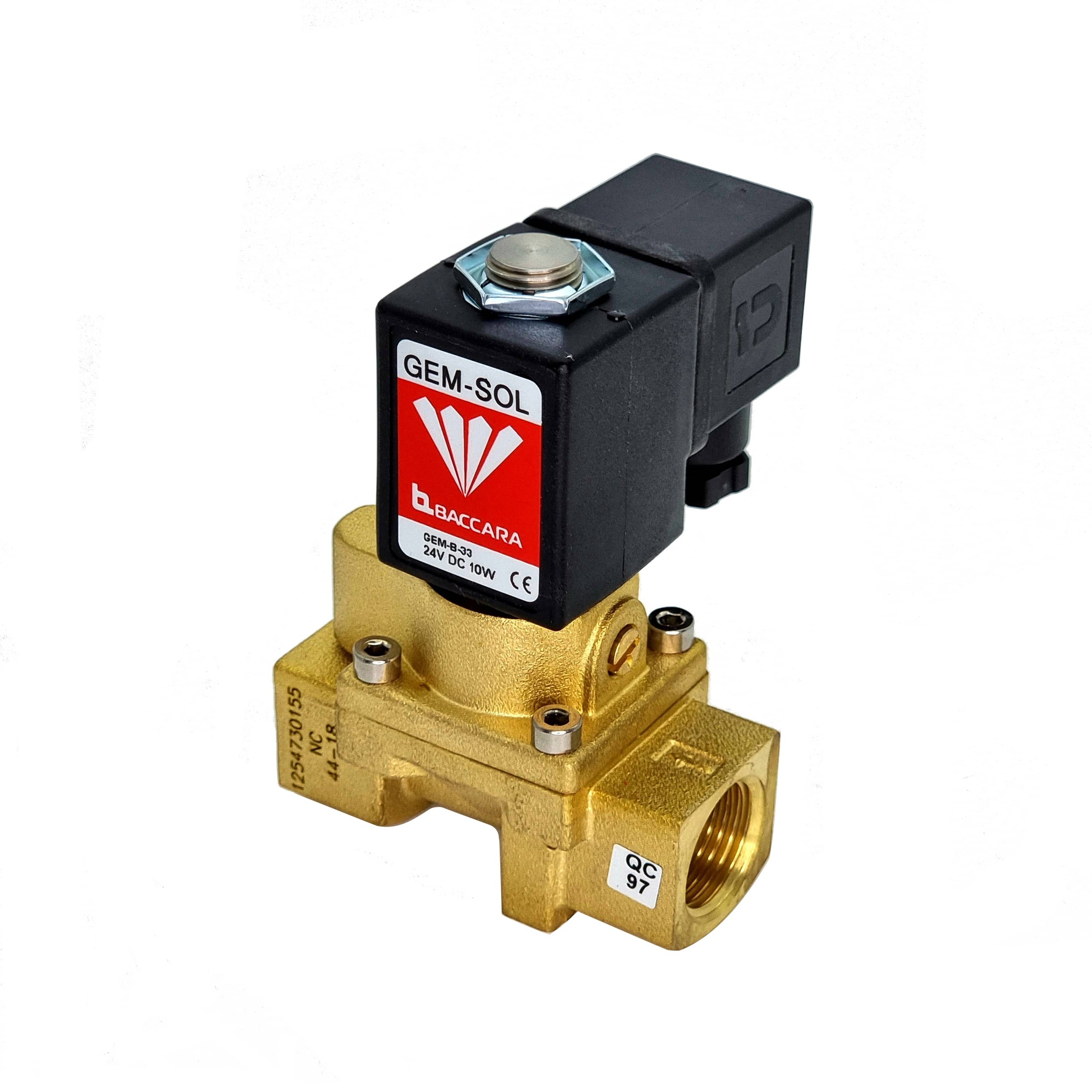

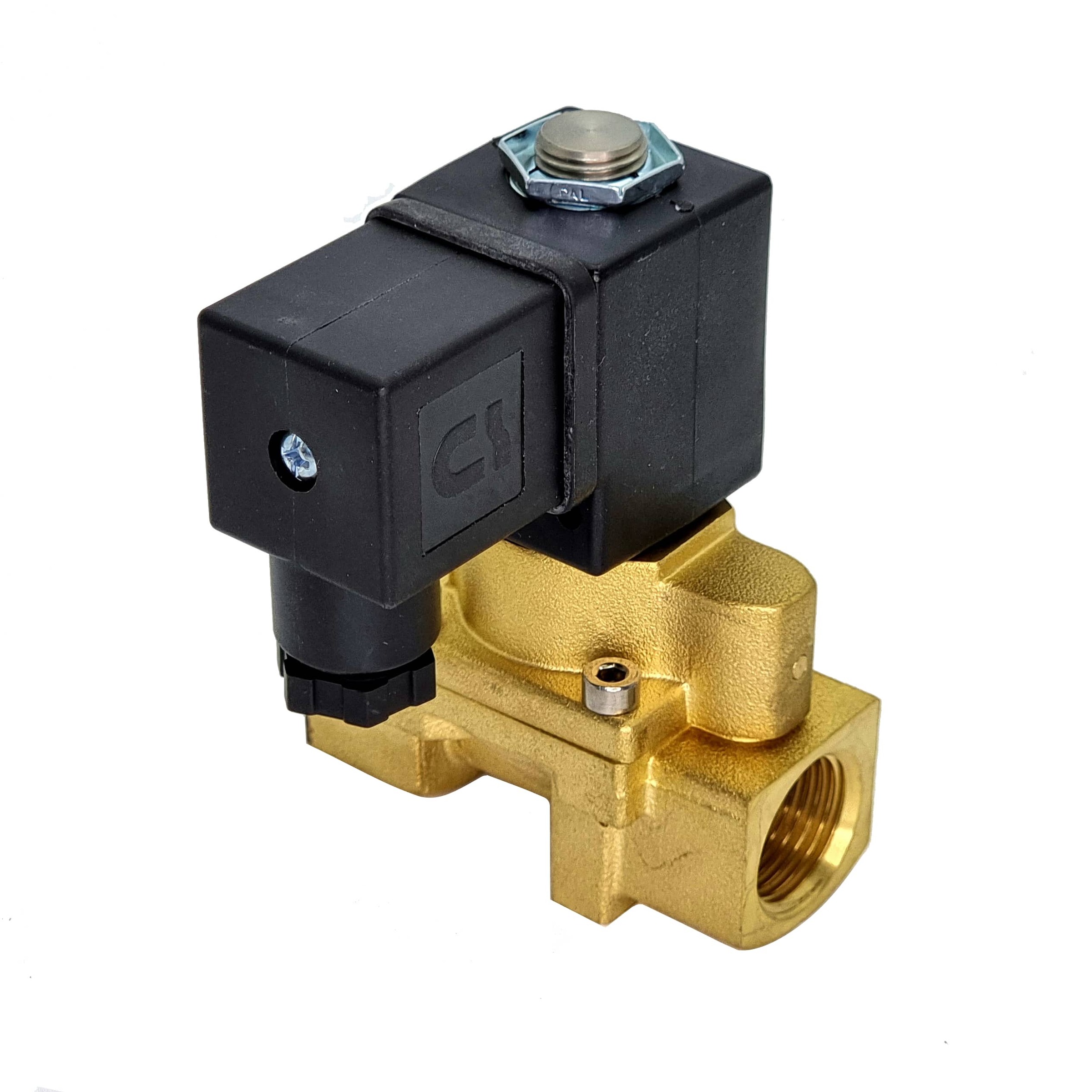

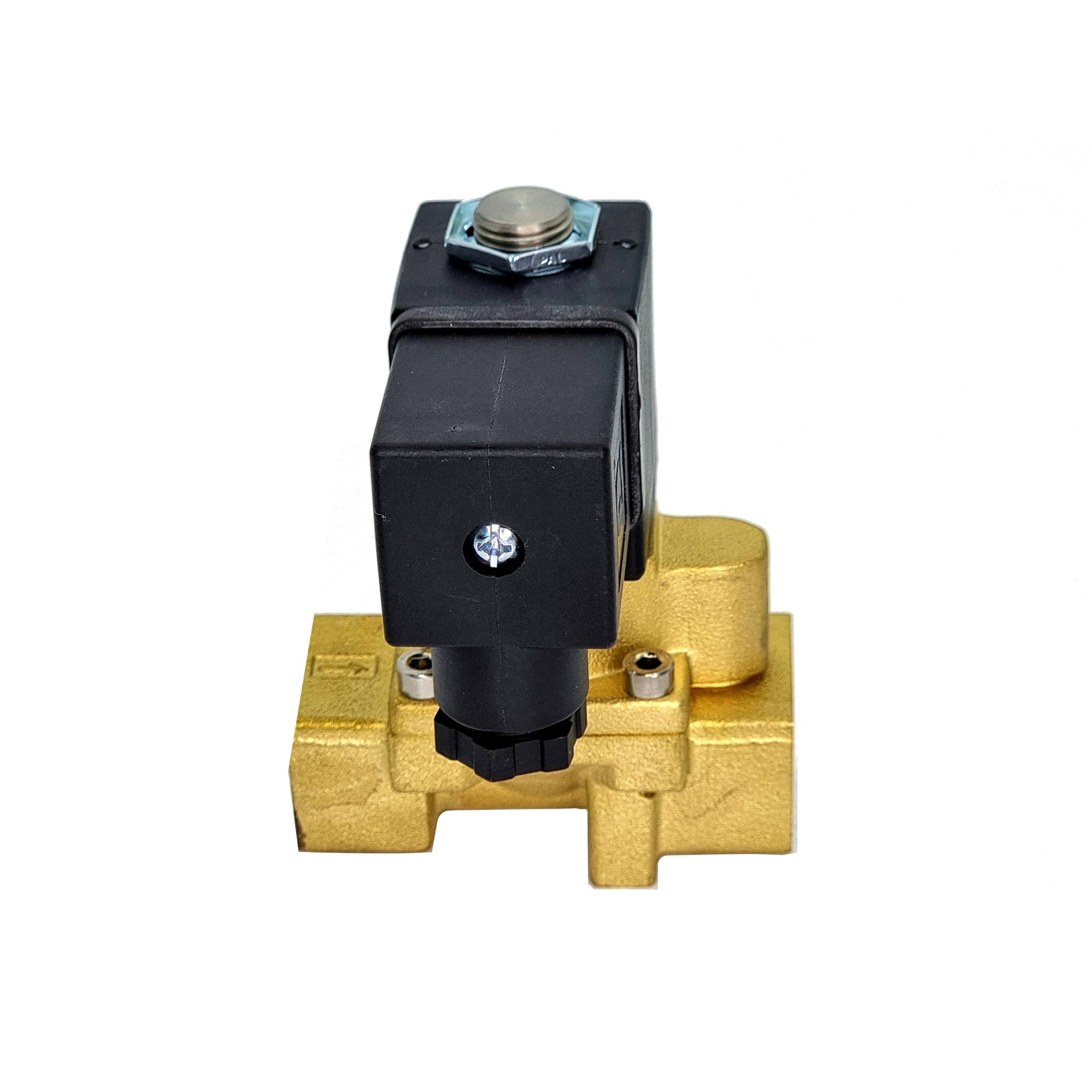

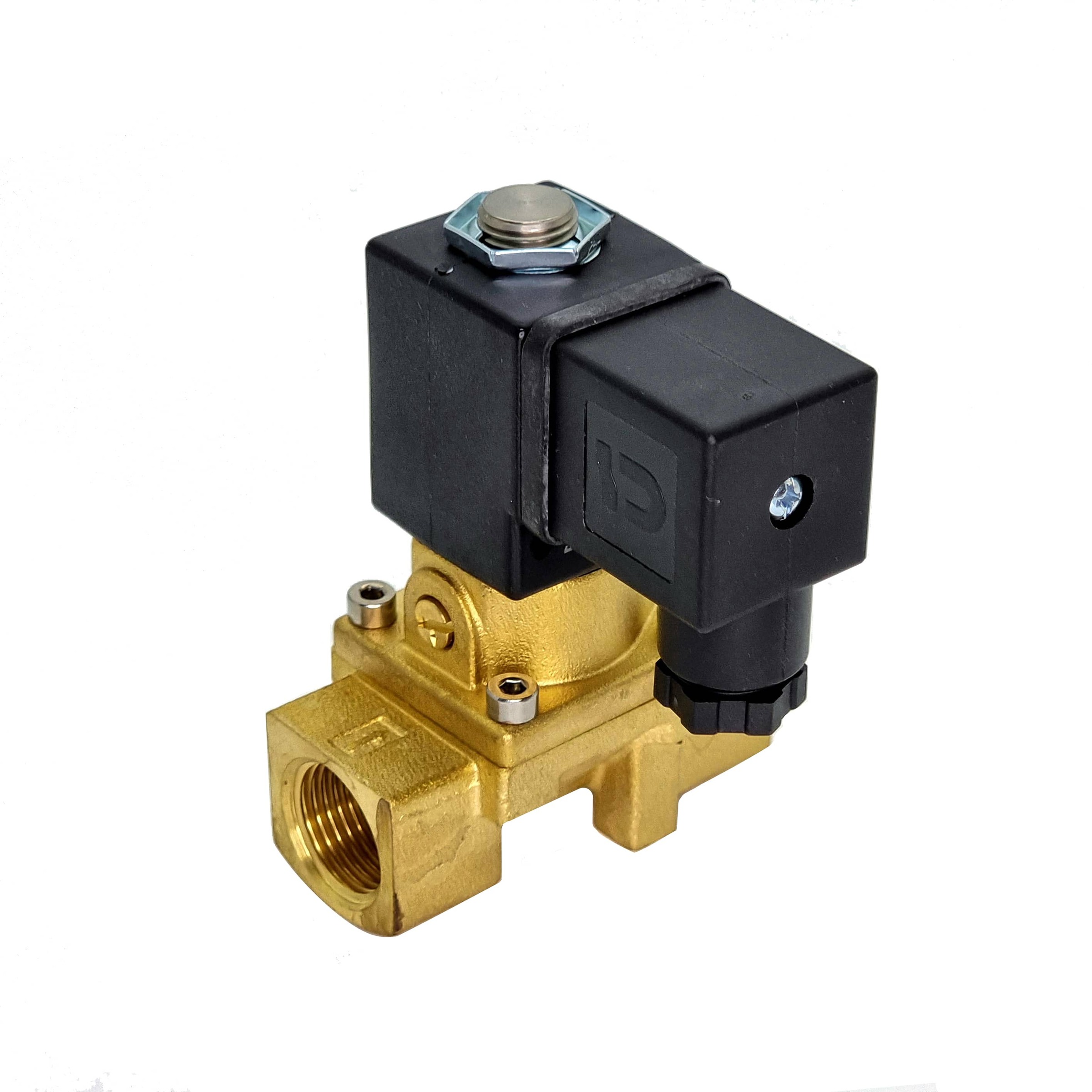

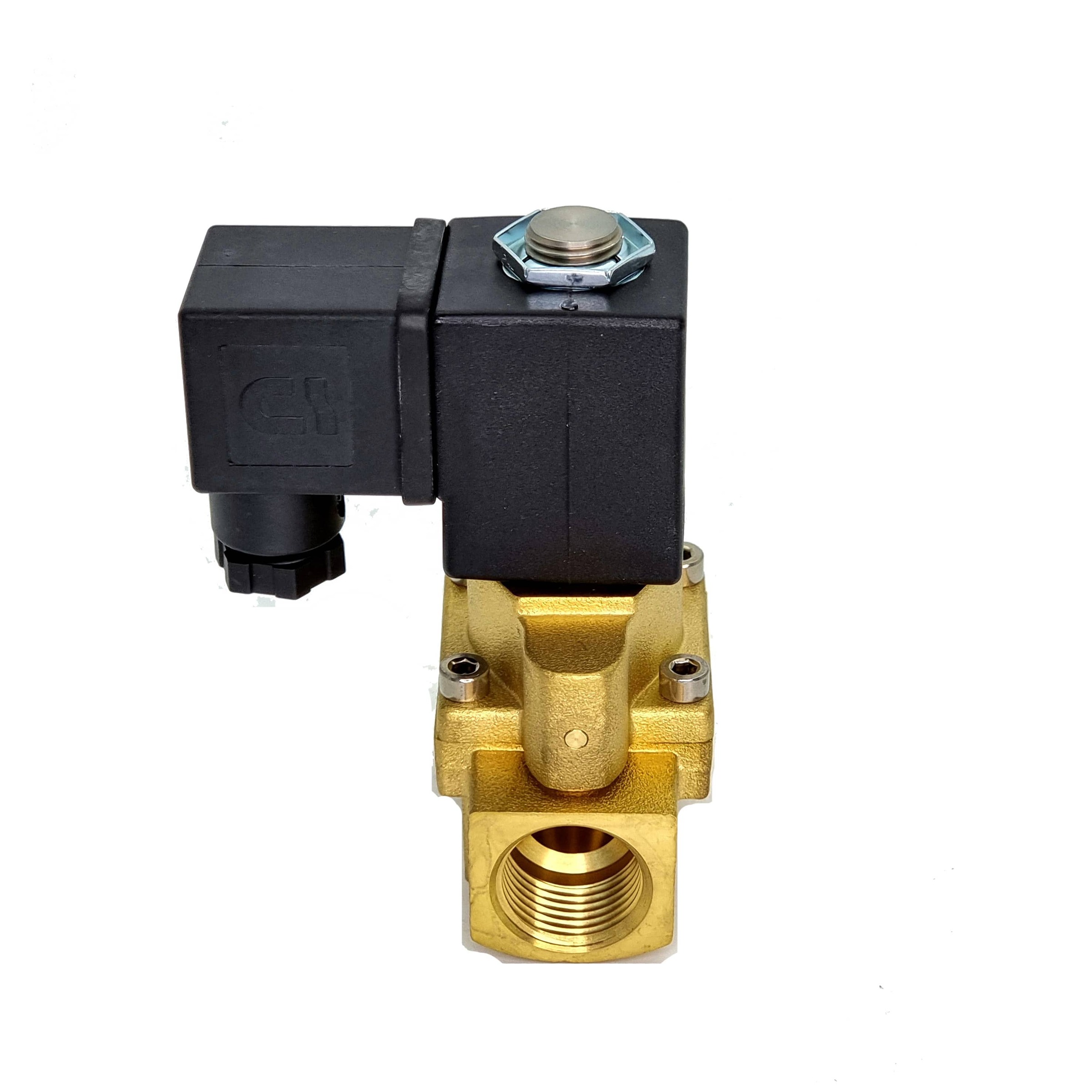

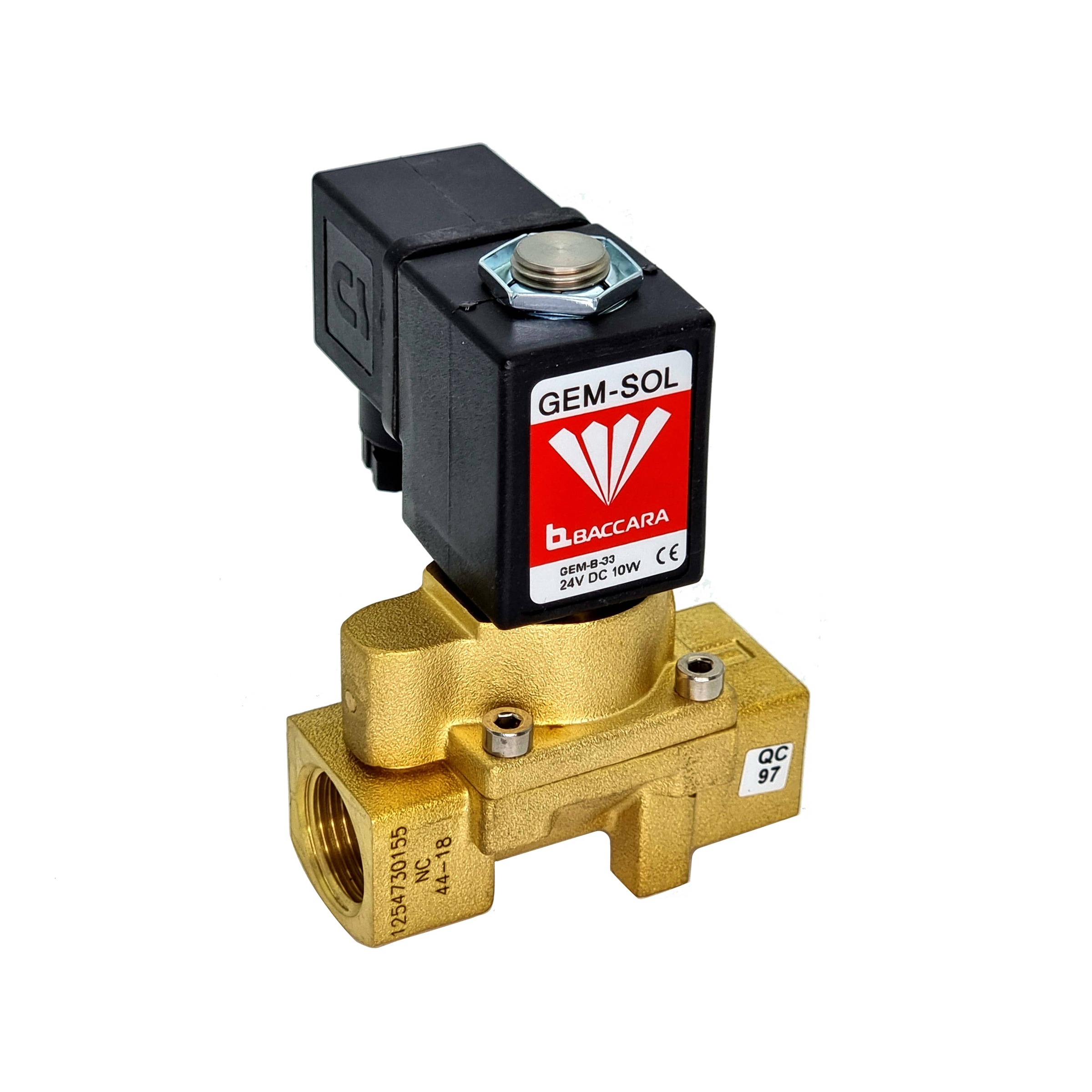

(GEM-S-2W-BRASS)
Technical Data
Function | 2 Way NC, NO |
Ports size | 1/2" BSP |
Pressure range |
See table |
Kv (l/min) | See table |
Temperature range | Fluid : -10ºC to 80ºC (no freezing) Ambient : -10ºC to 50ºC |
Materials in contact with media |

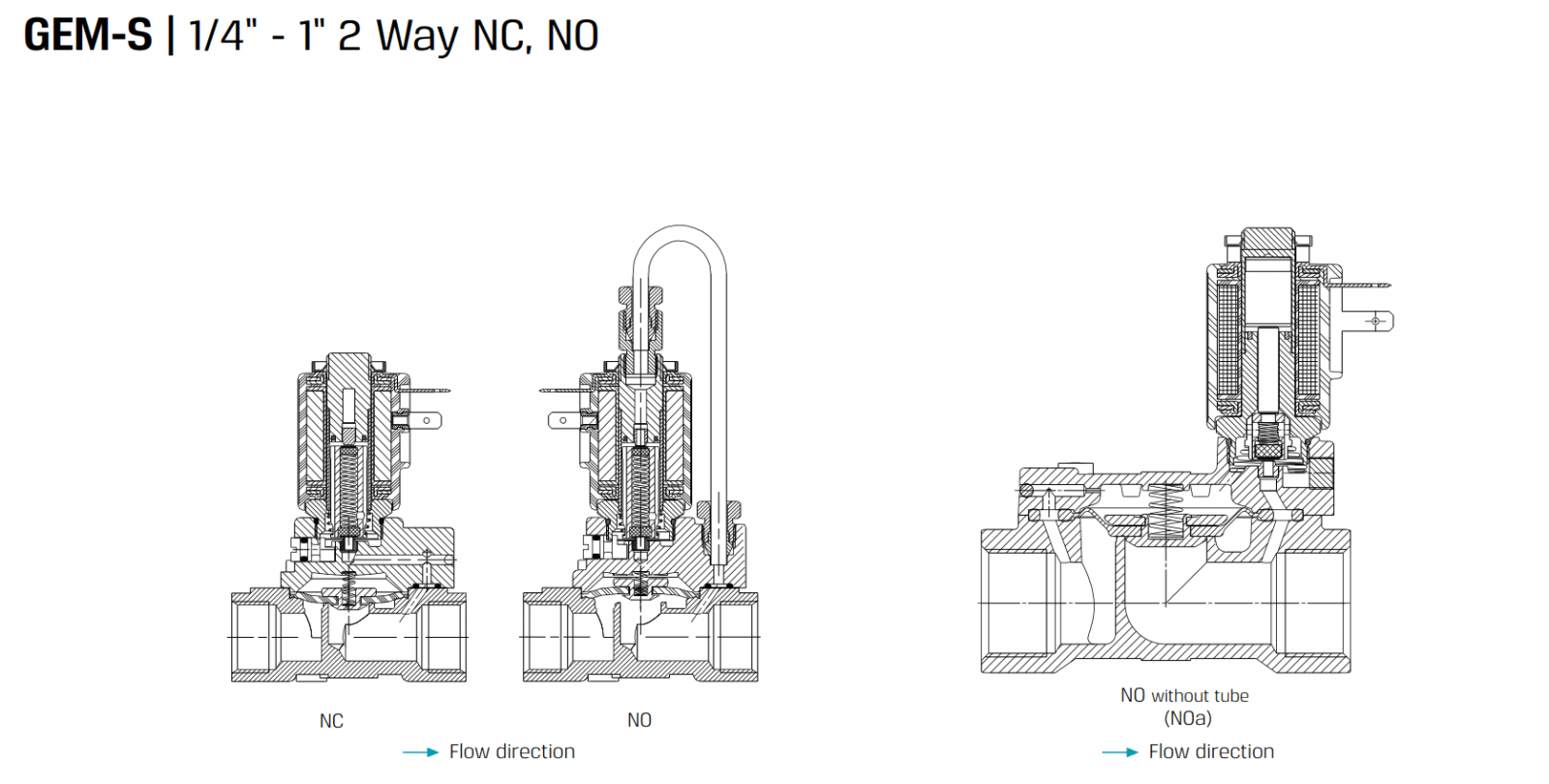

Manual override: NC/NO - Brass screw NOa* - manual override is not available *pressure is supplied through the base Main Valve: Brass, Stainless Steel AISI 316 Solenoid Operator: Stainless Steel AISI 300 & 400 series Seals: NBR, FPM (Viton®), EPDM |

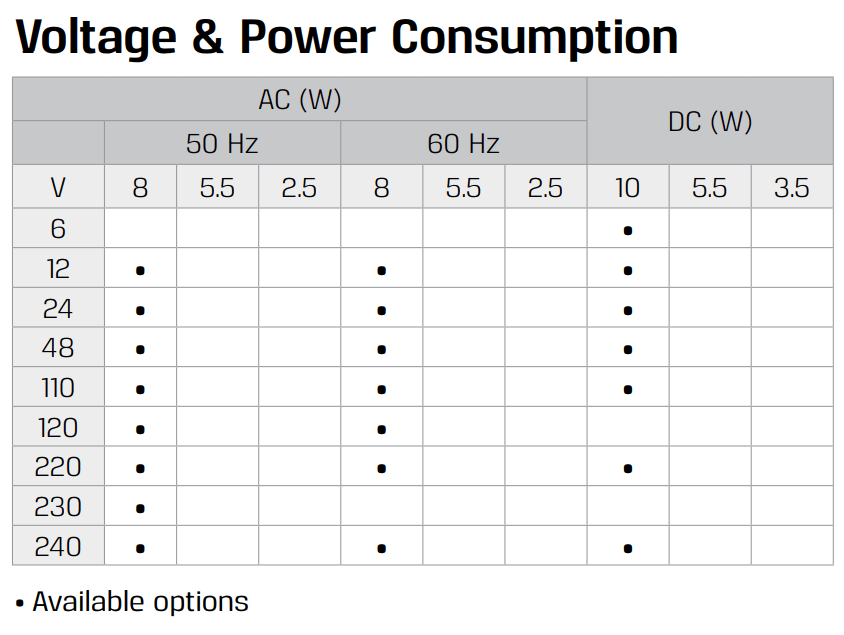

Coil voltage | • Voltage and power consumption - see table • All Baccara coil voltages are ± 10% of nominal |
Standard / Certification | • UL 429 * Available on selected models only Please contact our technical sales department for details |
Standard protection class | IP65 with connector * Option : IP68 (please refer to GEM-BP Coil) |
• Slow closing system to prevent water hammer effect
Pressure (bar) & Flow table NO/NC GEM-S--20....41
Size | Orifice (mm) |
Pressure (bar) |
Kv (l/min) |
1/4" | 8 | 05 to 20 | 12 |
3/8" | 8 | 16 | |
1/2" | 12 | 35 |
Pressure (bar) & Flow table NO/NC GEM-S--r
Size | Orifice (mm) |
Pressure (bar) |
Kv (l/min) |
1/2" | 16 | 05 to 20 | 60 |
3/4" | 16 | 80 |
Pressure (bar) & Flow table NO/NC GEM-S--50....60
Port Connection |
Orifice (mm) |
Pressure (bar) AC DC |
Kv (l/min) |
|
3/4" | 20 | 03 to 15 | 03 to 15 | 130 |
1" | 25 | 05 to 15 | 05 to 15 | 200 |
