- Ports size: 1/2″ - 2" BSP
- Voltage: 12V DC, 24V DC
- Opening/Closing Time: ≤2 sec
- Features: Manual Override, Visual Indicator & Feedback
- Body material: UPVC
AU $312.84

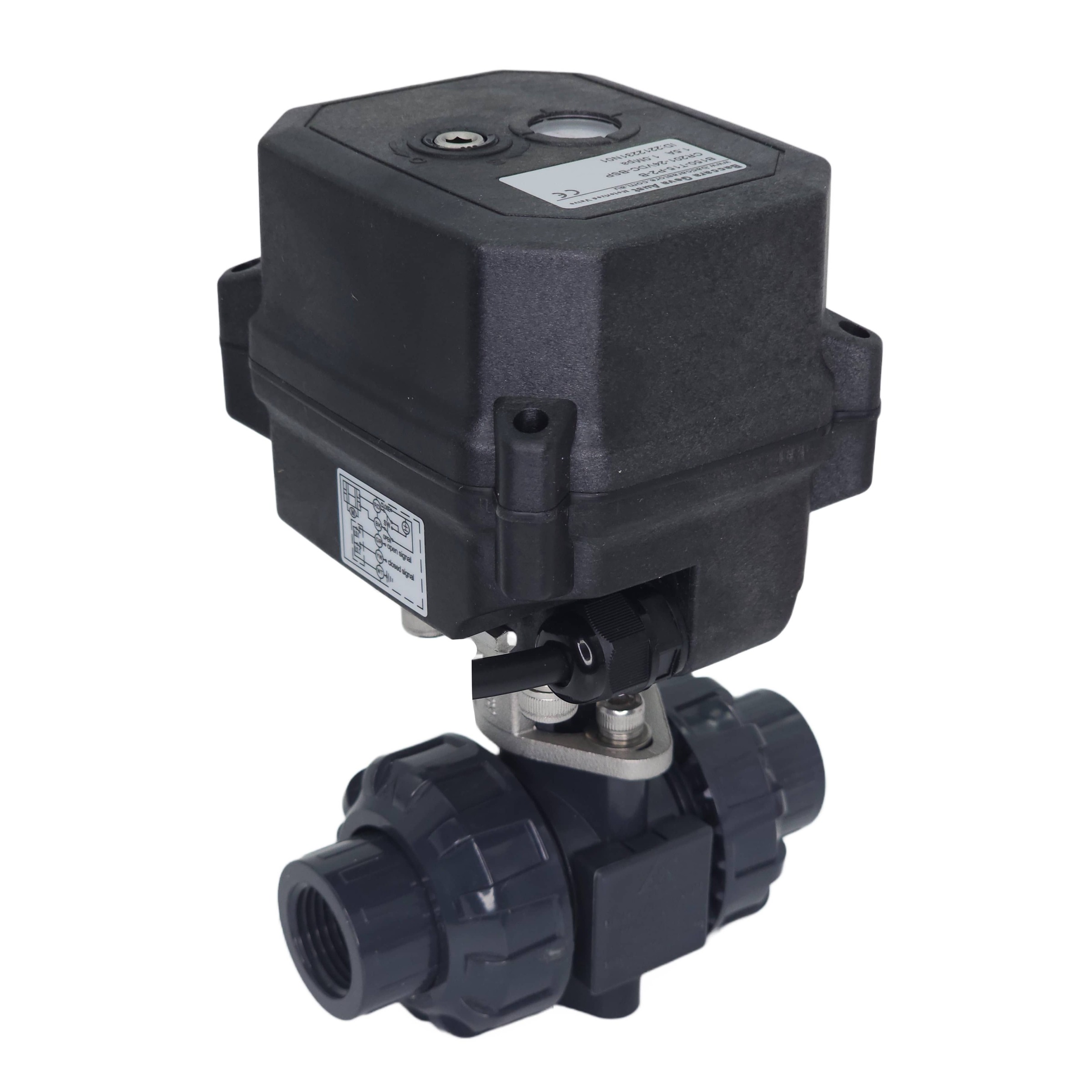

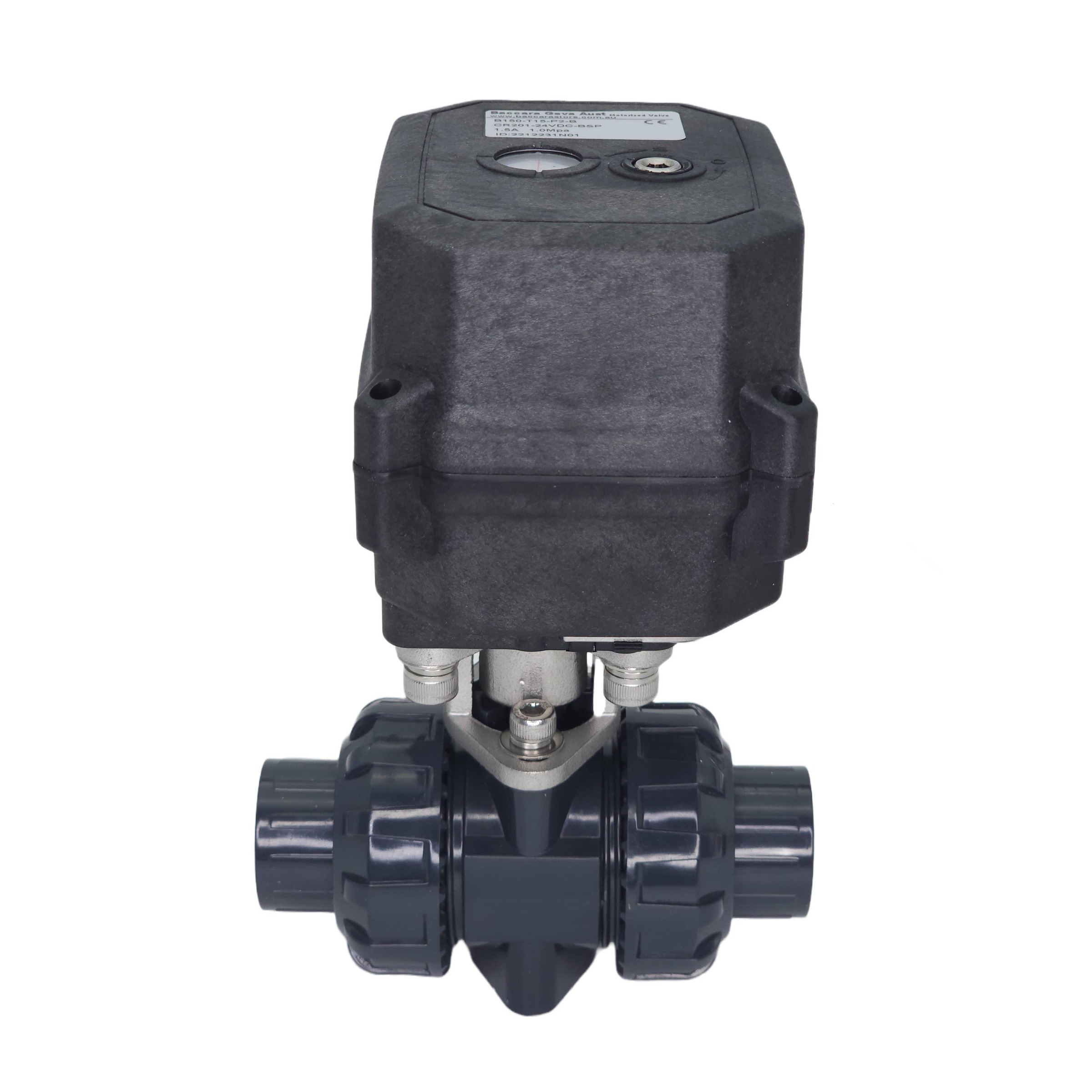

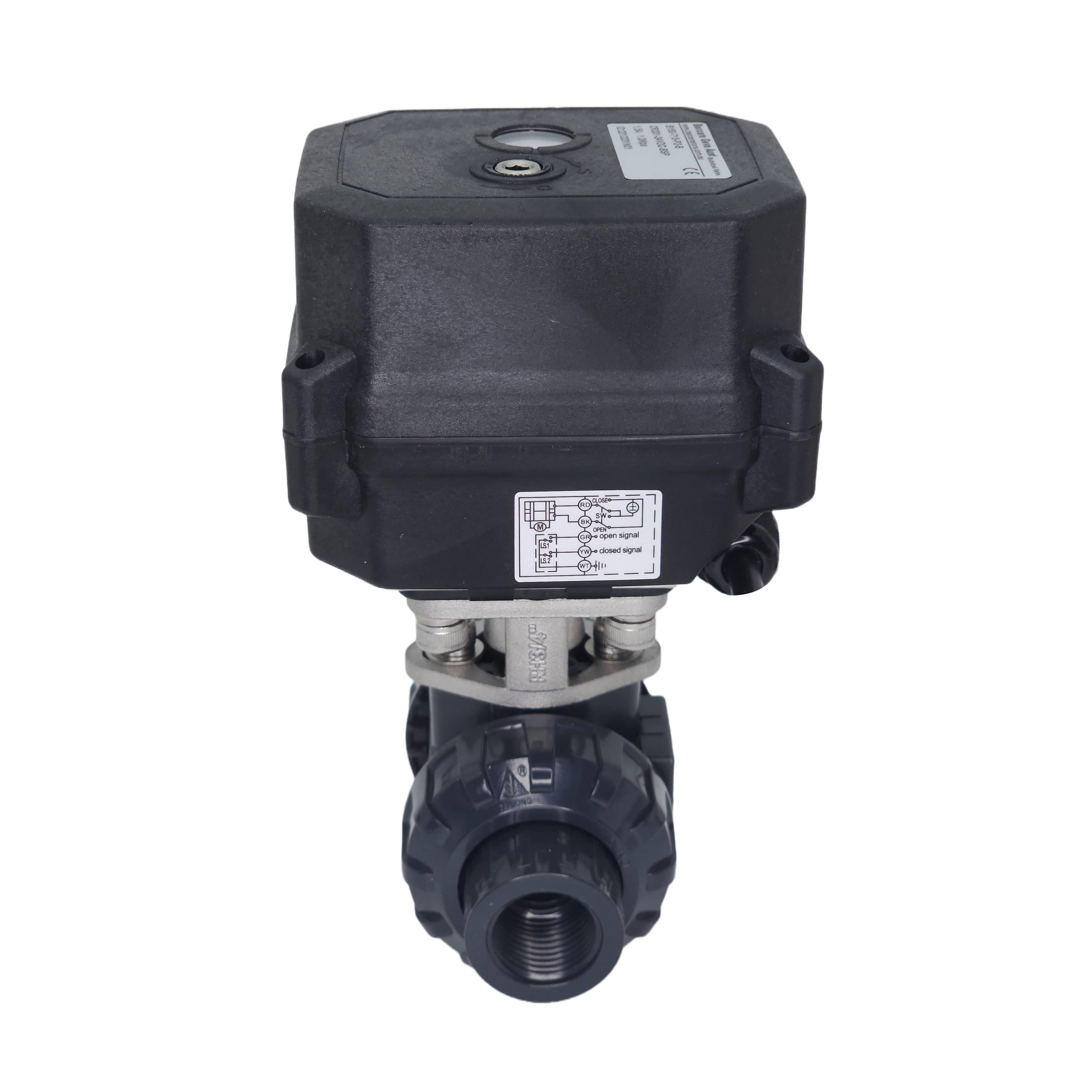

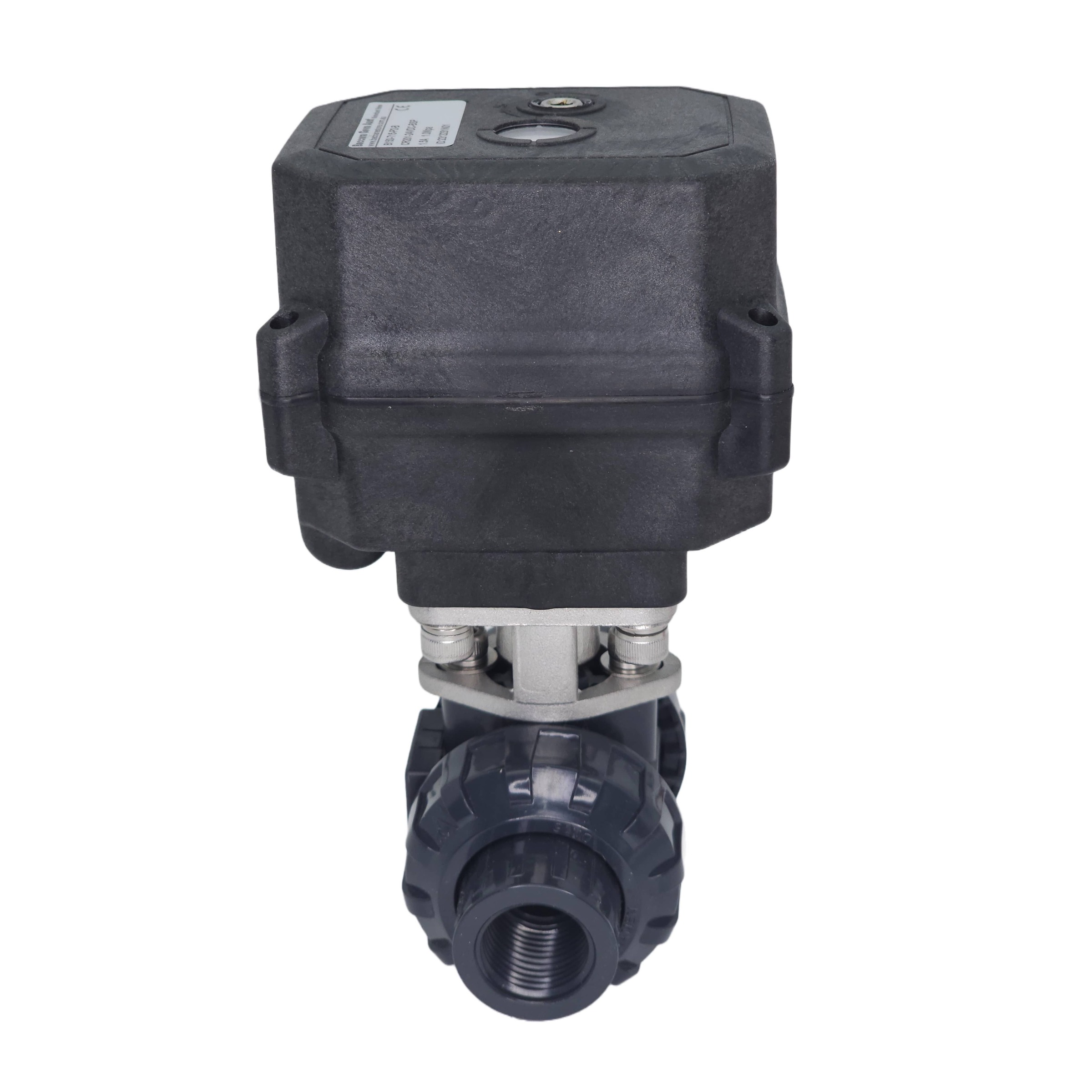

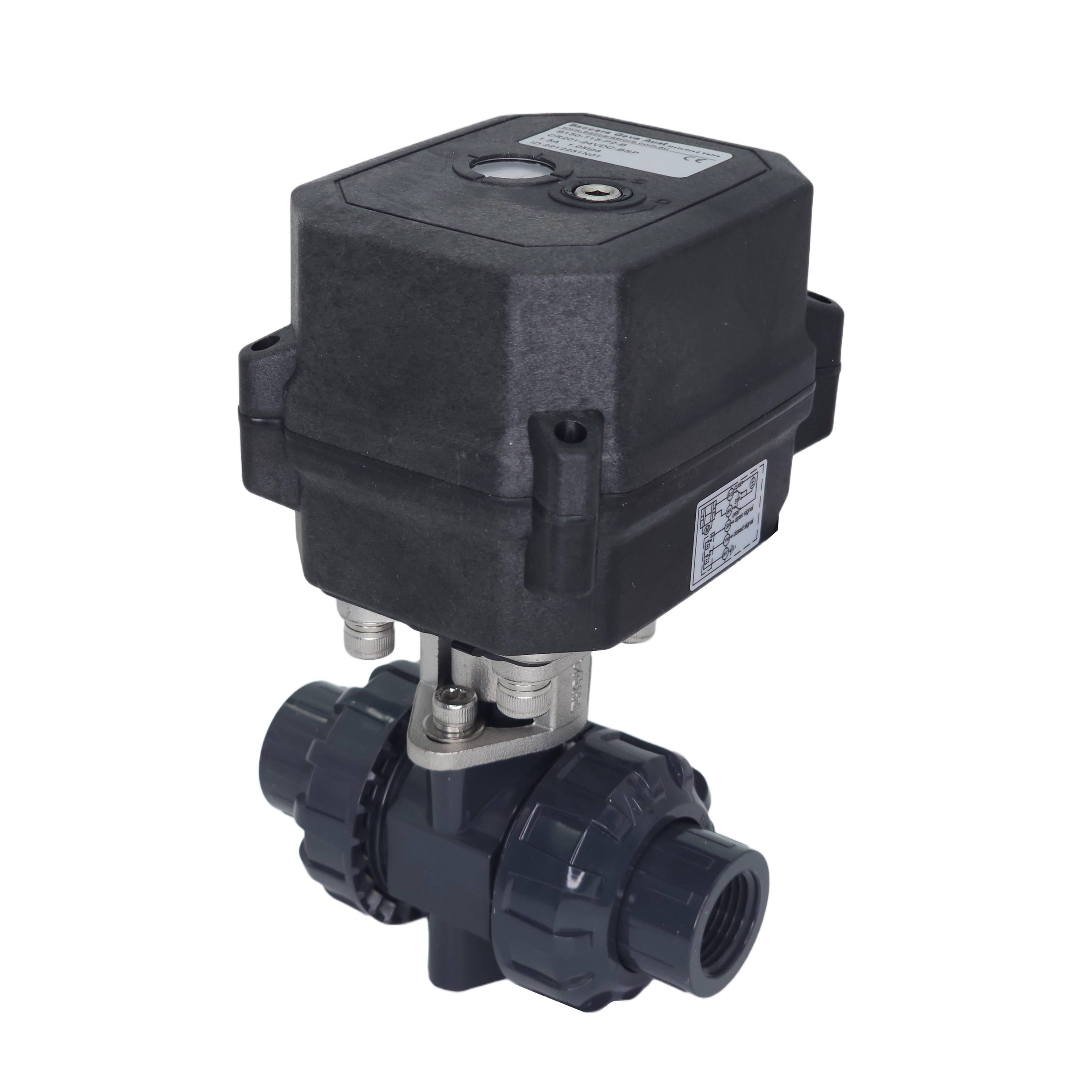

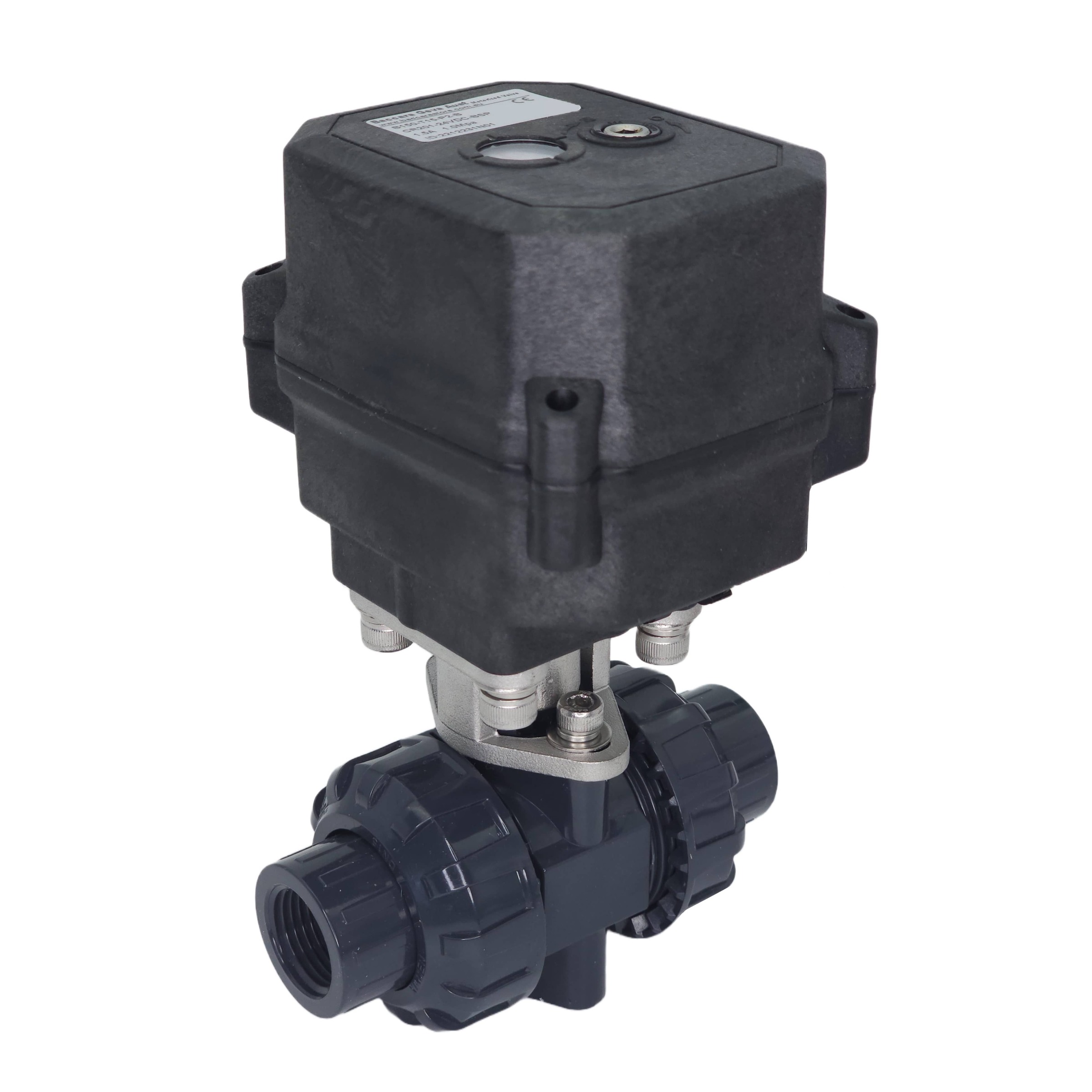

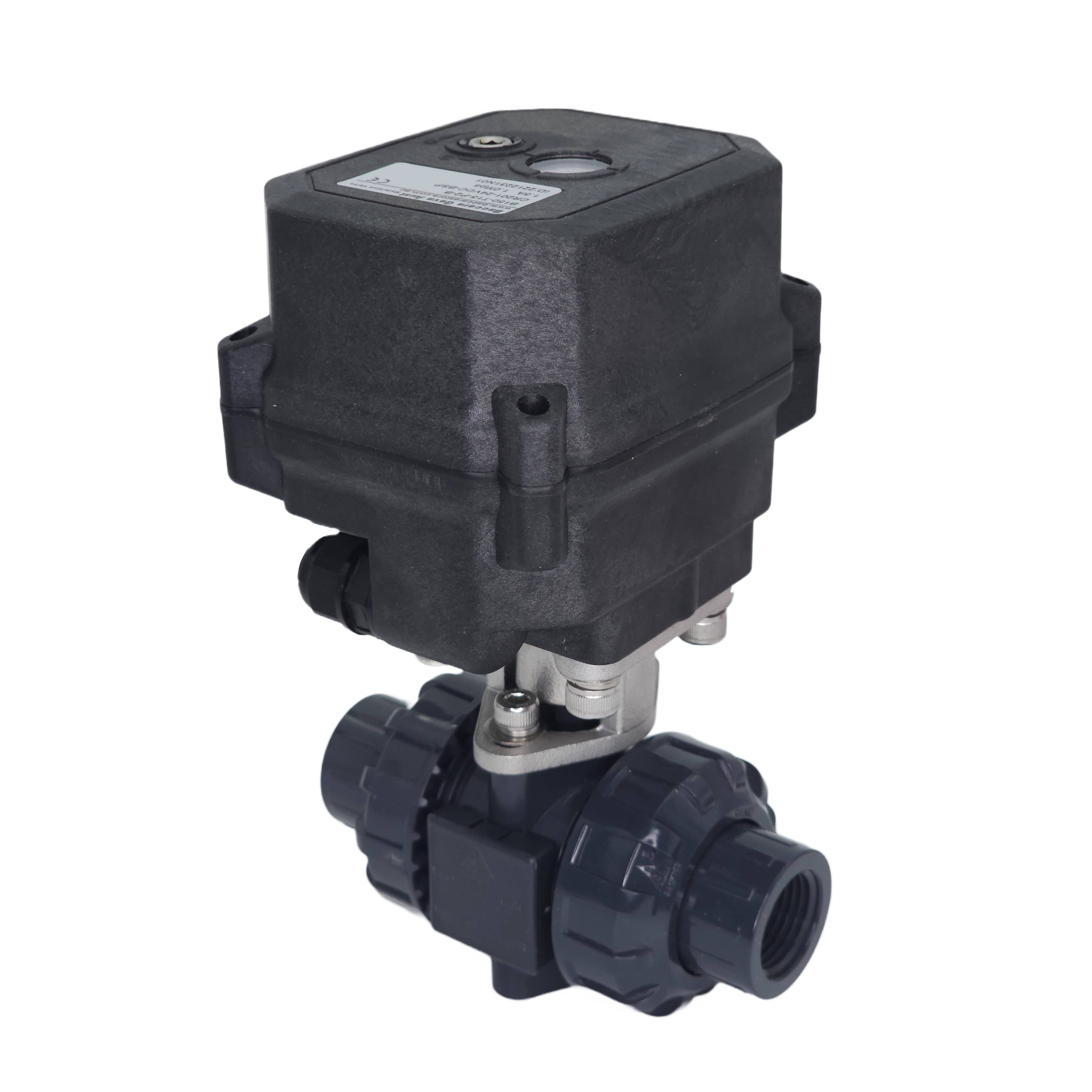

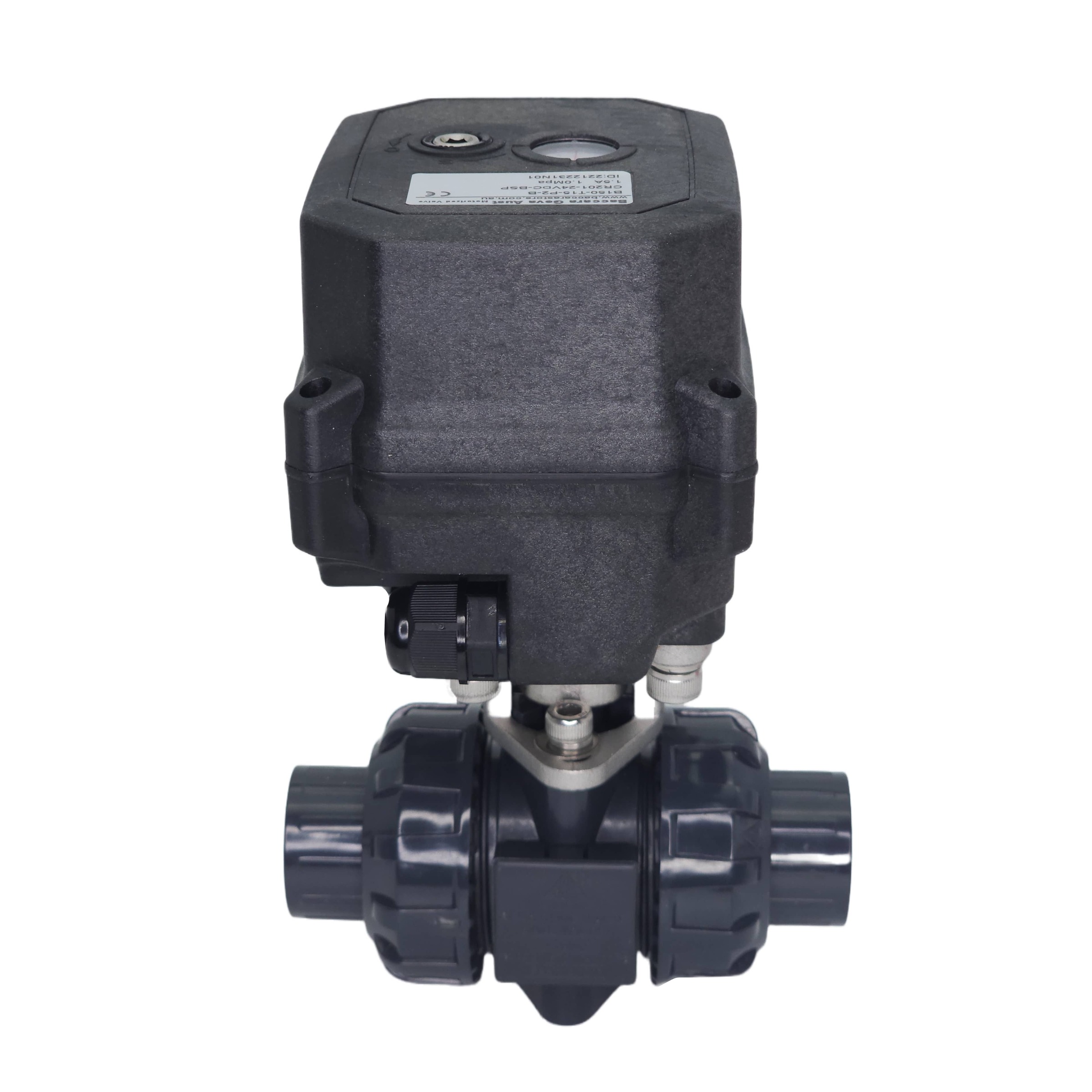

The UPVC Fast Acting Non-Return 2 Way Electric Actuated Ball Valve with Manual Override and Visual Indicator is a high-performance valve that offers reliable and efficient control of fluid flow. It is designed to prevent backflow and ensure fast response in various applications. The valve features a stainless steel linkage between the motor and the valve, which ensures durability and corrosion resistance. The valve also has a quick opening and closing time of less than 2 seconds, which reduces the risk of water hammer and leakage. The valve is available with 12V DC and 24V DC electric actuator, which has a feedback option (only with CR501 5 wire) for remote monitoring and control. The actuator also has a manual override function and a visual indicator for easy operation and maintenance. The valve is available in sizes ranging from 1/2” to 2" BSP, and can handle a maximum pressure of 10 bar. The valve is suitable for liquid temperatures from 2℃ to 55℃, and environment temperatures from -15℃ to 50℃. The valve has an IP68 rating, which means it is dustproof and waterproof.
The UPVC Fast Acting Non-Return 2 Way Electric Actuated Ball Valve with Manual Override and Visual Indicator is an ideal choice for applications that require fast and reliable flow control, such as irrigation and water treatment. It is easy to install, operate, and maintain, and offers a long service life. Order yours today and enjoy the benefits of this innovative valve.
Application
Design Features
Size | 1/2″ – 2″ BSP |
Function | 2 Way NC/NO |
Valve Operation | Power to open and Power to close |
Body Material | UPVC |
Seal | FKM & PTFE |
Pressure Range | 10 bar |
Valve Type | Non return valve |
Manual Override | Yes |
Feedback | Yes |
Open/close indicator | Yes |
Cable lenght | 0.5m |
Media | Air & Fluid |
(B150-UPVC-Ball-Valve)
Technical Data
Product size |
1/2”, 3/4" ,1”, 11/4", 11/2", 2" BSP |
Valve Body Material |
UPVC |
Maximum working pressure |
1.0 MPa (10 bar) |
Actuator Material |
Polyphenylene Oxide |
Open/close time |
≤2 sec / 90° |
Sealing Material |
EPDM, FKM & PTFE |
Working voltage |
DC12V, DC24V |
Manual Override |
Yes |
Wiring control methods |
CR201, CR501, CR303 |
Visual Indicator |
Yes |
Working current |
≤2A (DC12V), ≤1A (DC24V) |
Feedback |
Yes (only with CR501) |
Locked Rotor Current |
5A (DC12V), 3.5A (DC24V) |
IP Rating |
IP68 |
Max. torque force |
15 N.m |
Environment temperature |
-15℃~50℃ |
Lifetime |
50,000 times at least |
Liquid temperature |
2℃~55℃ |
Cable Length |
0.5m |
Actuator rotation |
90° |
Cable Specification |
UL 2464 22awg |
Circulation medium |
Fluid, air |
Construction Diagrams
Wiring Diagrams
