1 1⁄4” BSP Brass Nickel Plated Electric Actuated B
- Ports size: 1 1⁄4” BSPP
- Protection class IP67
- Manual Override: Yes
- Open/close indicator: Yes
- Body material: Brass Nickle Plated
AU $301.18
If you are looking for a reliable and versatile electric actuated ball valve for your industrial applications, look no further than our 2 Way Stainless Steel 304, 3 Piece IP67 Rated Electric Actuated Ball Valve with Manual Override, Feedback & Visual Indicator. This valve is designed to offer high performance and durability in various environments and media. It can be used for on/off control of chemical dosing, precision control, water treatments, brewing and water meters.
Our valve has a stainless steel 304 body and ball, which are corrosion-resistant and suitable for sanitary applications. The 3 piece design allows for easy maintenance and replacement of the seals without removing the valve from the pipeline. The valve has a full port size of 2 1⁄2” or 3" BSP, which ensures minimal pressure drop and maximum flow rate.
The valve is operated by an electric actuator that can be powered by either 2 wire 24V DC or 3 wire 220V AC. The actuator has a non-auto return function, which means it requires power to open and power to close the valve. The actuator also has a manual override function, which allows you to operate the valve manually in case of power failure or emergency. The actuator has a feedback signal and a visual indicator that show the valve position and status.
The valve can be configured as either normally closed or normally open, depending on your preference and application. The valve has a fast opening and closing time of less than 13 seconds, which reduces the risk of water hammer and improves the efficiency of your system. The valve has a low working current of less than 0.85 Amps, which saves energy and reduces the load on your power supply. The valve has a high torque force of 100 N.m, which ensures a tight seal and prevents leakage.
The valve can withstand a maximum working pressure of 16 bar and a liquid temperature range of 2℃~90℃. The actuator has an aluminium alloy material that is lightweight and sturdy. The actuator also has an IP67 rating, which means it is dustproof and waterproof. The actuator has a standard ISO5211 F03, F05 , F07 connection that makes it compatible with most mounting brackets and accessories.
Our valve is manufactured according to our company quality management system ISO 9001:2015, which guarantees the quality and reliability of our products. We also offer a warranty and after-sales service for our customers. If you are interested in our valve or have any questions, please contact us today. We will be happy to assist you with your needs.
(A1000-Ball-Valve)
Technical Data
Port Size |
2 1/2" & 3” |
Valve Body Material |
Stainless Steel SS304 |
Maximum Working Pressure |
1.6 MPa (16 bar) |
Actuator Material |
Aluminium Alloy |
Manual Override & Open Close Indicator |
Yes |
Max. Torque Force |
100 N.m |
Working Voltage |
DC 24V (2 Wire), AC 220V (3 Wire) |
Environment Temperature |
-15℃~50℃ |
Wiring Control Methods |
CR201W, CR301W |
Liquid temperature |
2℃~90℃ |
Working Current |
≤850mA |
Connection Standard |
ISO5211 F03, F05 , F07 |
Open/Close time |
≤13S |
Company Quality Management System |
ISO 9001:2015 |
Lifetime |
10000 times ( testing pressure is 0.4MPa, medium is water ) |
Protection Class |
IP67 |
Construction Diagram

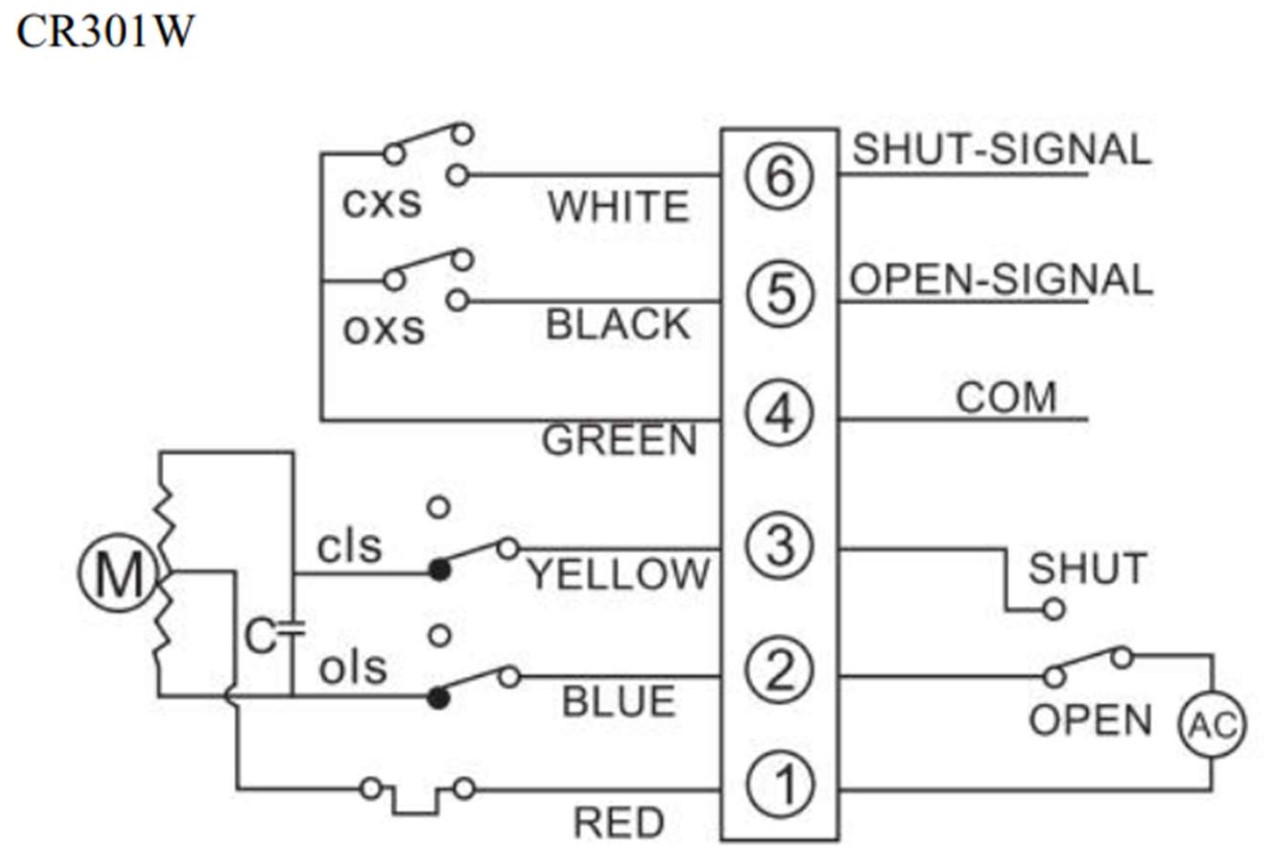

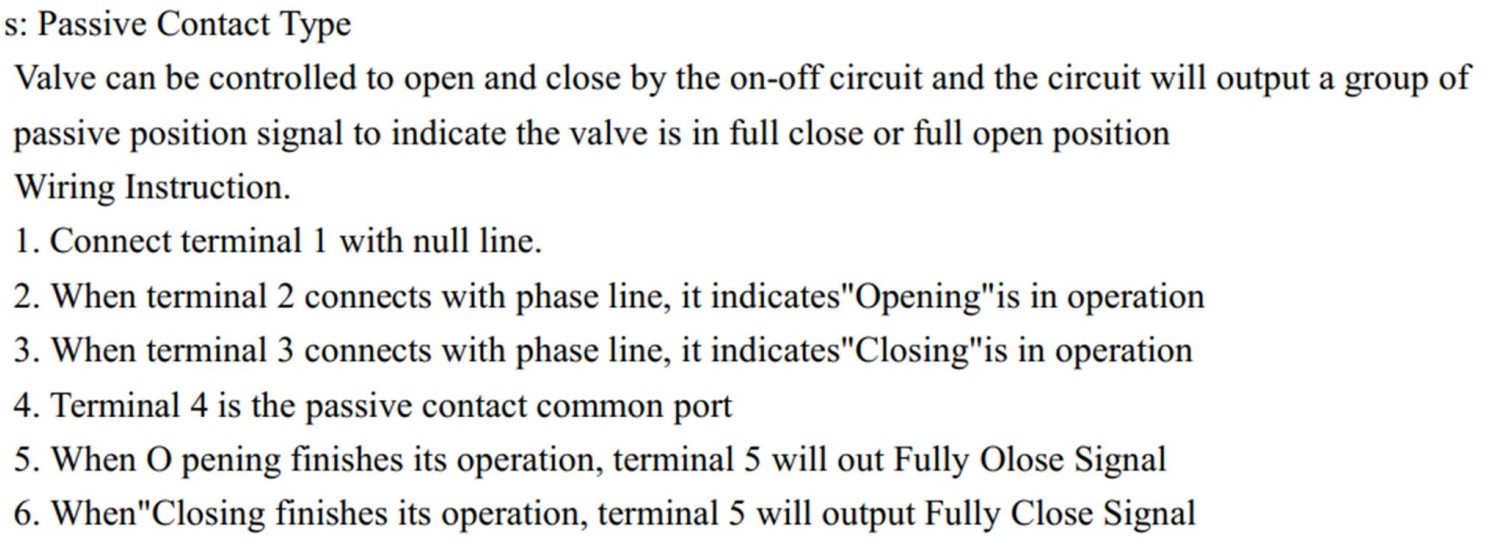

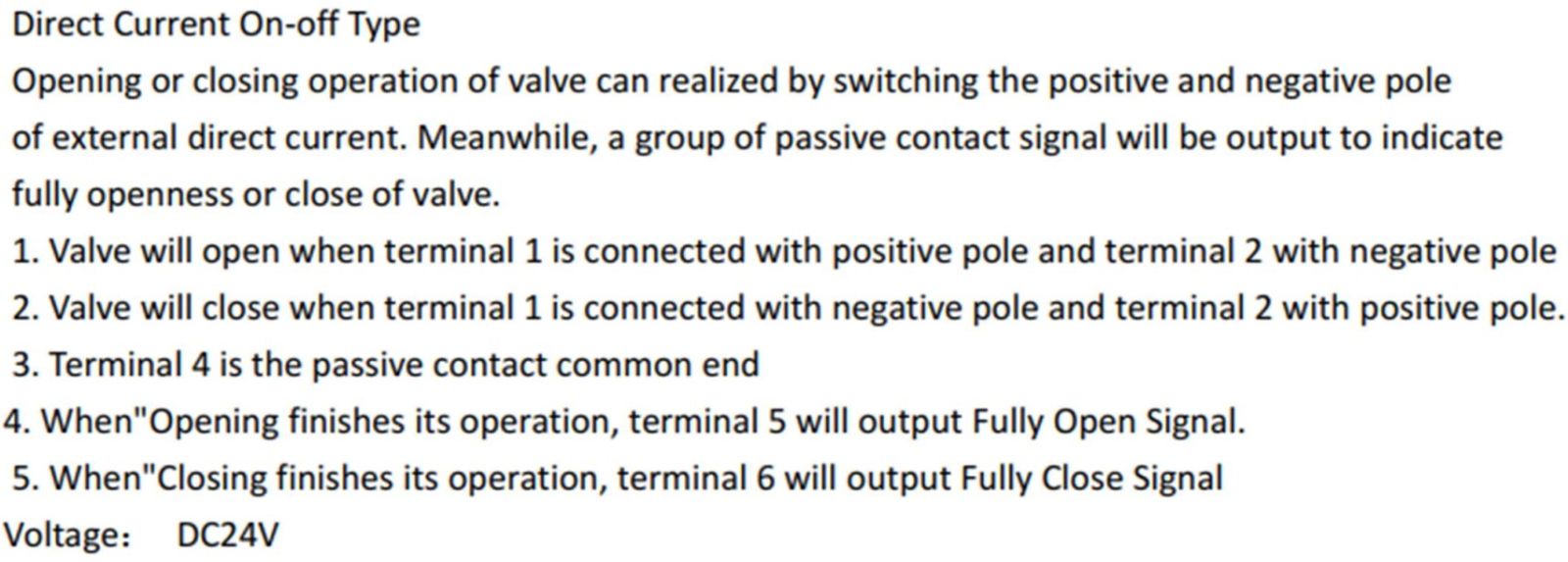

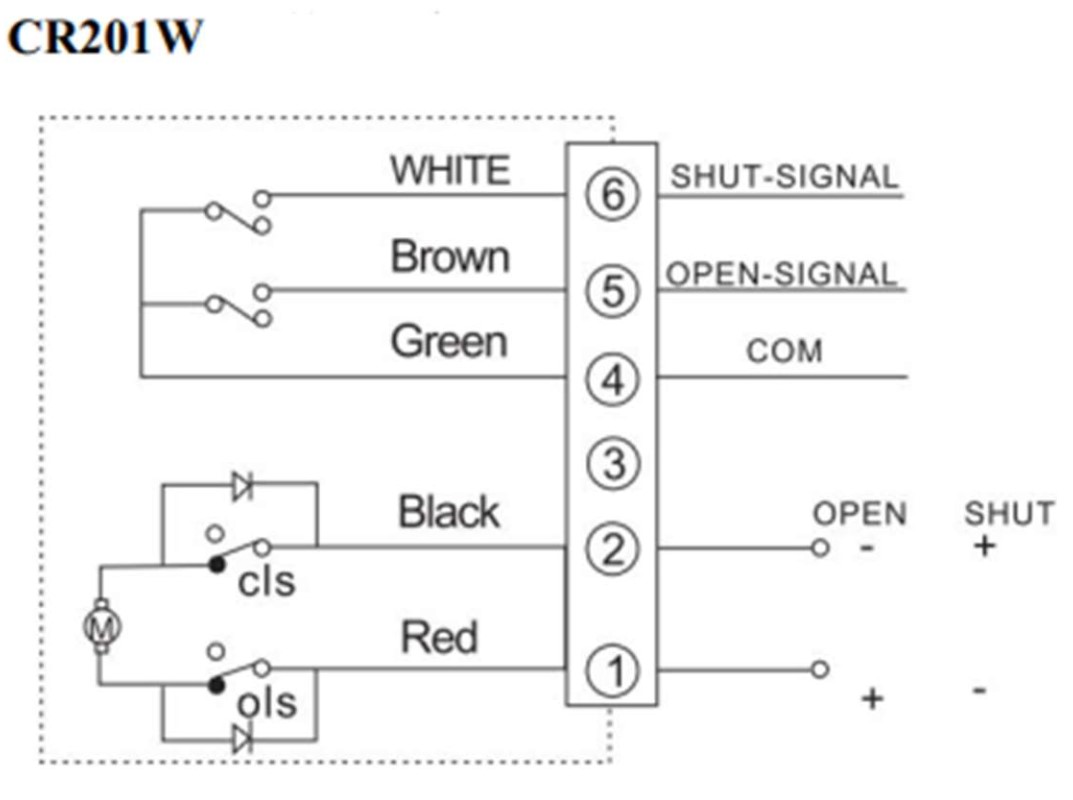

Wiring Diagrams
