MS-PS | Brass Adjustable Pressure Switch with SPDT
- Port Size(inch): 1/8", 1/4"
- Electric contact: SPDT
- Environment temperature: -40°C to +120°C
- Body Material: Brass
AU $60.00

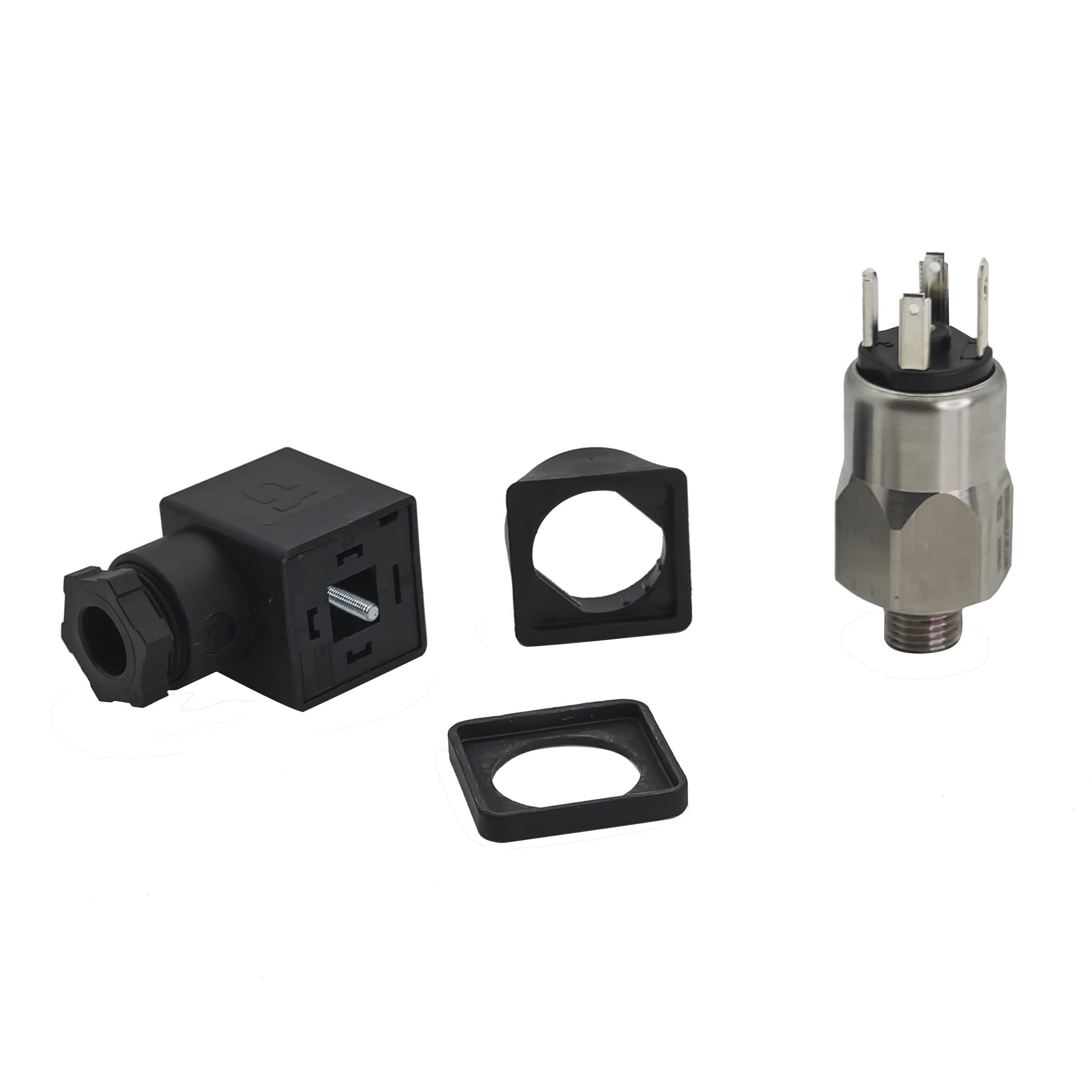

Designed by and manufactured exclusively for Applications Engineering, the BPA/BPF high pressure switch range offers exceptional value for money matched with a proven quality.This range of single pole double throw type high pressure switch is available with adjustment ranges 0.35 - 5.8 bar, 4.5 - 21 bar, 8.6 - 41 bar, 35 - 172 bar, 69 - 414 bar & 35 - 241 bar and comes in a format that is familiar to customers but has many different options for those with specific requirements including body materials, electrical contacts and thread types. Standard models are supplied complete with DIN 43650A electrical connector.These high quality SPDT vacuum switches are manufactured in Italy for Applications Engineering Ltd, we can offer unbeatable pricing for OEM’s and volume customers so please give us a call to discuss your requirements.
(BPA-SST)
ADJUSTMENT RANGE | 0.35 - 5.8 bar, 4.5 - 21 bar, 8.6 - 41 bar, 35 - 172 bar, 69 - 414 bar & 35 - 241 bar |
---|---|
SWITCH RATING | 12/24V DC & 125V/240V AC @ 5A |
SWITCH TYPE | Single pole double throw |
DIAPHRAGM/PISTON MATERIAL | Nitrile, EPDM or Viton as standard (other options available on request) |
BODY MATERIAL | 316 S/S |
