Size | 1/8" |
Function | 3 Way NC |
Valve Operation | Direct Operated |
Body Material | Brass |
Seal | NBR |
Pressure Range | • See technical info • Valves for pressure higher than 25 bar cannot be supplied with manual override |
Media | Air, water, oil |

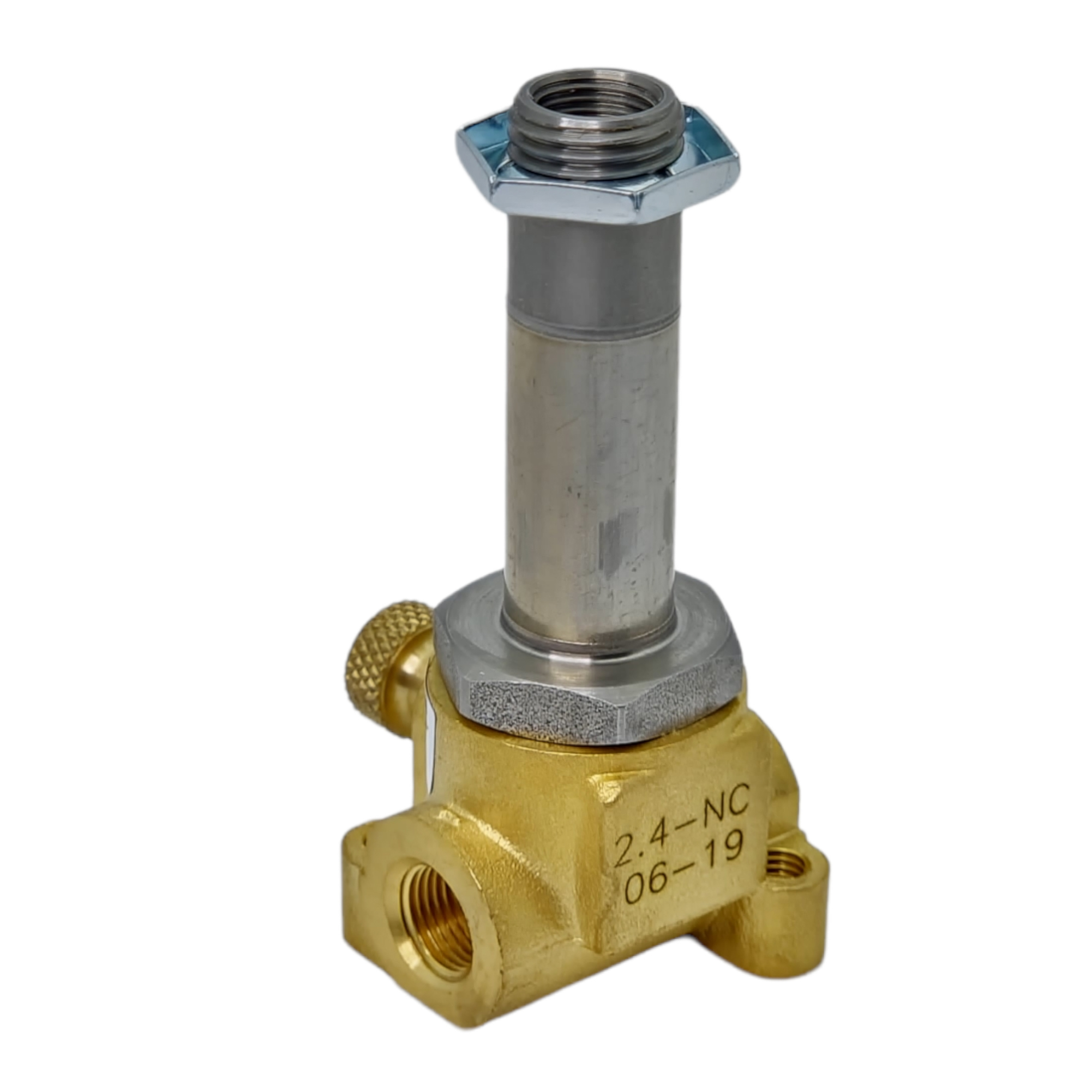

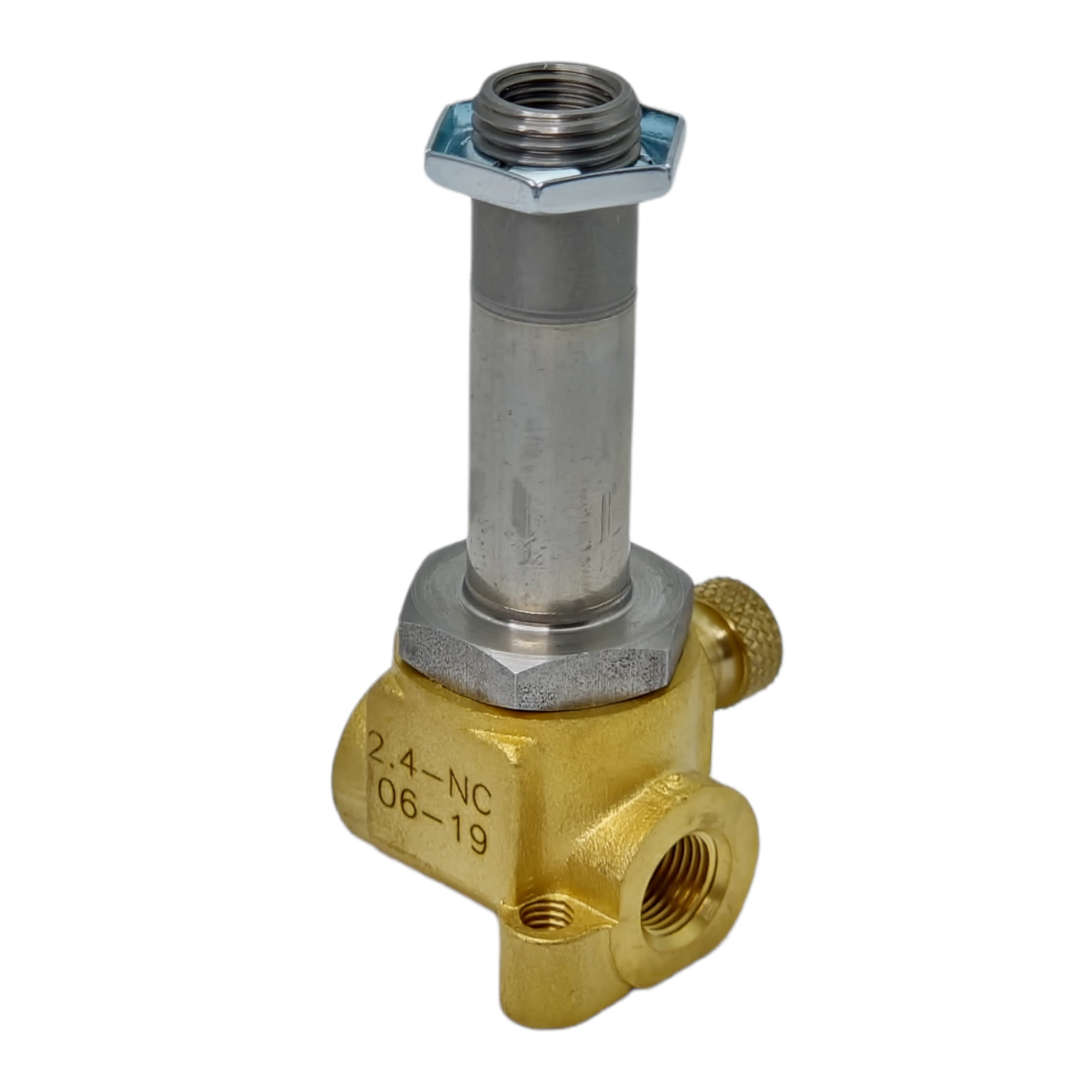

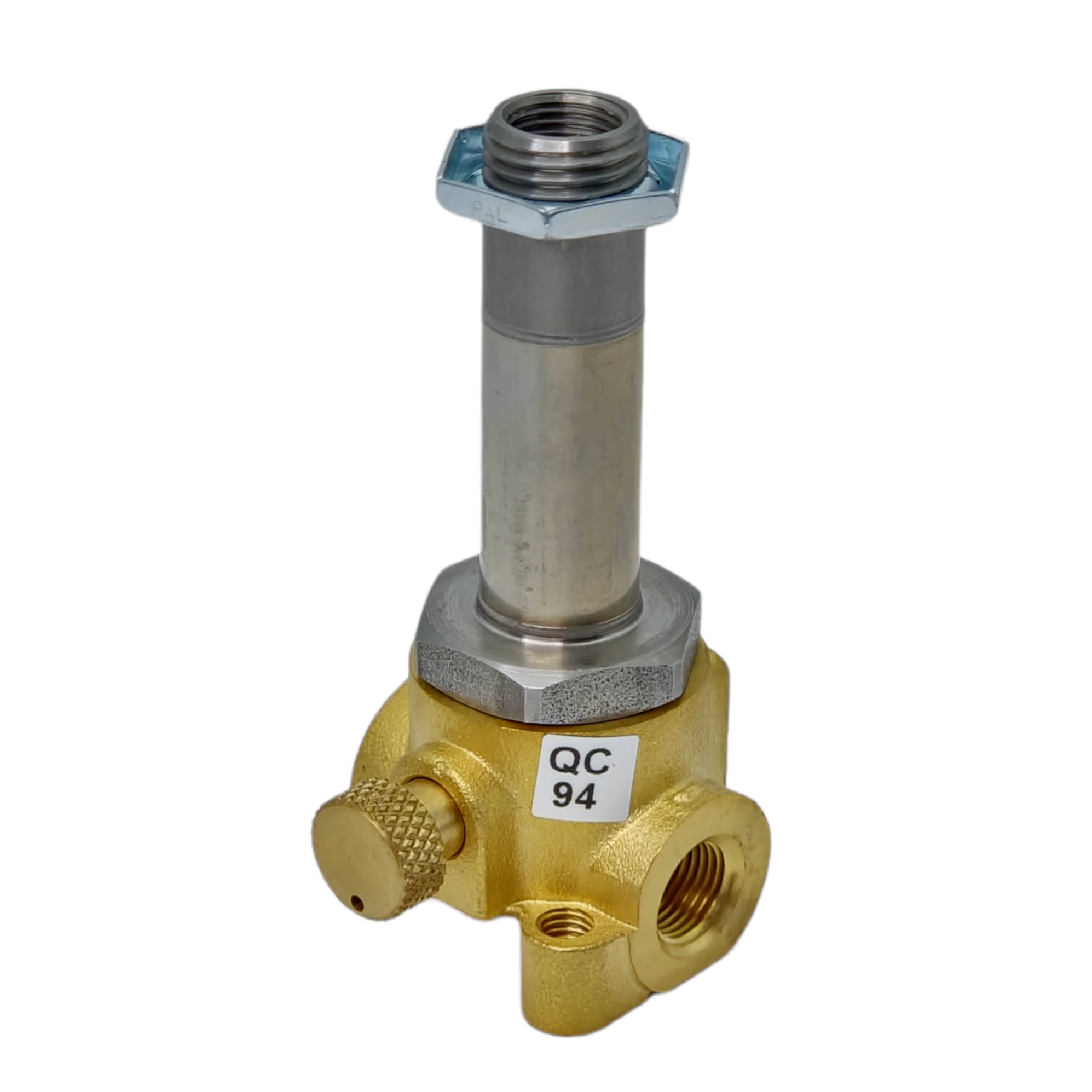

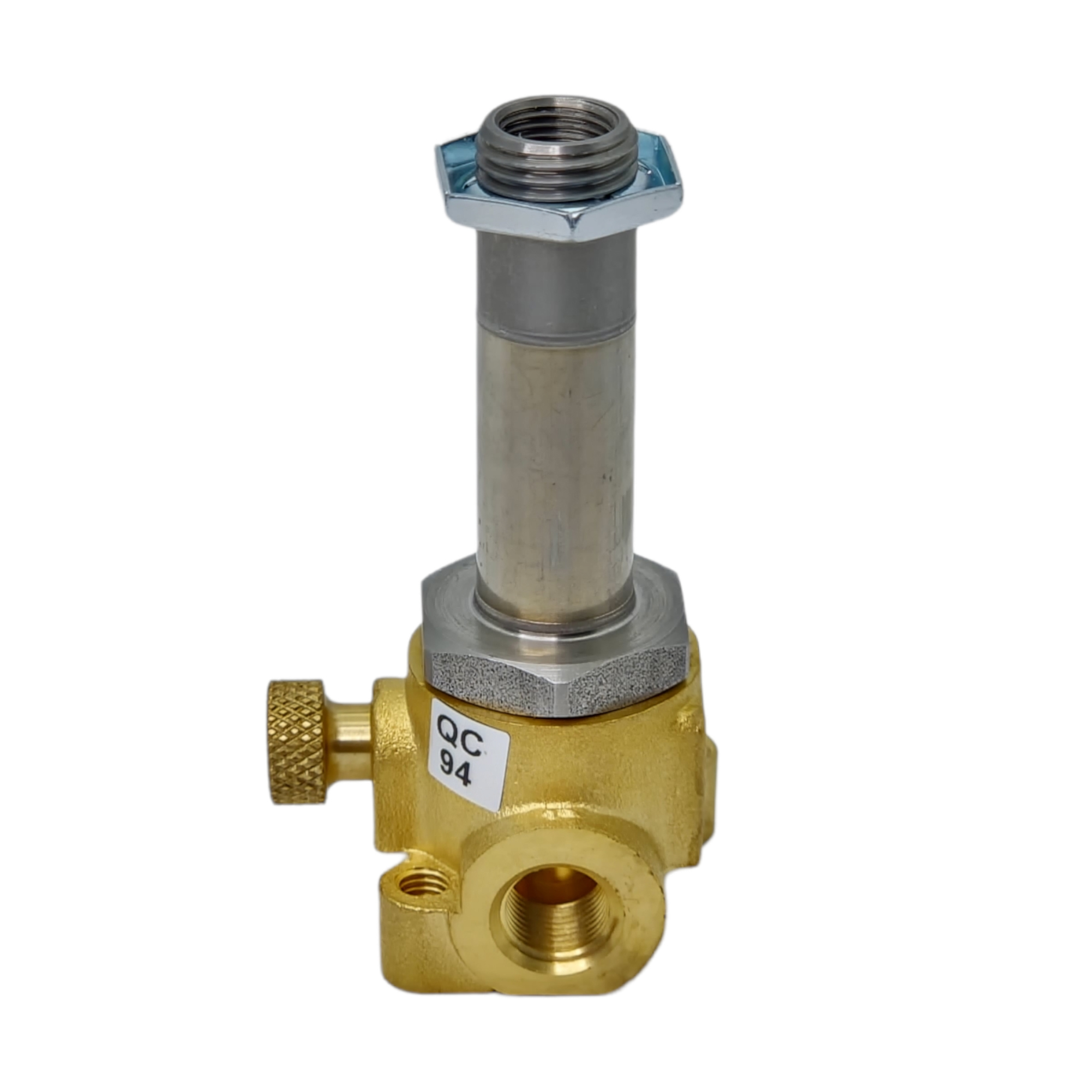

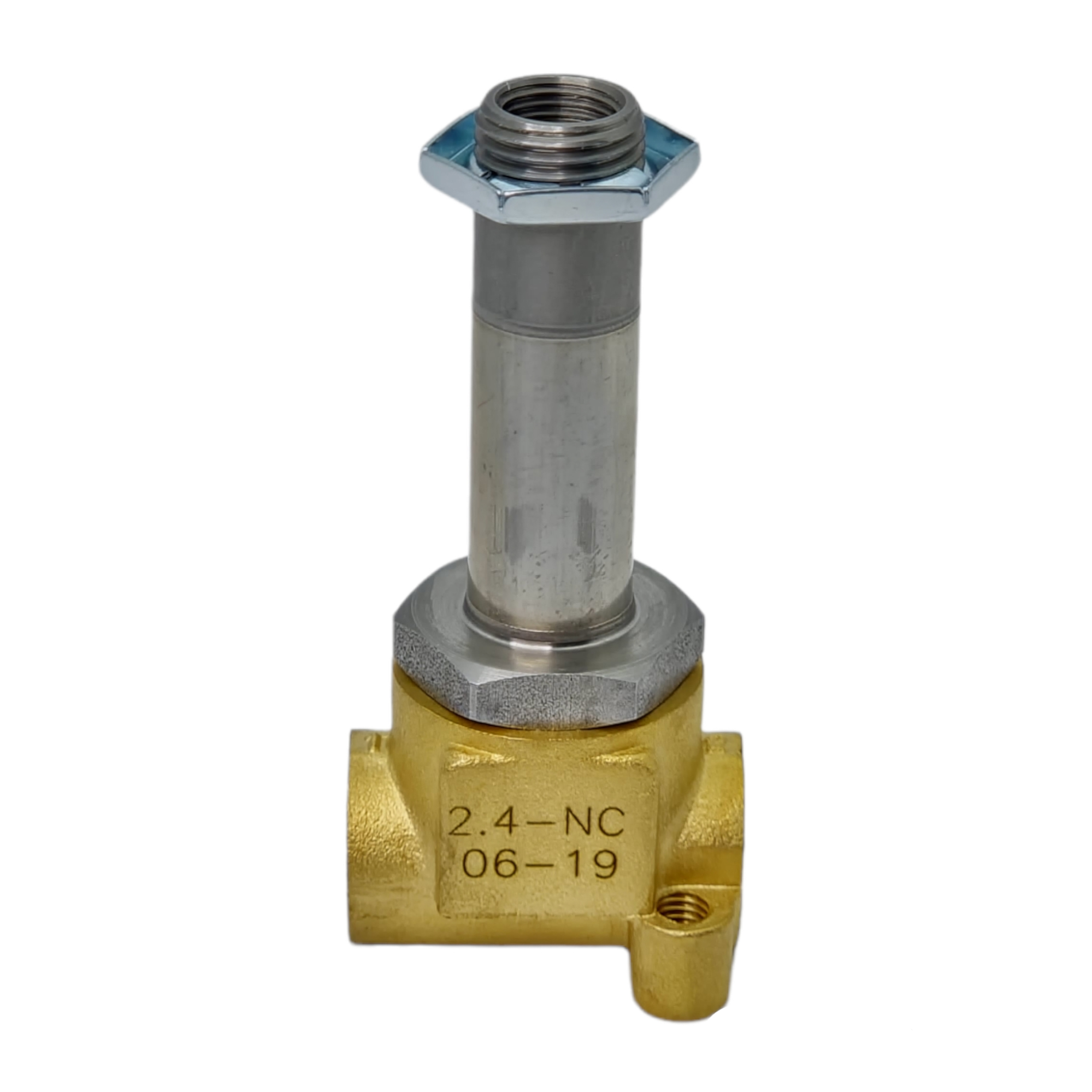

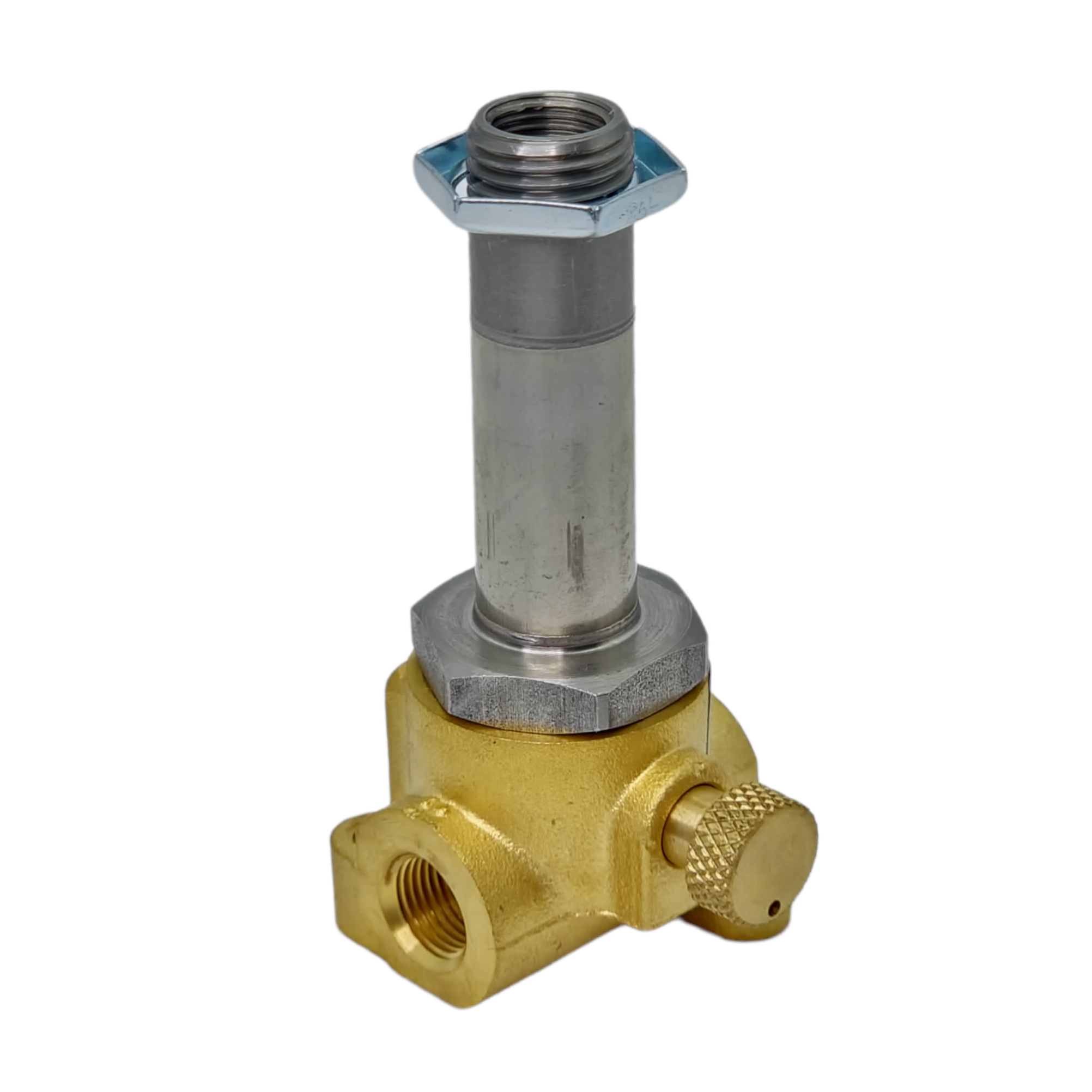

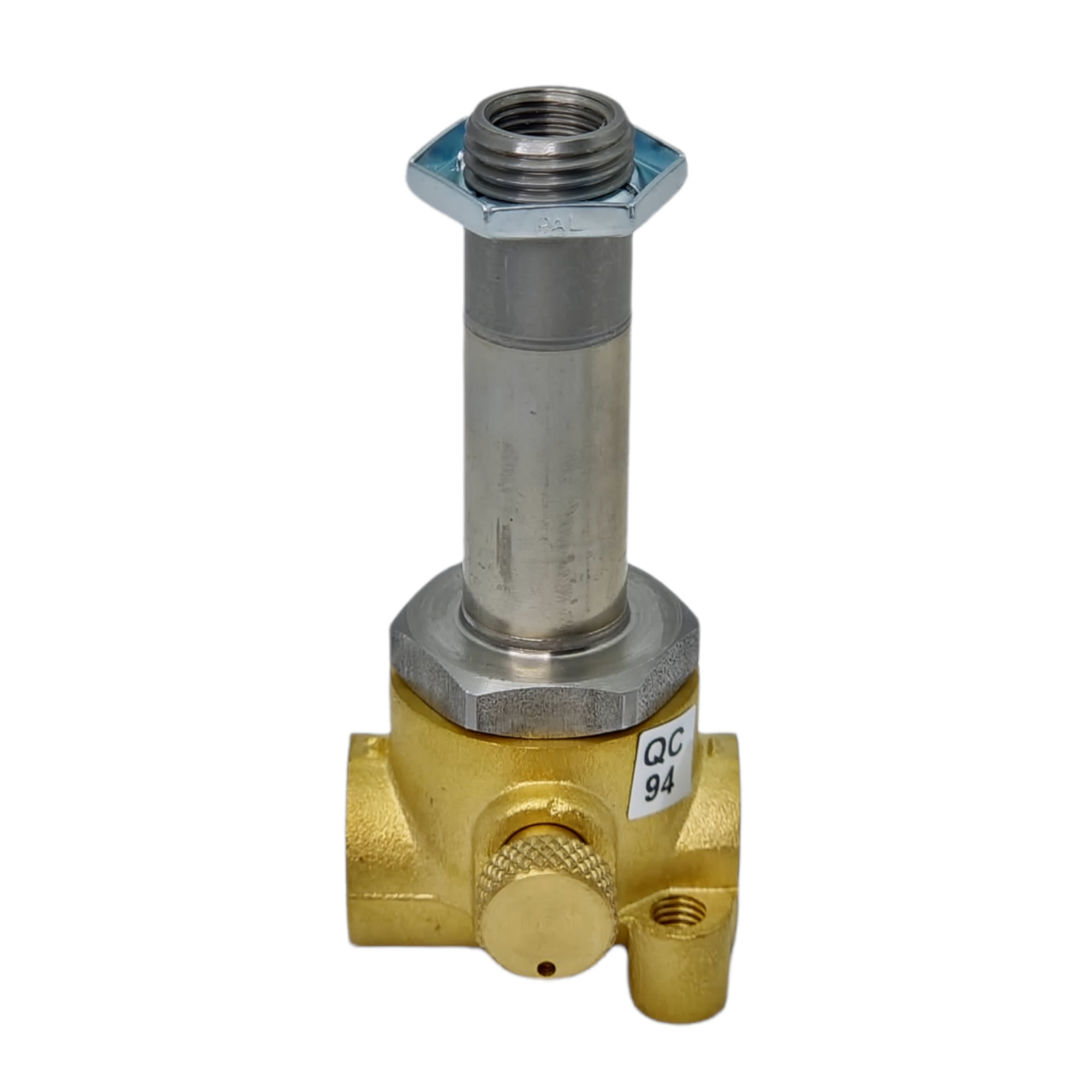

(GEM-A-21035N3)
Technical Data
Function | 3 Way NC |
Ports size | 1/8" |
Orifice size | 2.4mm |
Pressure range | • See table • Valves for pressure higher than 25 bar cannot be supplied with manual override |
Kv (l/min) | See table |
Temperature range | Fluid : -10ºC to 80ºC (no freezing) Ambient : -10ºC to 50ºC |
Materials in contact with media |
Manual override: Plastic, Brass screw or Brass finger knob (1) Plastic manual override : Maximum pressure : 16 bar (2) Manual override is unavailable in 2W NO through base applications Main Valve: Brass Solenoid Operator: Stainless Steel AISI 300 & 400 series Seals: NBR |
Media | Air, water, oil |
Coil voltage | • Voltage and power consumption - see table • All Baccara coil voltages are ± 10% of nominal |
Standard protection class | IP65 with connector * Option : IP68 (please refer to GEM-BP Coil) |
• Latch valves are available upon request
Max. Pressure (bar) 3W NC table
Coil Current/Power |
Orifice (mm) | |||||
2 4mm | ||||||
ADC * | 8 | |||||
AC/8W DC/10W | 10 | |||||
AC/5 5W,DC/5 5W | 8 | |||||
AC/2 5W,DC/35W | 6 | |||||
Flow factor Kv(l/min) | 30 |
* ADC valves are only suitable for use with AC8W or DC10W coils
