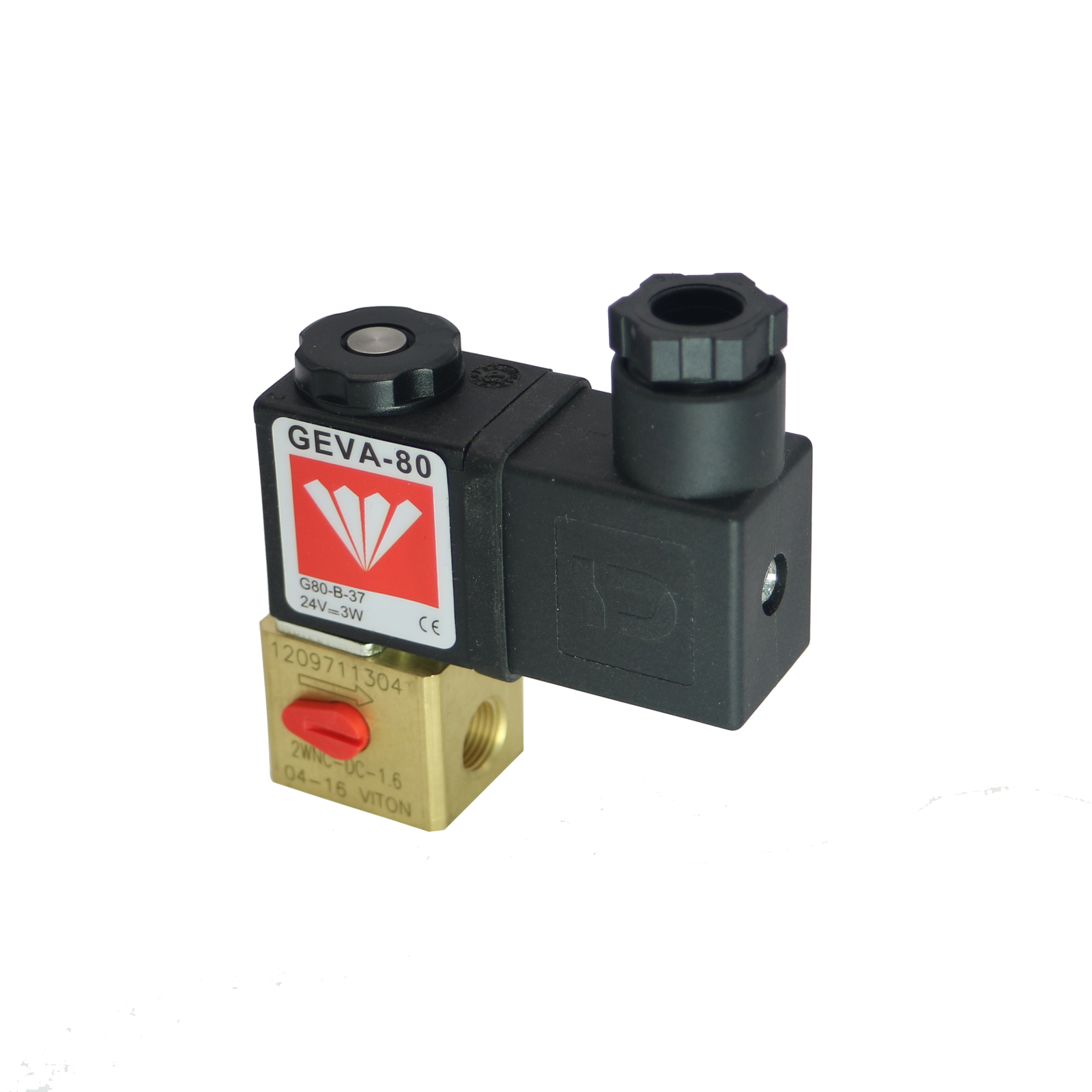

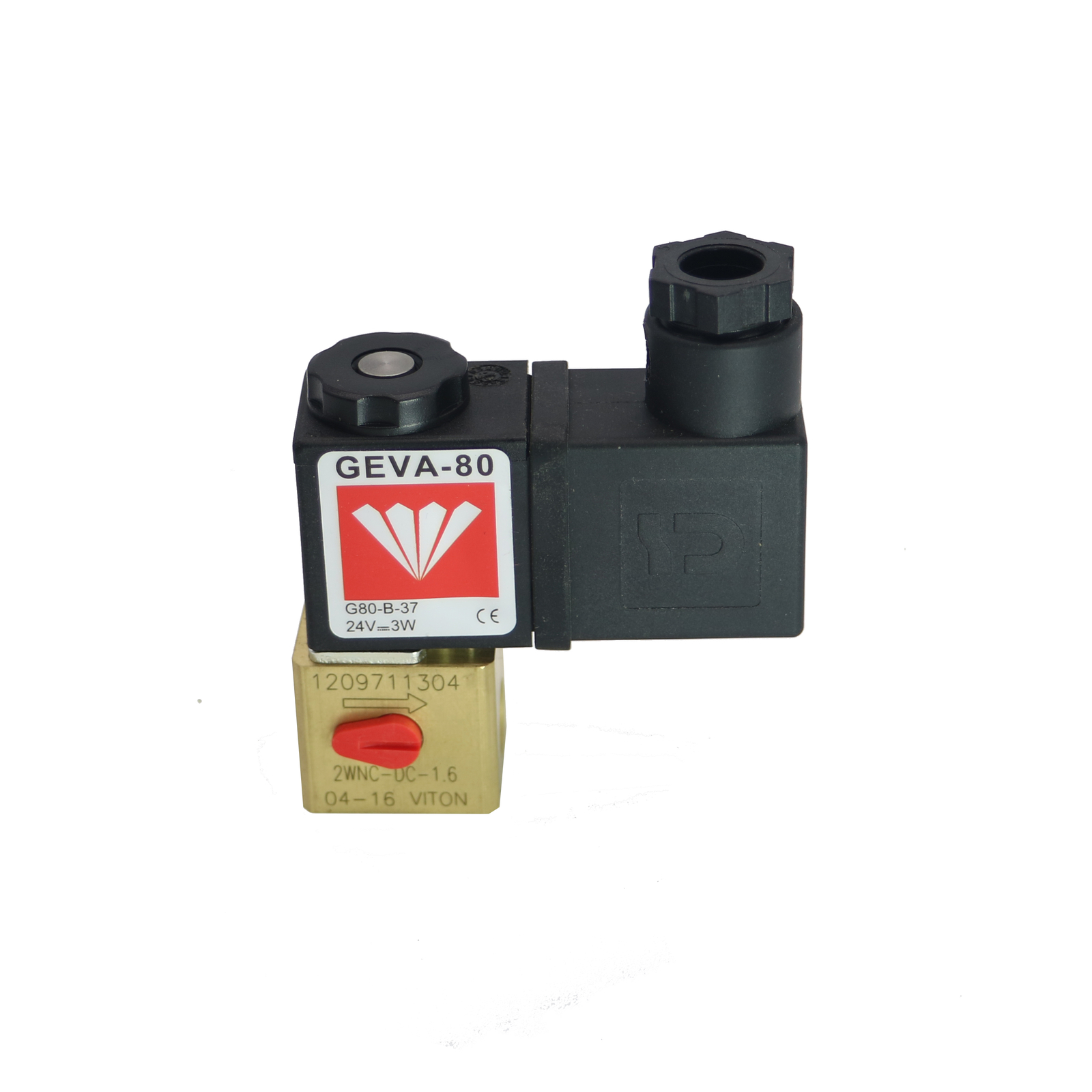

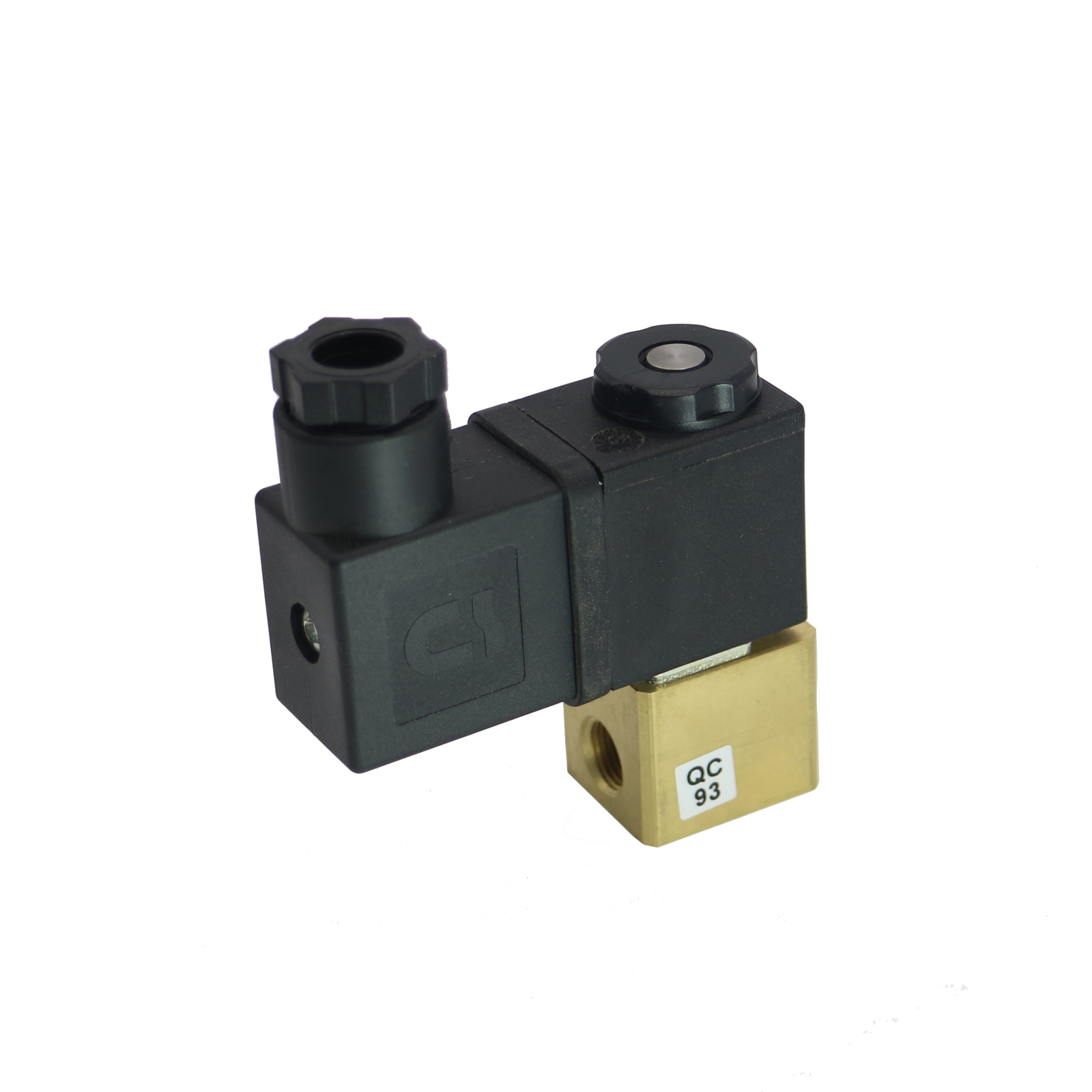

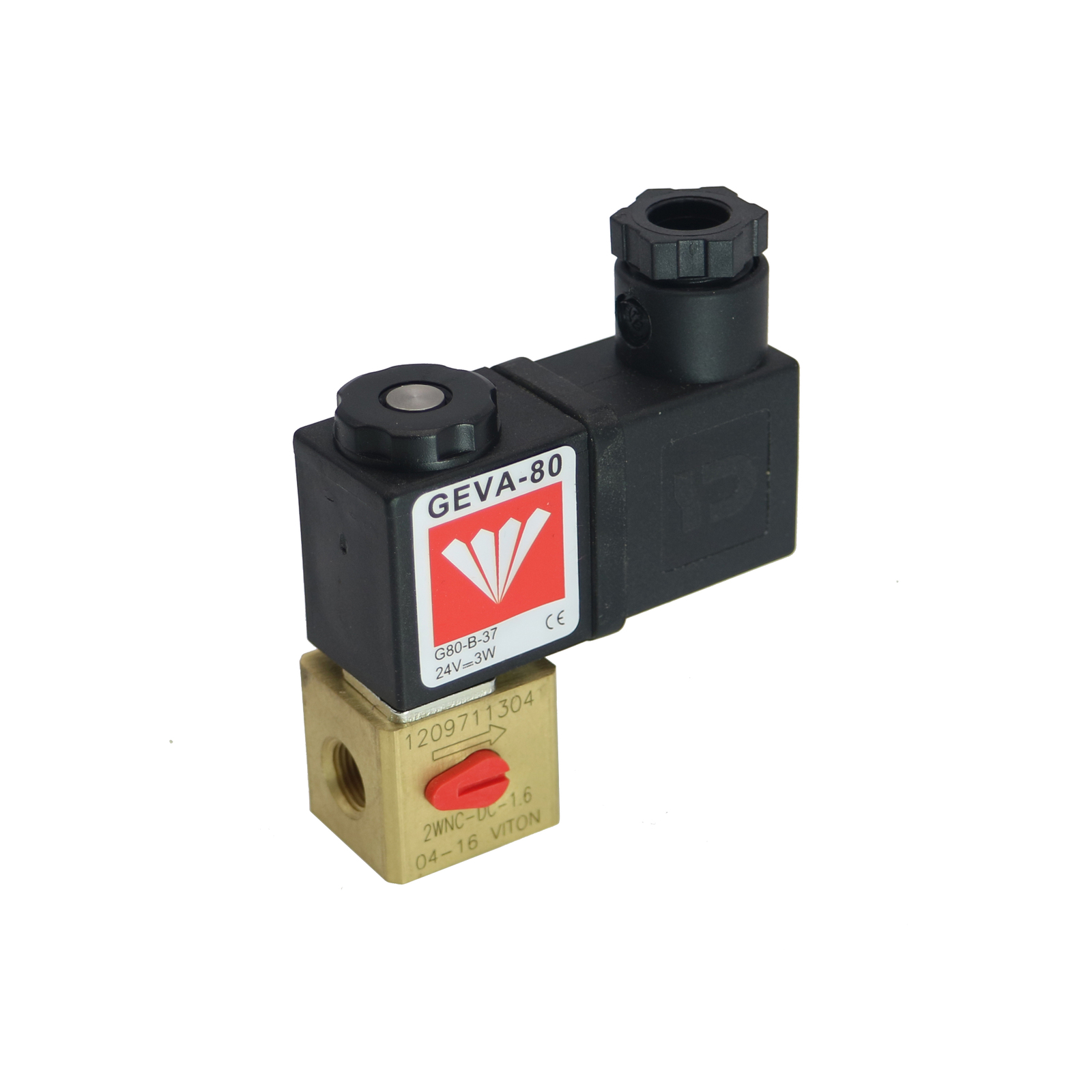

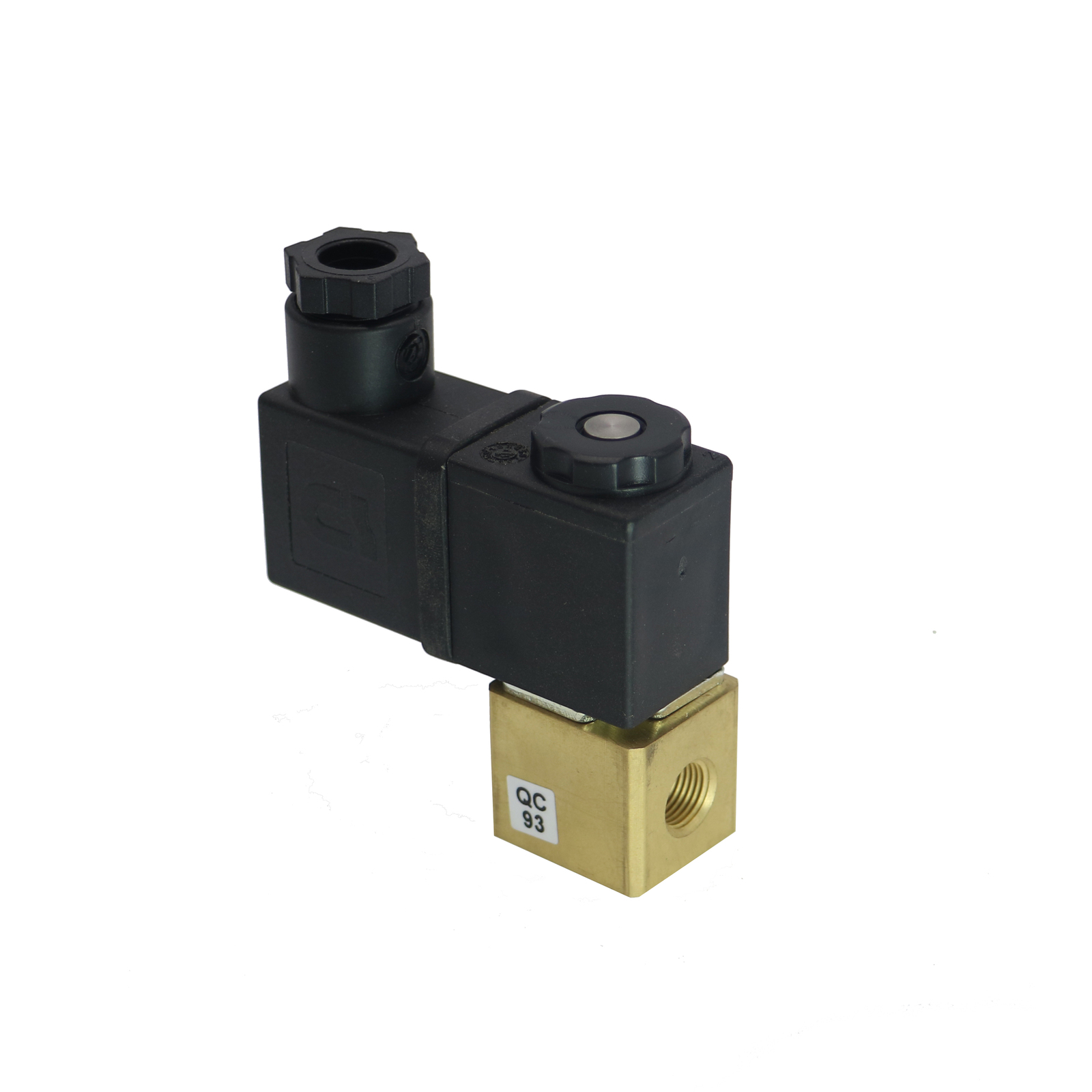

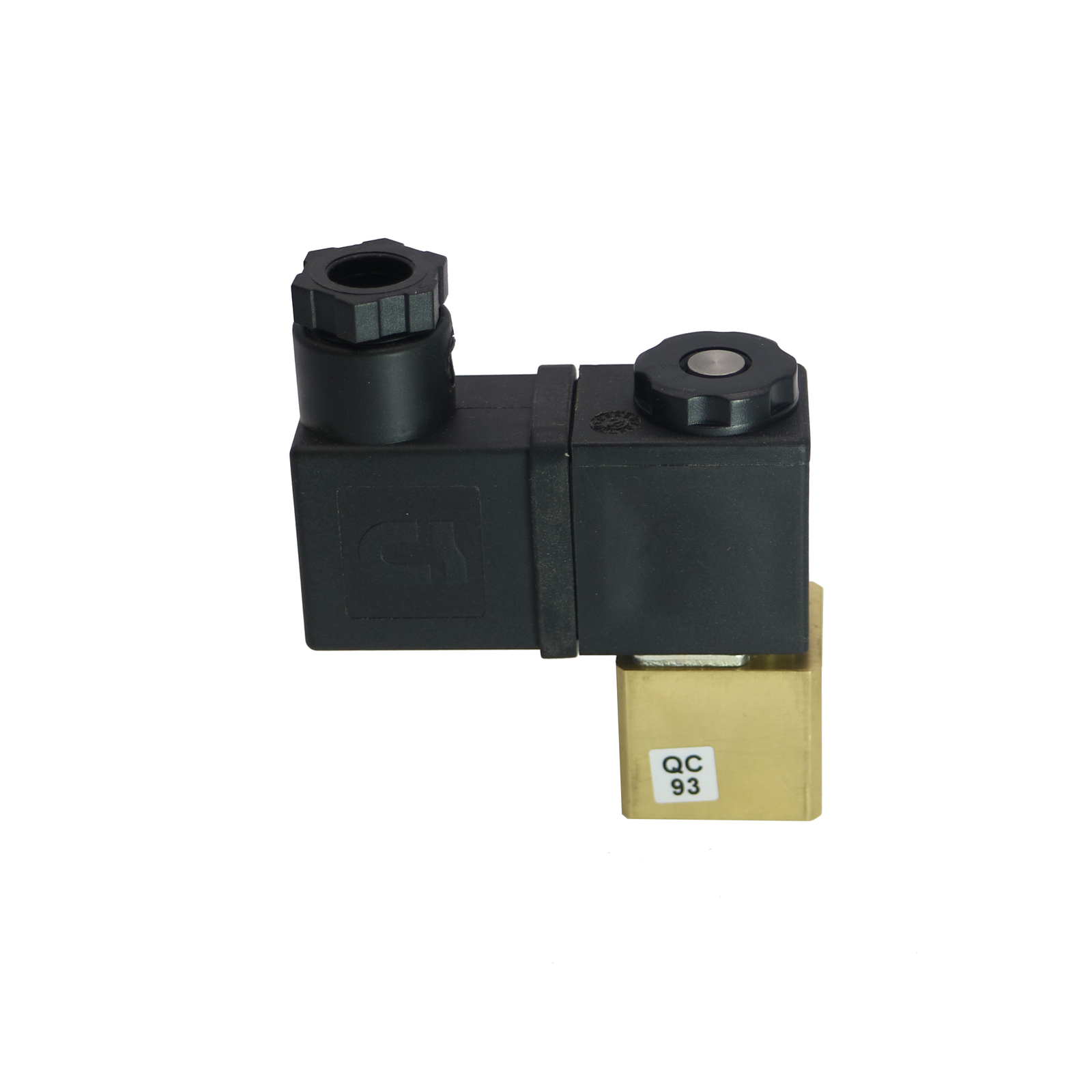

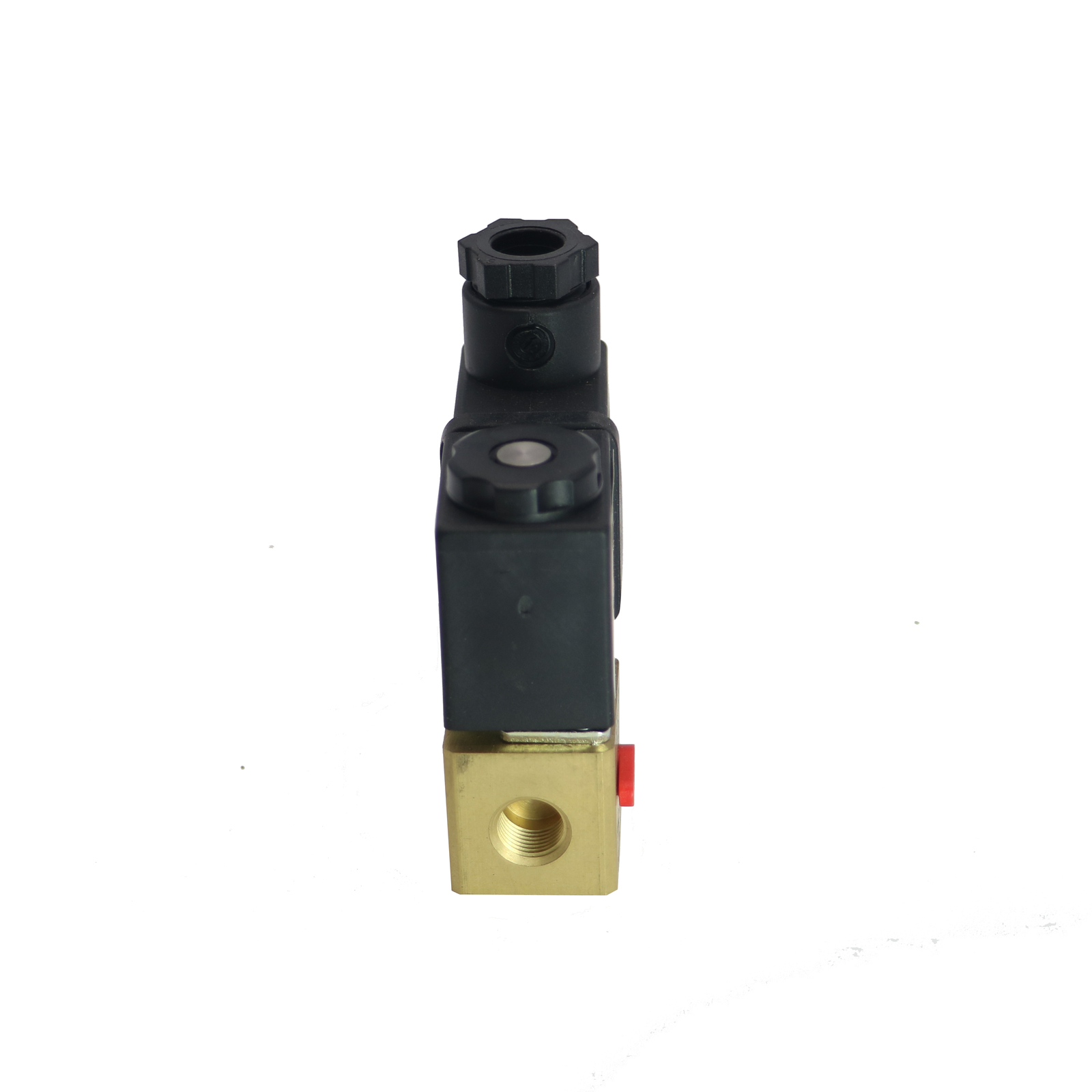

G80-A | General Purpose Direct Acting Aluminium M
- Port Size: 1/8″ BSP
- Function: 2 Way NC & NO, 3 Way NC & NO
- Orifice Size: 1 – 3 mm
- Pressure Range: 2.5 - 40 bar
AU $98.60
Size | 1/8" BSP |
Function | 2 Way 3 Way NC, NO |
Valve Operation | Direct Operated |
Body Material | Brass |
Seal | NBR, FKM (Vition), EPDM |
Pressure Range | See technical data • Valves for pressure higher than 12 bar cannot be supplied with manual override |
Media | Air, water, oil |
(G80-A-BRASS)

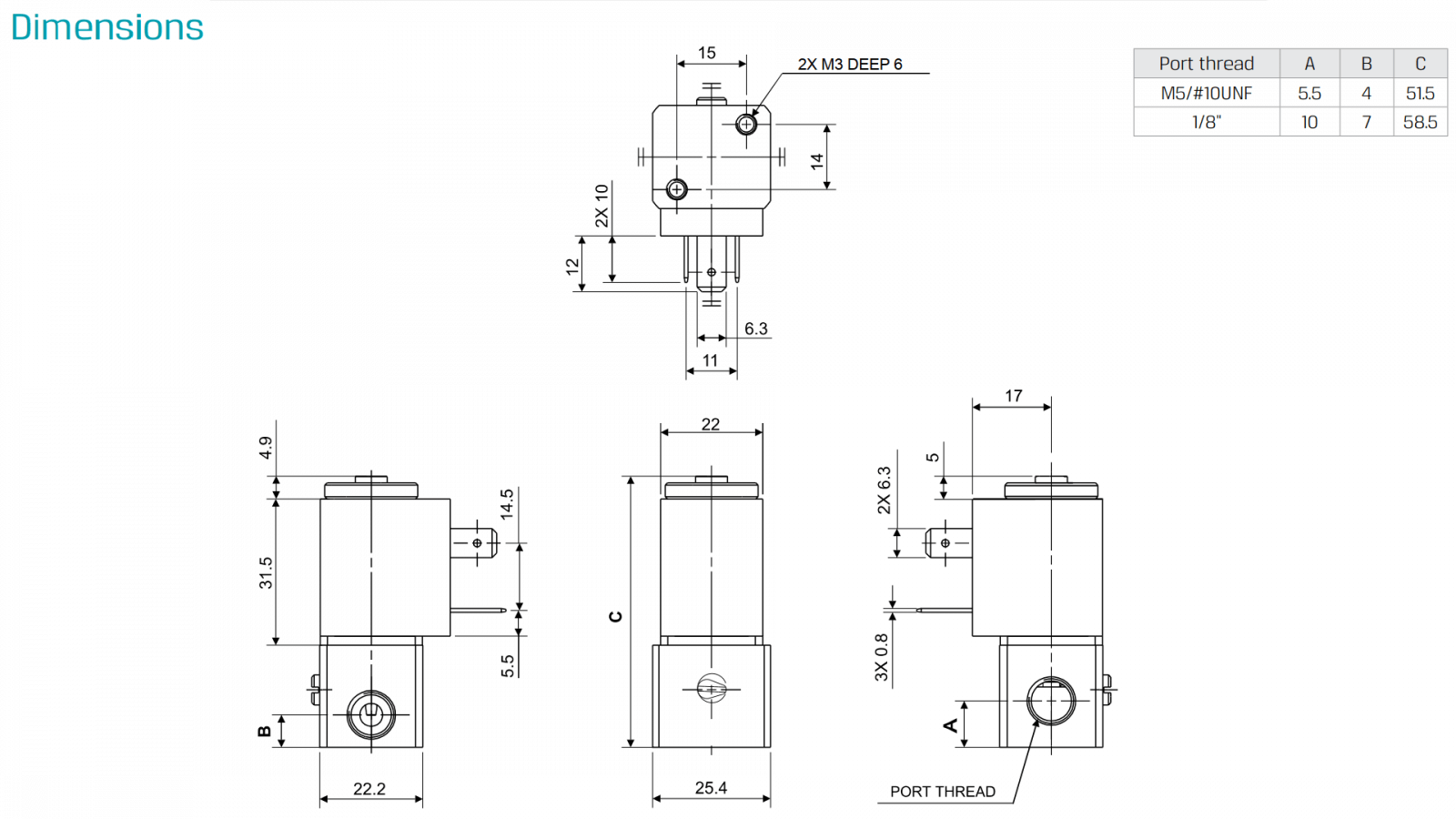

Technical Data
Function | 2 Way 3 Way NC, NO |
Ports size | 1/8" BSP, NPT, #10UNF, M5 |
Orifice size | See table |
Pressure range | • See table • Valves for pressure higher than 12 bar cannot be supplied with manual override |
Kv (l/min) | See table |
Temperature range | Fluid : -10ºC to 80ºC (no freezing) Ambient : -10ºC to 50ºC |
Materials in contact with media |
Manual override: Plastic * Maximum pressure : 16 bar Main Valve: Brass Solenoid Operator Stainless Steel AISI 300 & 400 series, Brass Seals: NBR, FKM, EPDM, FFKM |
Media | Air, water, oil |
Coil voltage | • Voltage and power consumption - see table • All Baccara coil voltages are ± 10% of nominal |
Standard protection class | IP65 with connector |

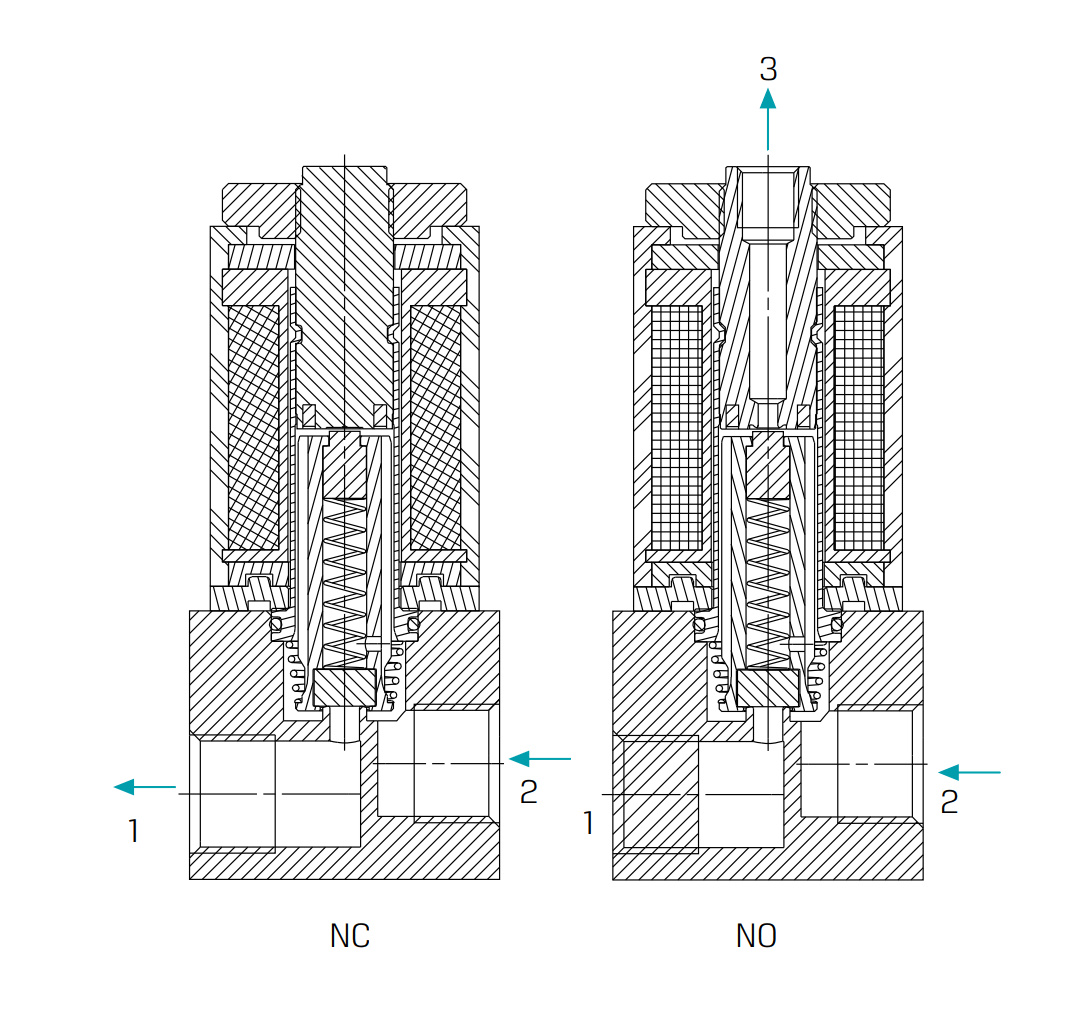

Max. Pressure (bar) 2W NC table
Coil Current/Power |
Orifice (mm) | |||||
1.0 | 1.2 | 1.6 | 2.0 | 2.4 | 3.0 | |
AC - 7.5W | 40 | 35 | 35 | 12 | 10 | 8 |
AC - 4W | 40 | 30 | 15 | 8 | 6 | 5 |
DC - 6.5W | 40 | 35 | 20 | 12 | 10 | 7 |
DC - 3W | 40 | 30 | 15 | 5 | 4 | 2.5 |
Flow factor Kv(l/min) | 0.5 | 0.65 | 1.2 | 1.6 | 2 | 2.6 |
Max. Pressure (bar) 2W NO table
Coil Current/Power |
Orifice (mm) |
|
1.2 | 1.6 | |
AC - 4W | 15 | 10 |
DC - 3W | 15 | 10 |
Flow factor Kv(l/min) | 0.4 | 0.7 |

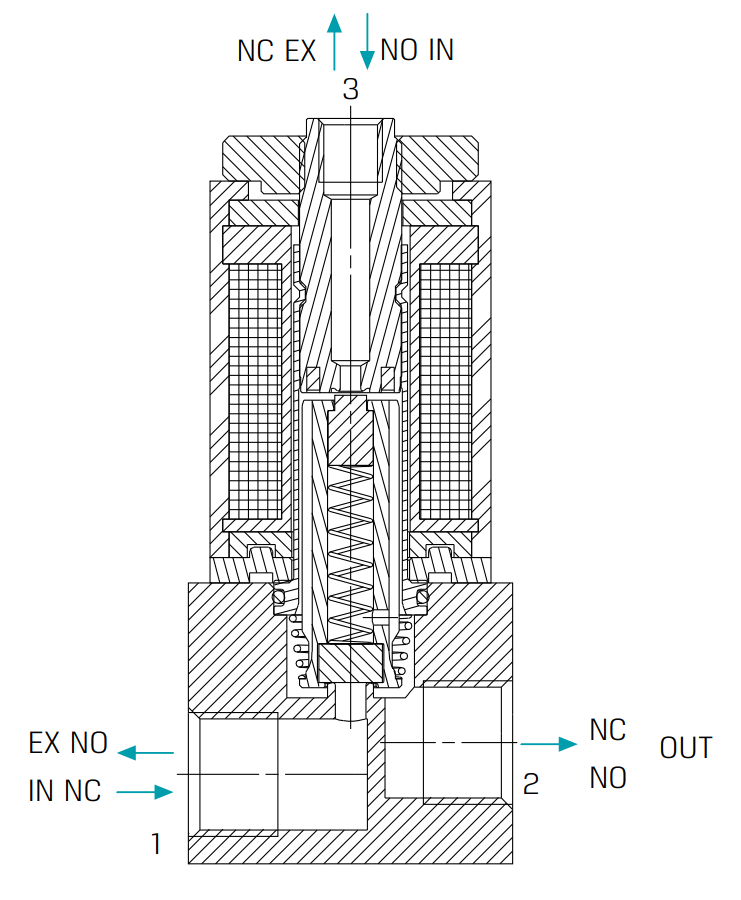

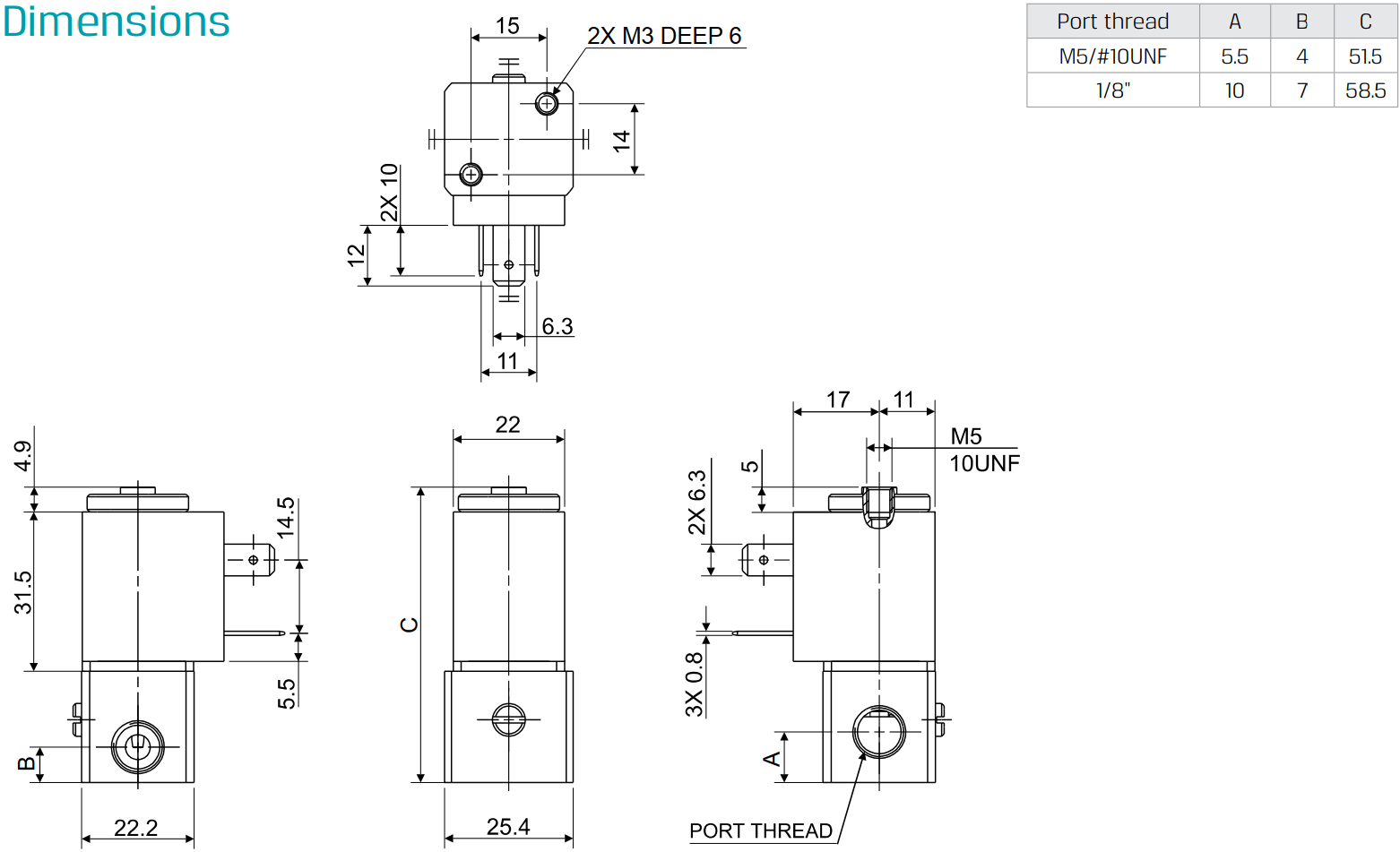

Max. Pressure (bar) 3W NC table
Coil Current/Power |
Orifice (mm) | ||
1.0 | 1.2 | 1.6 | |
AC - 7.5W | 15 | 12 | 10.5 |
AC - 4W | 12 | 10 | 7 |
DC - 6.5W | 15 | 12 | 10.5 |
DC - 3W | 12 | 10 | 7 |
Flow factor Kv(l/min) | 0.5 | 0.65 | 1 |
Max. Pressure (bar) 3W NO table
Coil Current/Power |
Orifice(mm) | |
1.2 | 1.6 | |
AC - 7.5W | 12 | 8 |
AC - 4W | 10 | 7 |
DC - 6.5W | 12 | 8 |
DC - 3W | 10 | 6 |
Flow factor Kv(l/min) | 0.4 | 0.7 |
Voltage & Power Consumption
• Available options
