G80-A | General Purpose Direct Acting Aluminium M
- Port Size: 1/8″ BSP
- Function: 2 Way NC & NO, 3 Way NC & NO
- Orifice Size: 1 – 3 mm
- Pressure Range: 2.5 - 40 bar
AU $98.60
Size | 1/8", 1/4" BSP |
Function | 2 Way NC, NO |
Valve Operation | Direct Operated |
Body Material | Brass |
Seal | NBR |
Pressure Range | See technical data • Higher pressures are available |
Media | Air, water, oil |

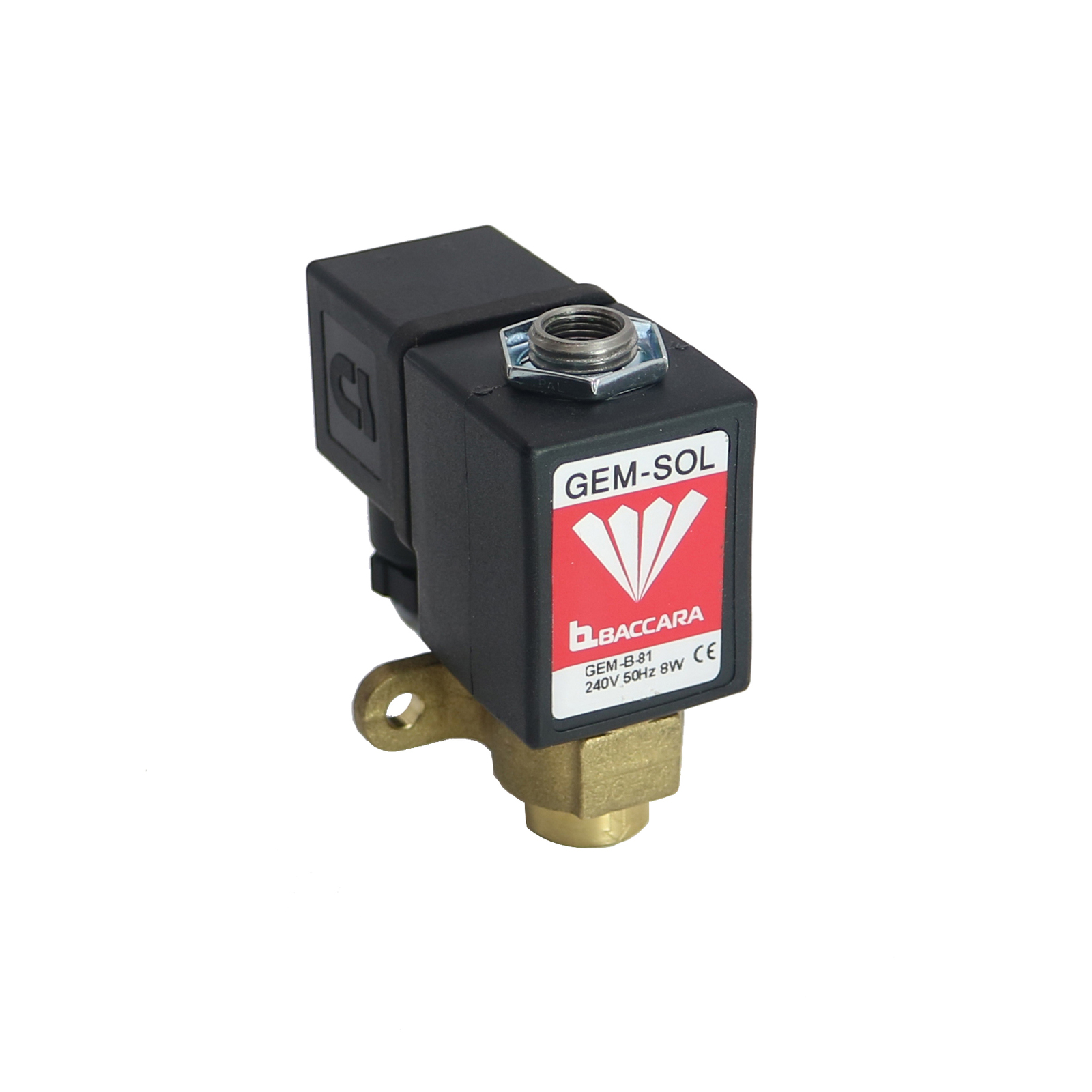

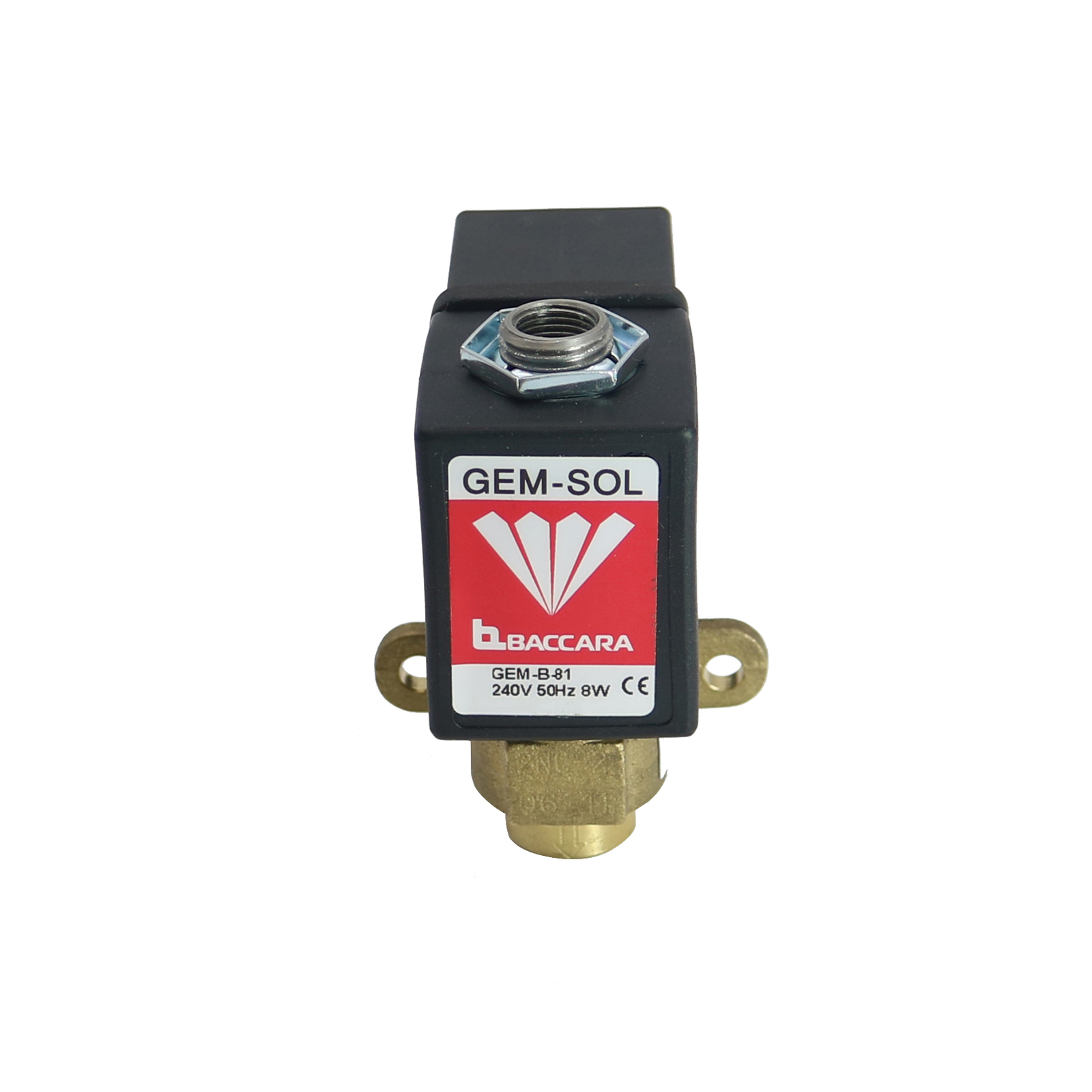

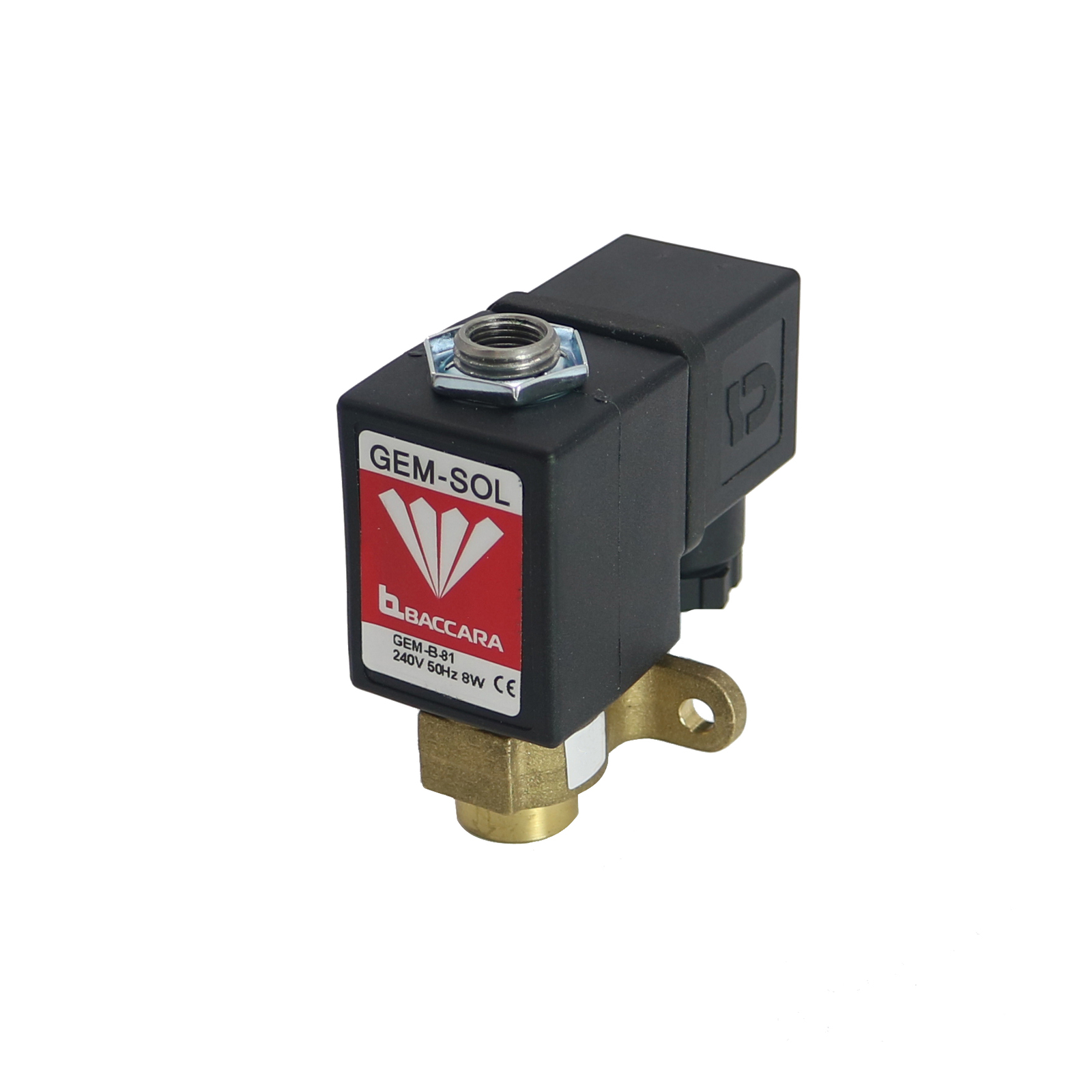

(GEM-I-2W-BRASS)
Technical Data

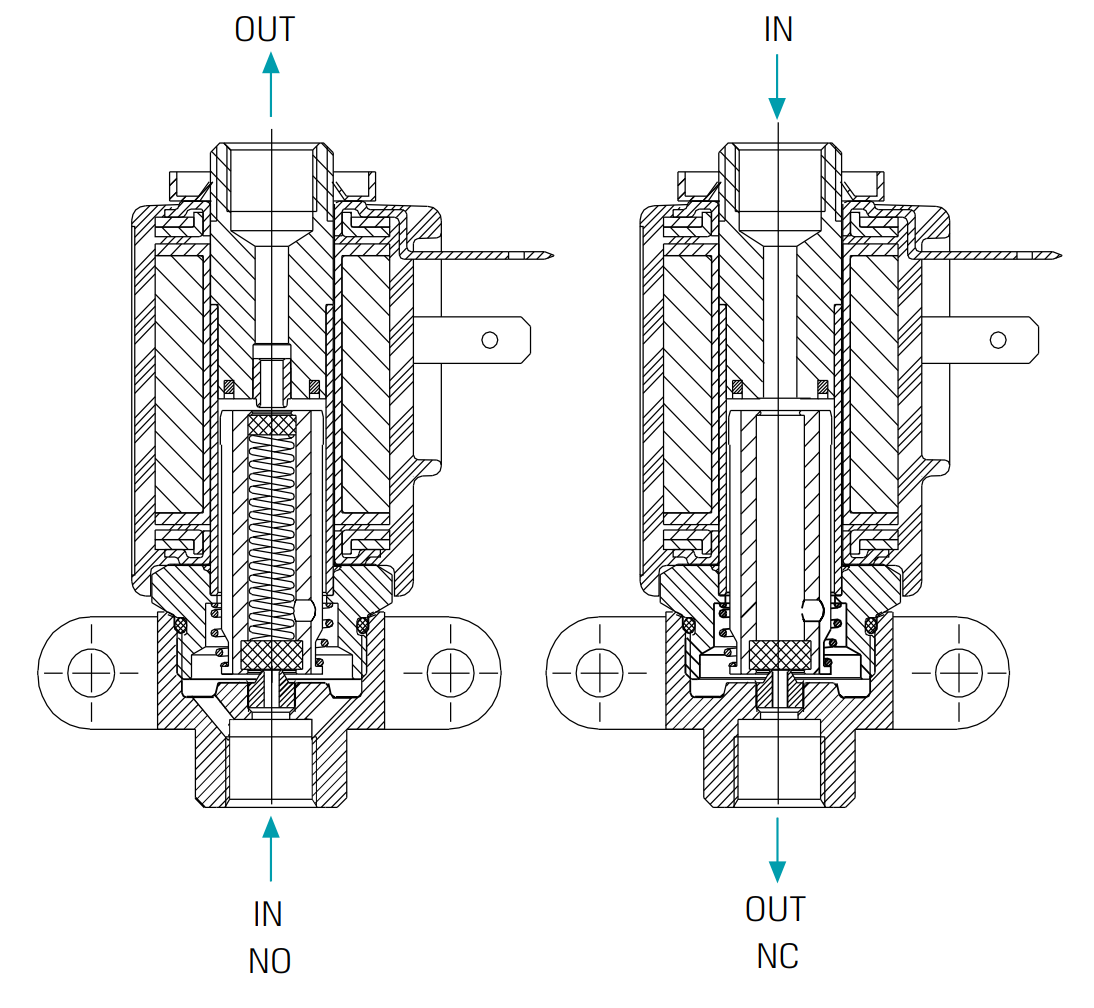

Function | 2 Way NC, NO |
Ports size | 1/8", 1/4" BSP & NPT |
Orifice size | See table |
Pressure range | See table • Higher pressures are available |
Kv (l/min) | See table |
Temperature range | Fluid : -10ºC to 80ºC (no freezing) Ambient : -10ºC to 50ºC |
Materials in contact with media |
Main Valve: Brass Solenoid Operator: Stainless Steel AISI 300 & 400 series Seals: NBR, FKM, EPDM |
Media | Air, water, oil |
Coil voltage | • Voltage and power consumption - see table • All Baccara coil voltages are ± 10% of nominal |
Standard protection class | IP65 with connector * Option : IP68 (please refer to GEM-BP Coil) |
• Latch valves are available upon request.
Max. Pressure (bar) 2W NC table
Coil Current/Power |
Orifice (mm) | |||||
0.8 | 1.6 | 2.4 | 3.0 | 4.0 | 6.0 | |
ADC * | 40 | 30 | 17 | 10 | 5 | 1.1 |
AC8W, DC10W | 45 | 37 | 20 | 12 | 6 | 1.8 |
AC5.5W | 40 | 32 | 16 | 8 | 2 | 0.5 |
DC5.5W | 35 | 30 | 12 | 6 | 2 | 0.5 |
Flow factor Kv(l/min) | 0.5 | 1.7 | 3.5 | 4.5 | 5 | 6 |
Max. Pressure (bar) 2W NC table
Coil Current/Power |
Orifice (mm) | |||
0.8 | 1.6 | 2.4 | 3.0 | |
ADC * | 32 | 27 | 13 | 9 |
AC8W, DC10W | 35 | 32 | 18 | 12 |
Flow factor Kv(l/min) | 0.5 | 1.6 | 3.2 | 3.8 |
* ADC valves are only suitable for use with AC8W or DC10W coils.

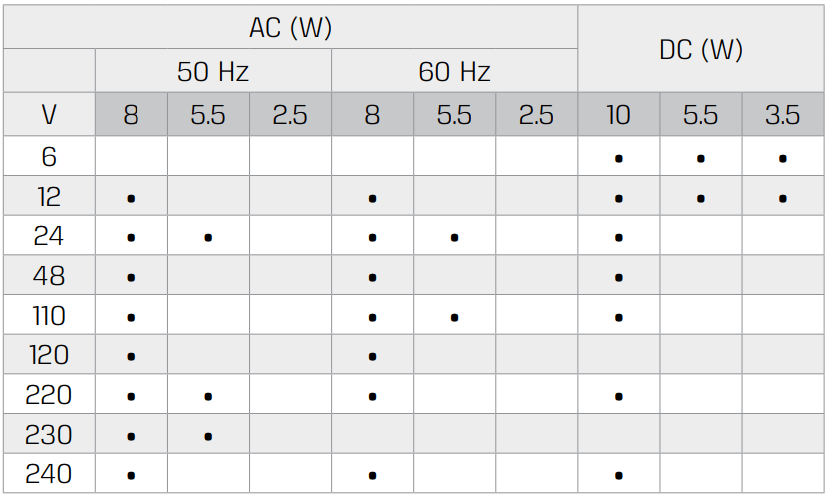

Voltage & Power Consumption
• Available options
