GEM-S | General Purpose 3W Brass Solenoid Valve
- Port Size: 1/4″ – 1/2″ BSP
- Function: 3 Way NC & NO
- Orifice Size: 8 – 12 mm
- Pressure Range: 0.8 - 12 bar
AU $414.37
The Gem-S Solenoid Valve is a general-purpose, 2-way solenoid valve that is available in a variety of materials and sizes. It is designed for use in a wide range of applications, including irrigation, water treatment, and industrial automation.
The Gem-S Valve features a compact design and is available with a variety of port sizes and orifices. It is also available with a manual override, which allows the valve to be operated manually in the event of a power failure.
The Gem-S Valve is made from a variety of materials, including brass, stainless steel, and plastic. It is available in a variety of pressure and temperature ratings, making it suitable for use in a wide range of applications.
The Gem-S Solenoid Valve is a reliable and versatile valve that is ideal for a variety of applications. It is easy to install and maintain, and it offers a long service life.
Features:
Benefits:
Applications:
Specifications:
Size | 1/4", 3/8", 1/2", 3/4", 1" BSP |
Function | 2 Way NC, NO |
Valve Operation | Pilot Operated |
Body Material | Stainless Steel |
Seal | FPM (Viton®) |
Pressure Range | See table * Minimum pressure differential of 03 or 05 is required |
Media |

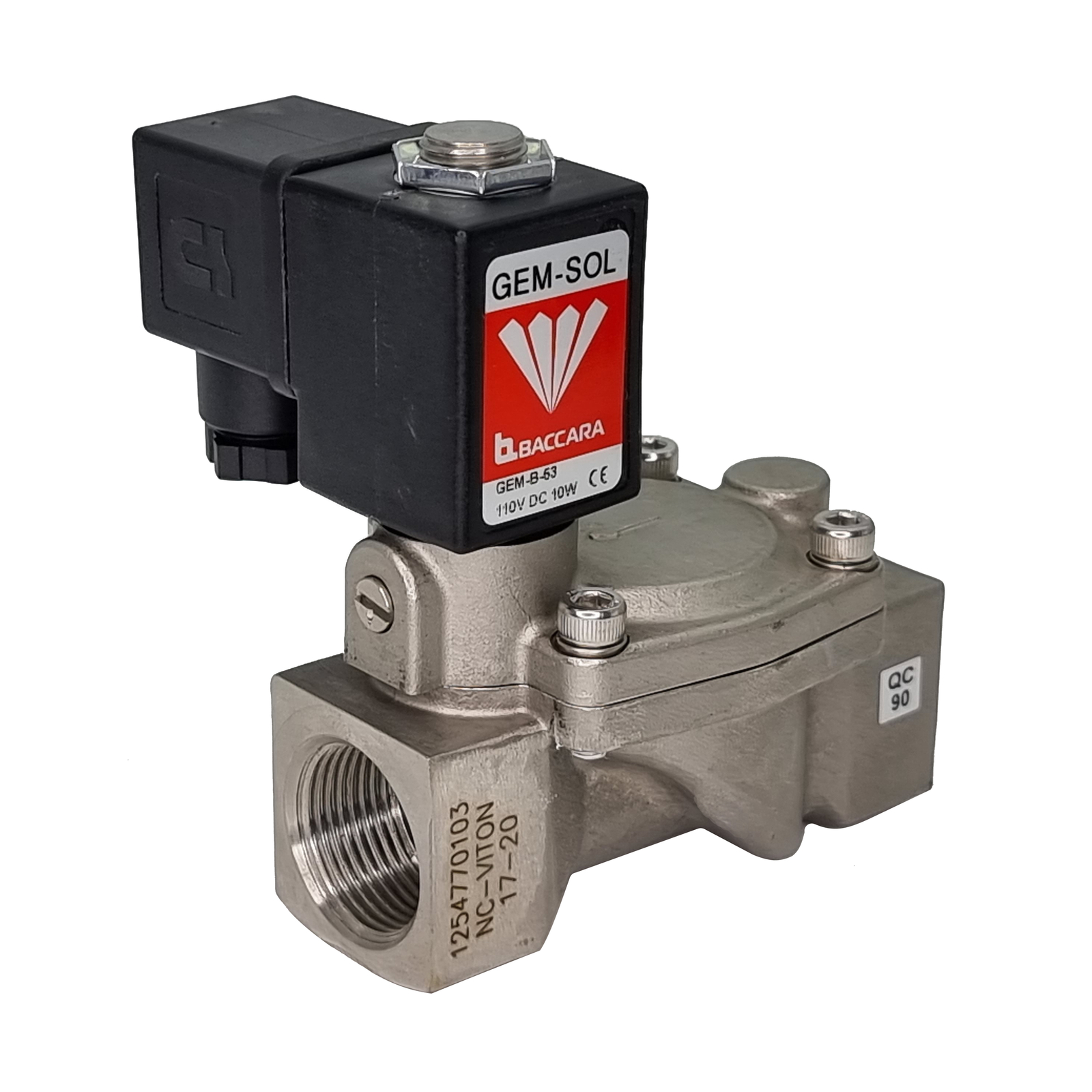

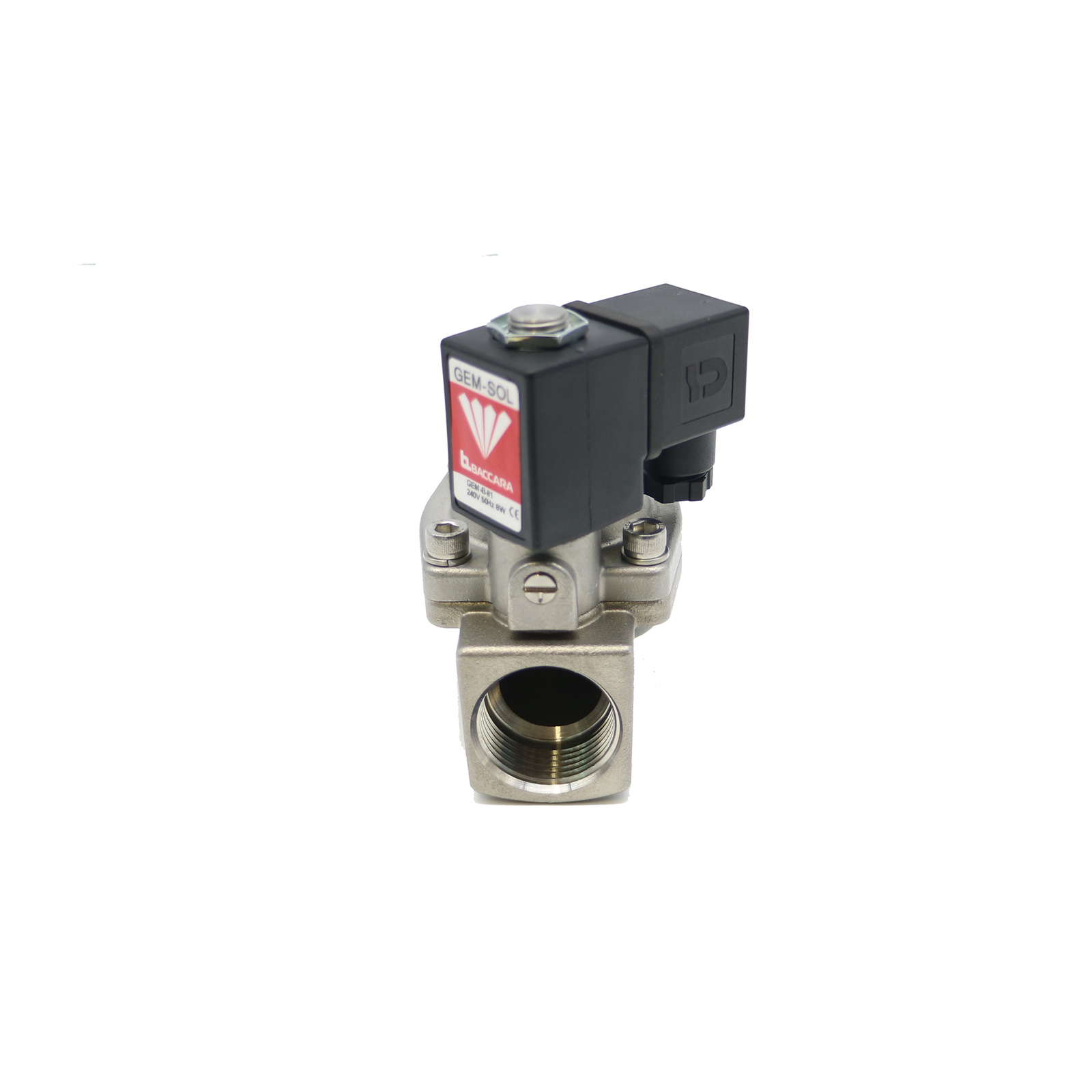

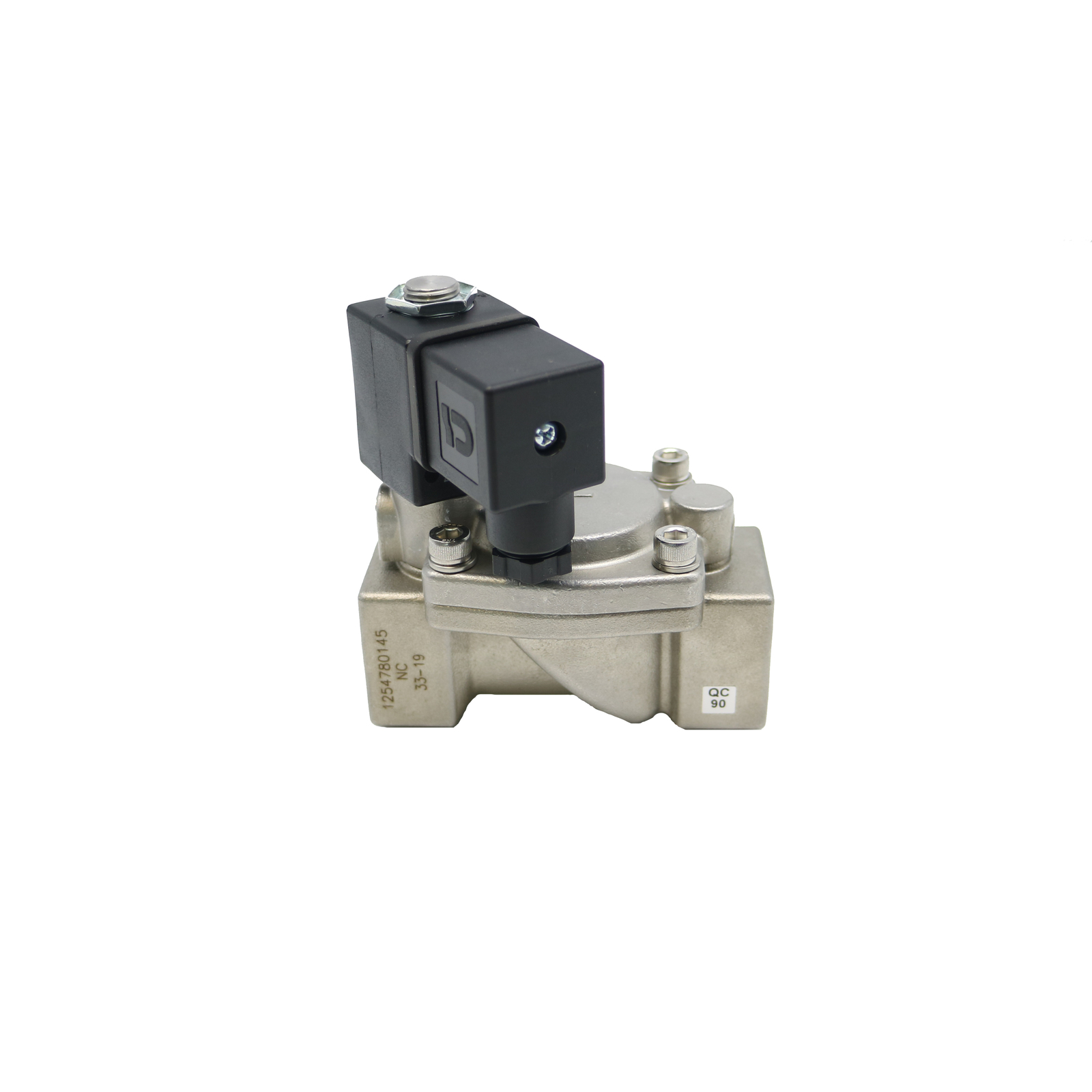

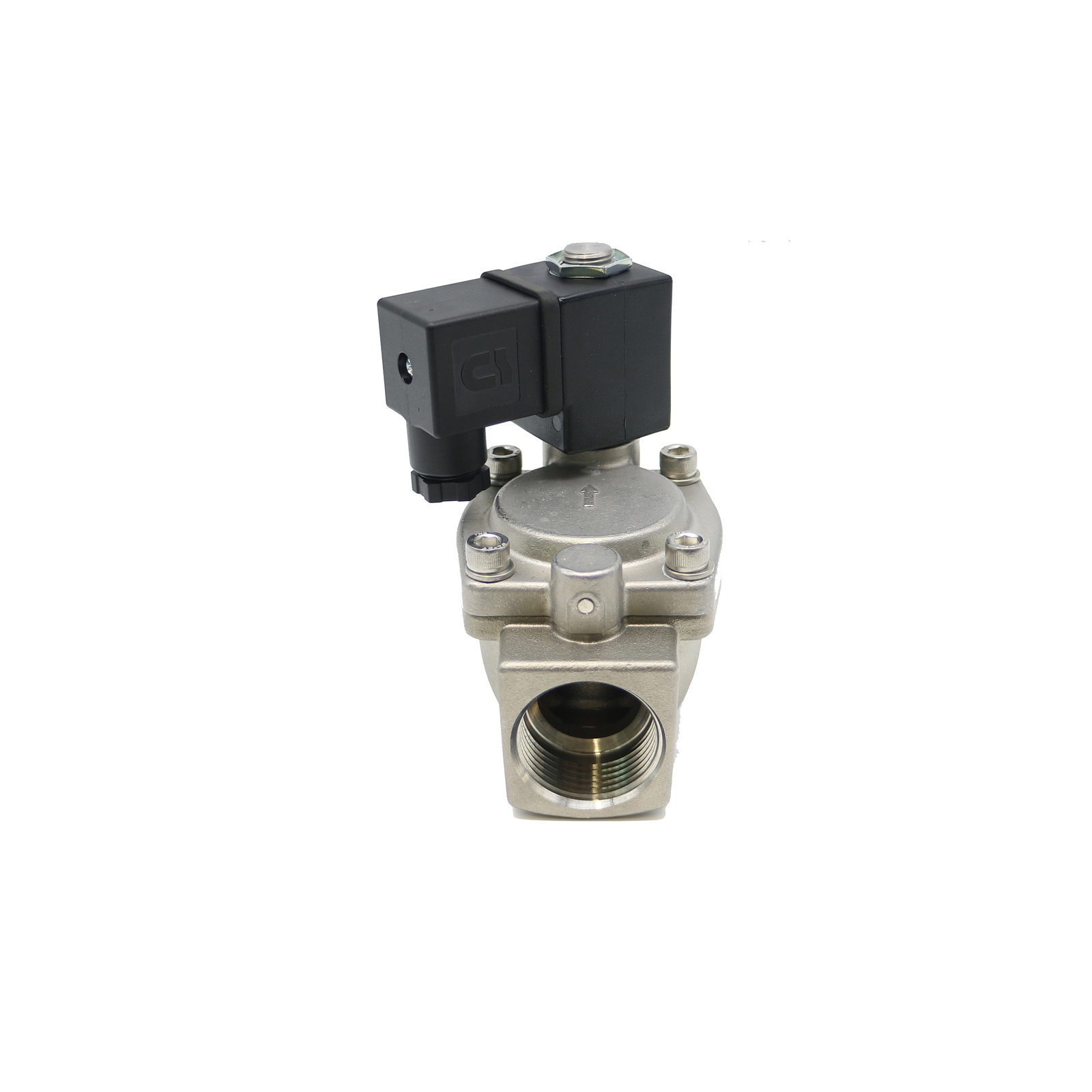

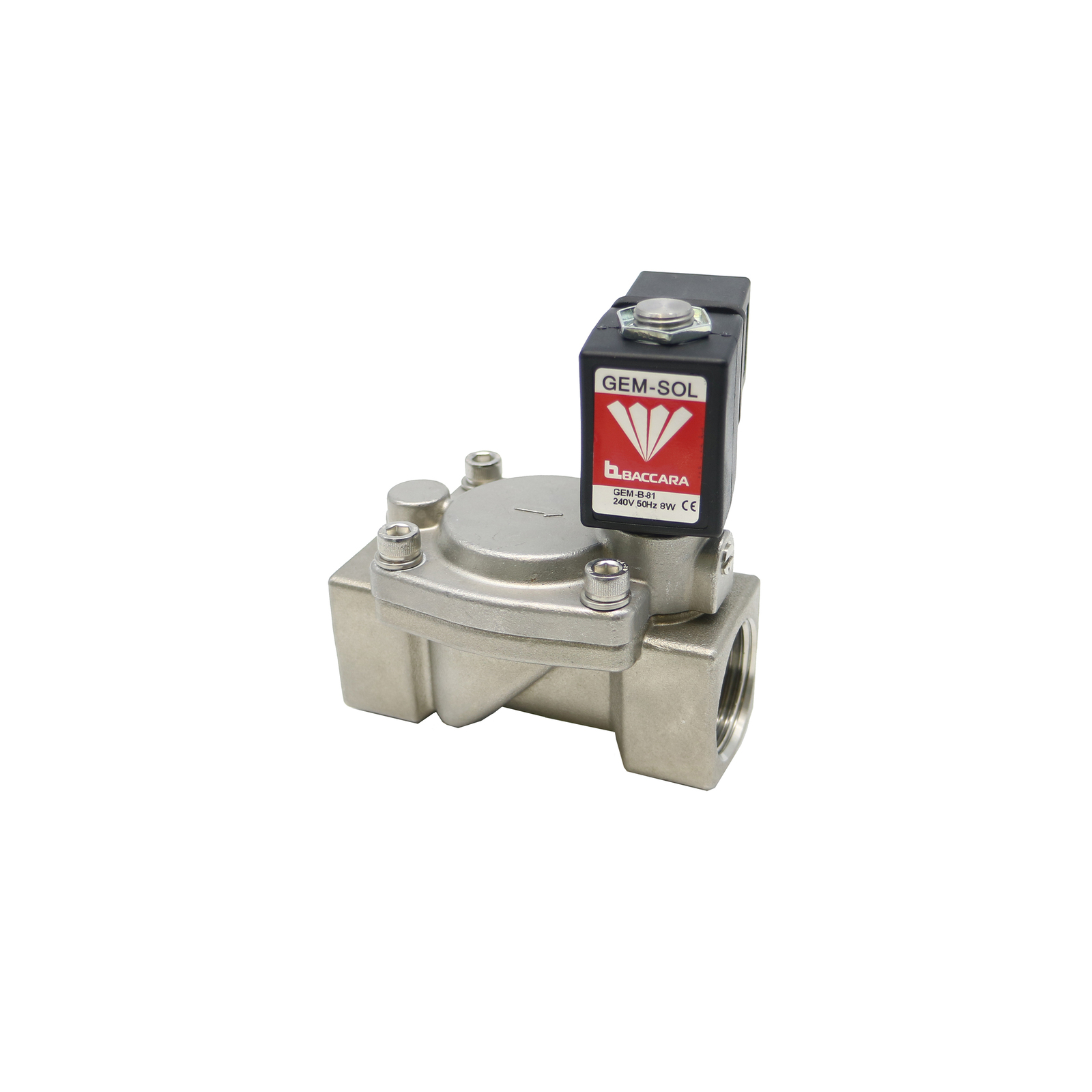

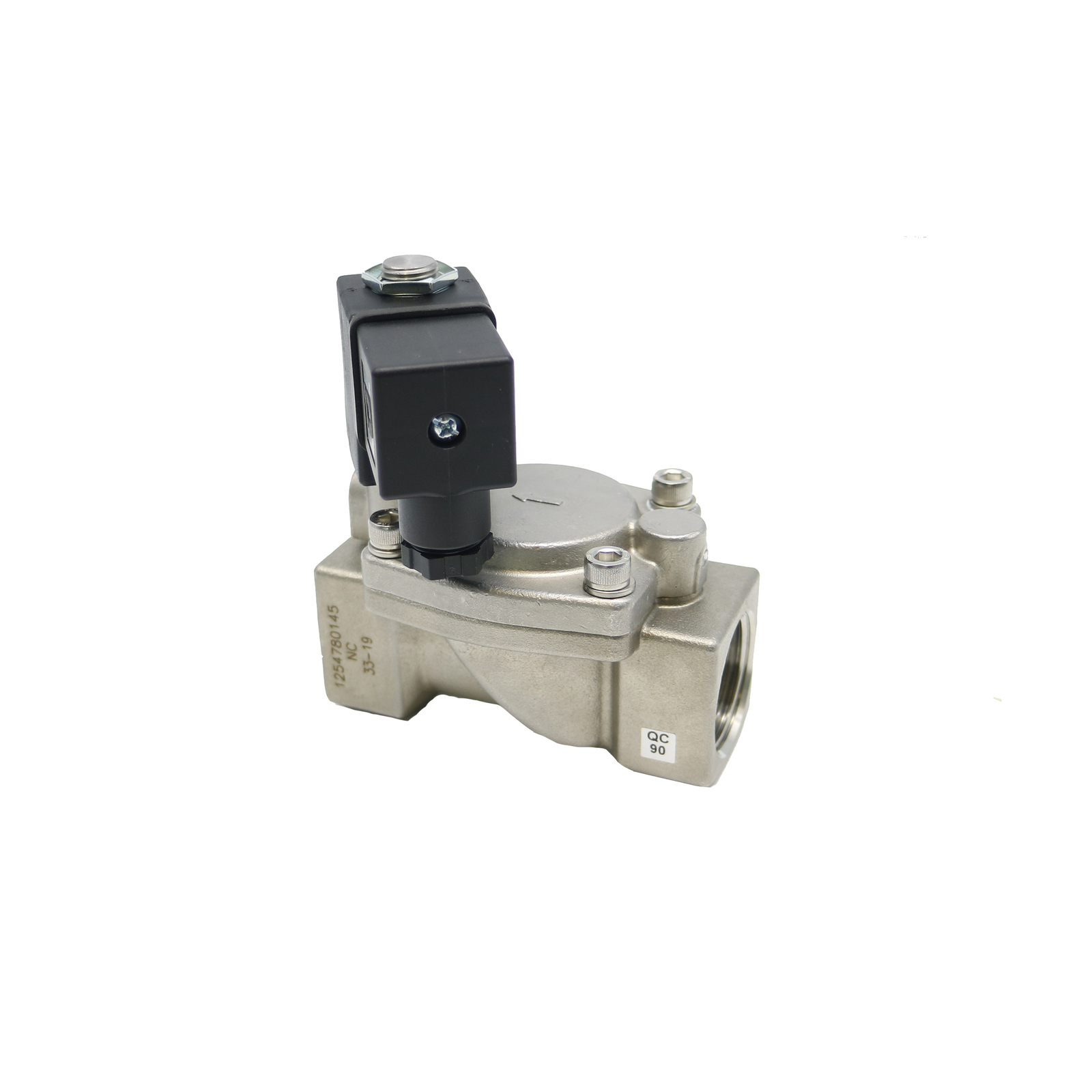

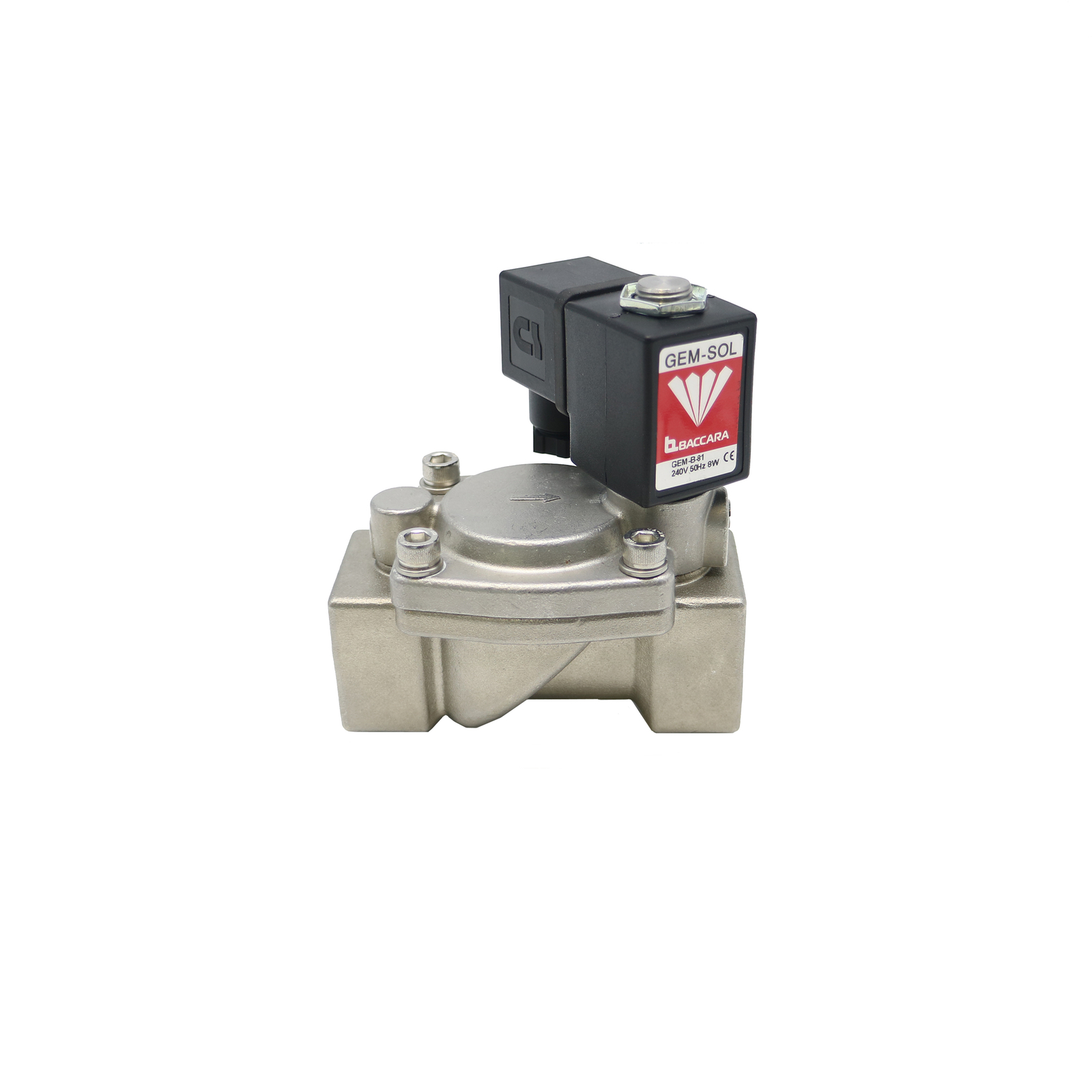

(GEM-S-2W-SST-BODY)
Technical Data
Function | 2 Way NC, NO |
Ports size | 1/4", 3/8", 1/2", 3/4", 1" BSP & NPT |
Pressure range | See table * Minimum pressure differential of 03 or 05 is required * Pressure of voltage DC is 70% of voltage AC only. |
Kv (l/min) | See table |
Temperature range | Fluid : -10ºC to 80ºC (no freezing) Ambient : -10ºC to 50ºC |
Materials in contact with media |
Manual override: NC/NO - Brass screw NOa* - manual override is not available *pressure is supplied through the base Main Valve: Stainless Steel AISI 300 & 400 series Seals: FPM (Viton®) |
Coil voltage | • Voltage and power consumption - see table • All Baccara coil voltages are ± 10% of nominal |
Standard / Certification | • UL 429 * Available on selected models only Please contact our technical sales department for details |
Standard protection class | IP65 with connector * Option : IP68 (please refer to GEM-BP Coil) |
• Slow closing system to prevent water hammer effect
Pressure (bar) & Flow table NO/NC GEM-S--20....41
Size | Orifice (mm) |
Pressure (bar) |
Kv (l/min) |
1/4" | 8 | 05 to 20 | 12 |
3/8" | 8 | 16 | |
1/2" | 12 | 35 |
Pressure (bar) & Flow table NO/NC GEM-S--r
Size | Orifice (mm) |
Pressure (bar) |
Kv (l/min) |
1/2" | 16 | 05 to 20 | 60 |
3/4" | 16 | 80 |
Pressure (bar) & Flow table NO/NC GEM-S--50....60
Port Connection |
Orifice (mm) |
Pressure (bar) AC DC |
Kv (l/min) |
|
3/4" | 20 | 03 to 15 | 03 to 15 | 130 |
1" | 25 | 05 to 15 | 05 to 15 | 200 |
