G80-A | General Purpose Direct Acting Aluminium M
- Port Size: 1/8″ BSP
- Function: 2 Way NC & NO, 3 Way NC & NO
- Orifice Size: 1 – 3 mm
- Pressure Range: 2.5 - 40 bar
AU $98.60
Size | 1/8″ BSP |
Function | 2 Way, 3 Way NC |
Valve Operation | Direct Operated |
Body Material | Brass |
Seal | NBR |
Pressure Range | • Please refer to techincal data • Valves for pressure higher than 25 bar cannot be supplied with manual override |
Media | Air, water, oil |

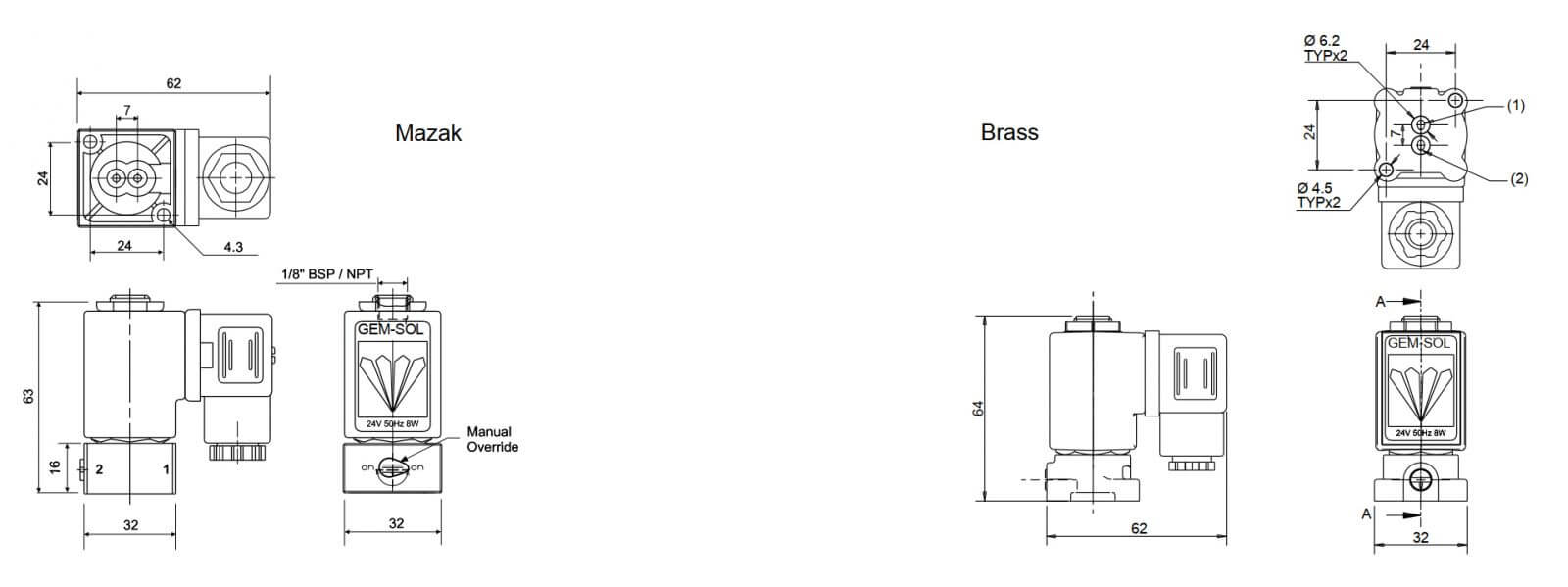

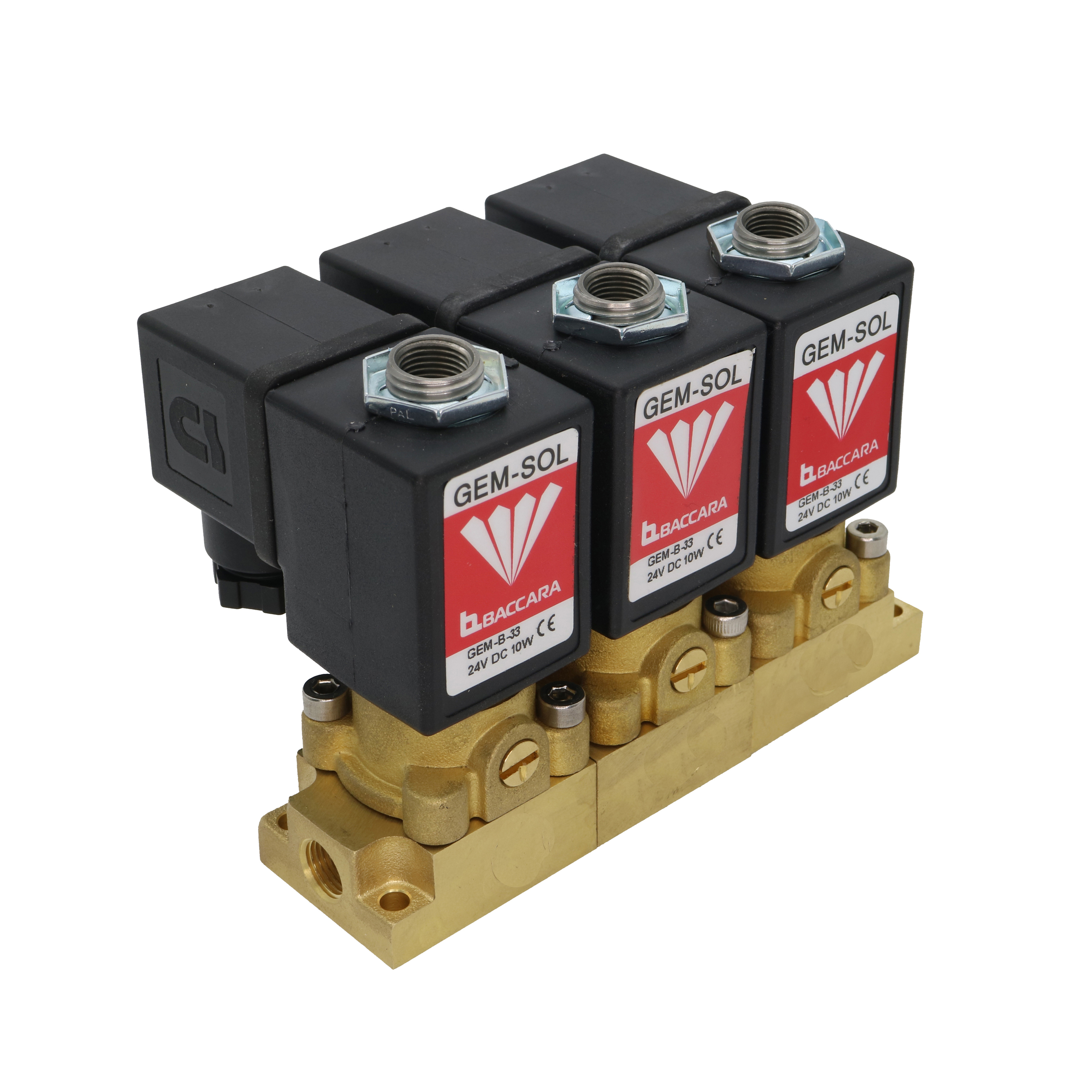

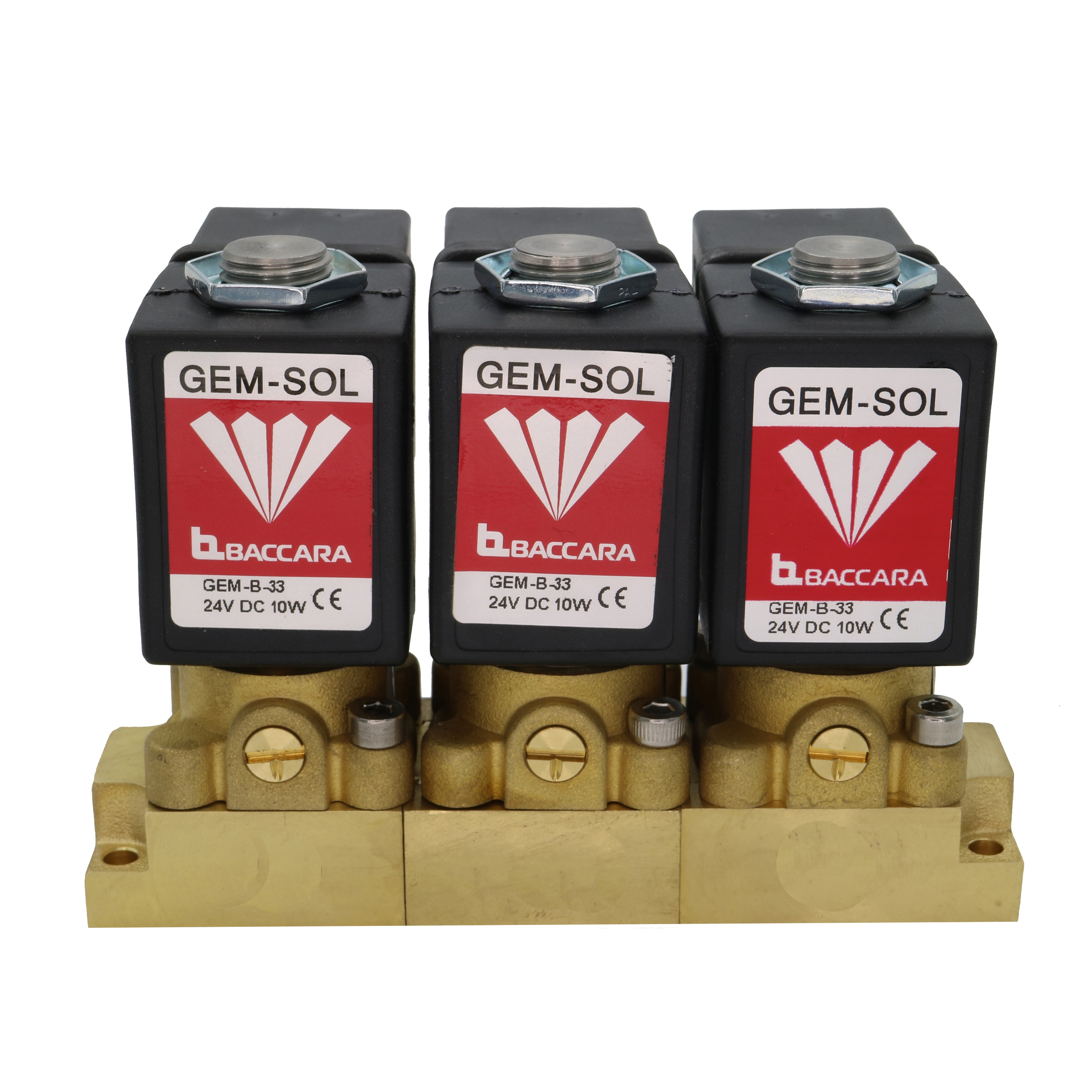

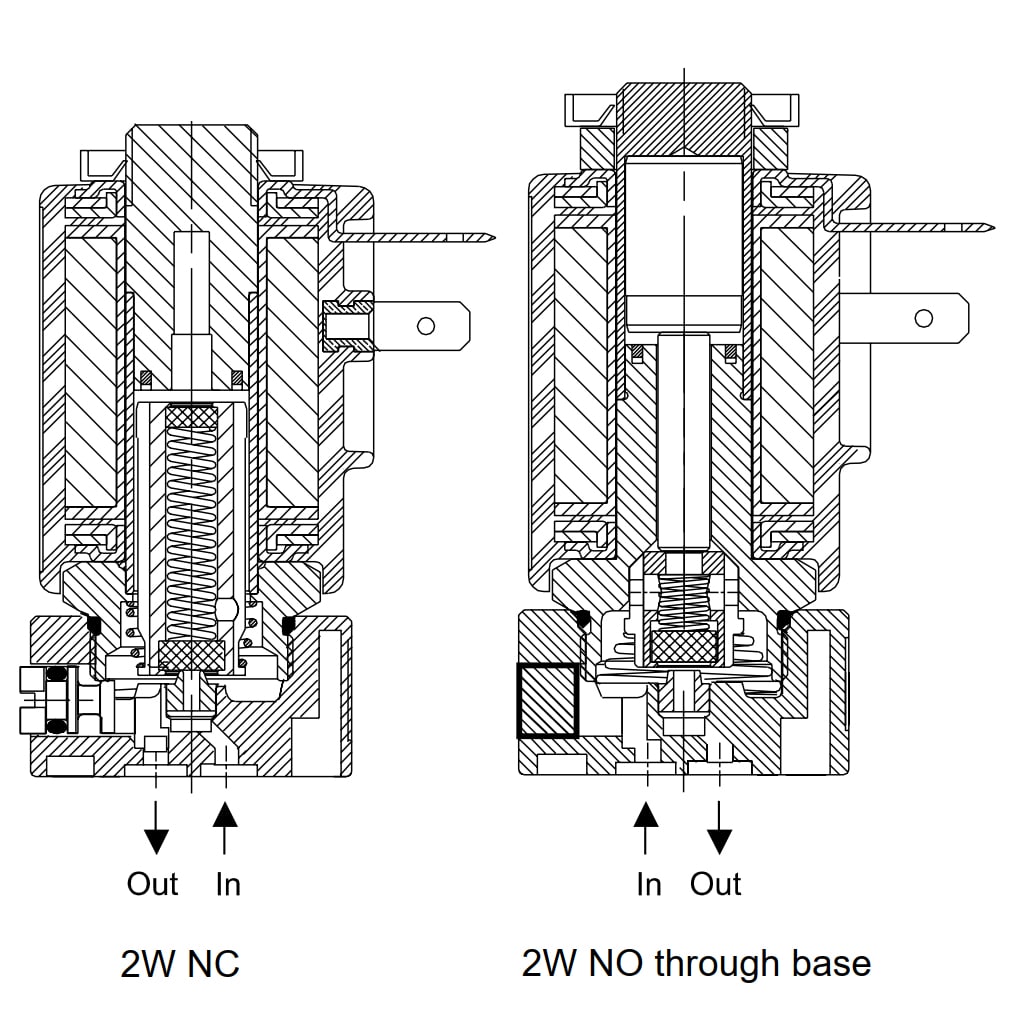

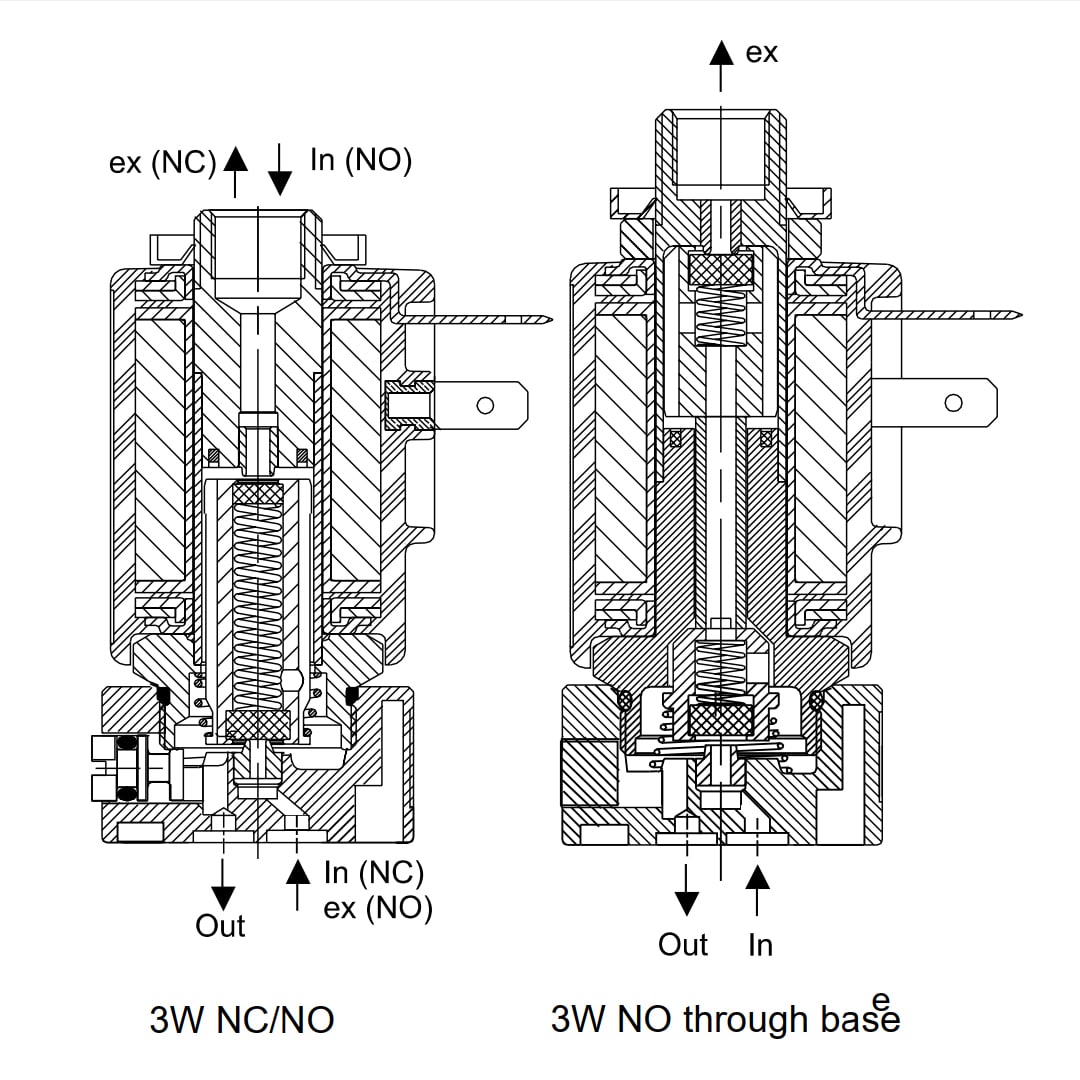

Two types of NO valves :
(GEM-V)
Technical Data
Function | 2 Way, 3 Way NC, NO |
Pressure range | • See table • Valves for pressure higher than 25 bar cannot be supplied with manual override. |
Kv (l/min) | See table |
Temperature range | Fluid : -10ºC to 80ºC (no freezing) Ambient : -10ºC to 50ºC |
Mounting | Vertical, on sub-base, 2 screws M4. Any number of valves on the same sub-base plate. Any combination of 2/2, 3 Way NC or NO valves may be grouped together. * Standard valve orientation : Manual override and base port on the same side |
Materials in contact with media |
Manual override: Plastic, Brass screw or finger knob. NOa* - manual override is not available. *pressure is supplied through the base Main Valve: Mazak, Brass Solenoid Operator: Stainless Steel AISI 300 & 400 series Seals: NBR, FKM, EPDM |
Media | Air, water, oil |
Coil voltage | • Voltage and power consumption - see table • All Baccara coil voltages are ± 10% of nominal |
Standard / Certification | • UL 429 * Available on selected models only. Please contact our technical sales department for details. |
Standard protection class | IP65 with connector * Option : IP68 (please refer to GEM-BP Coil) |

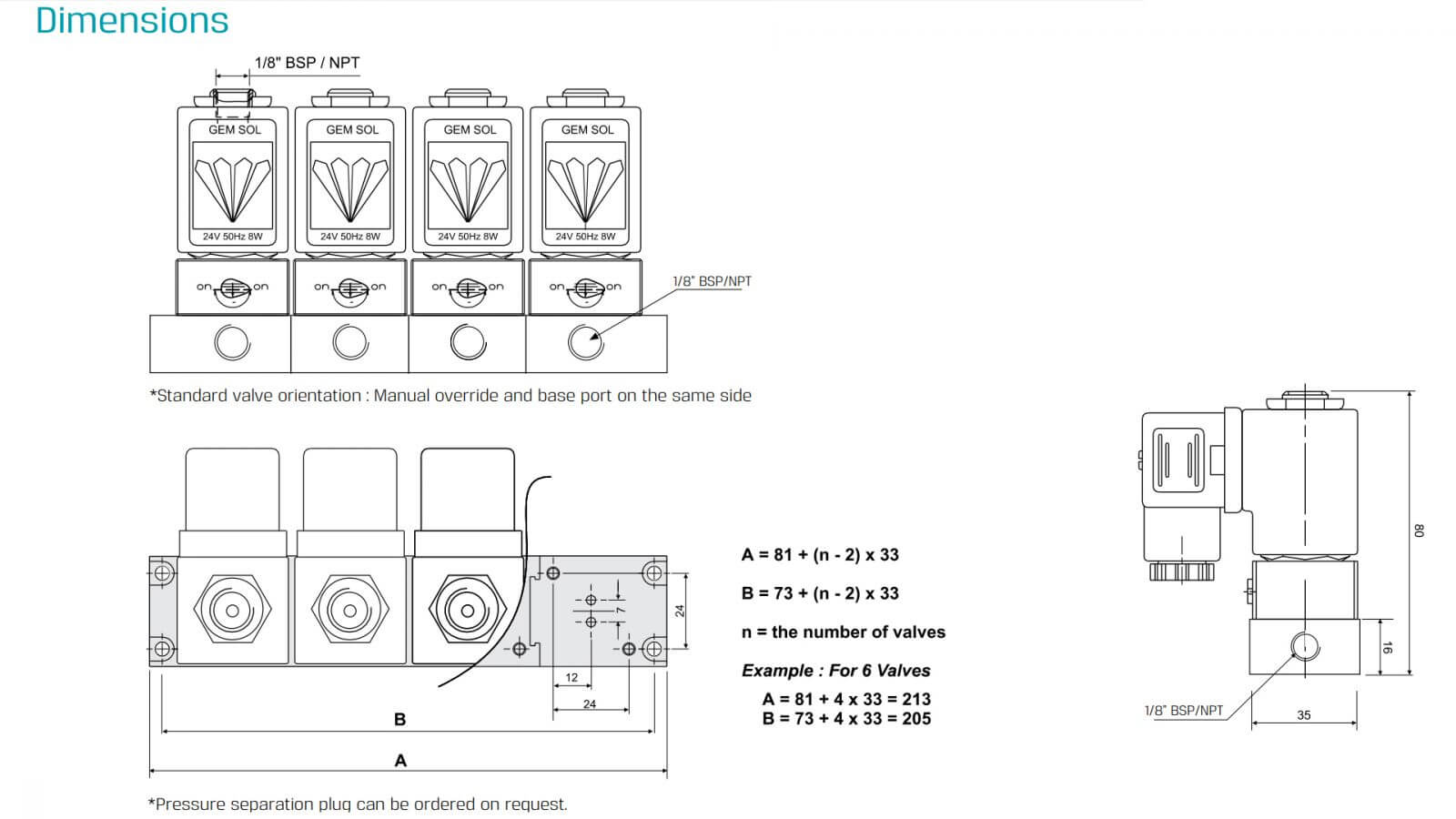

• Latch valves are available upon request.
• Pressure separation plug is available.
Size | Any number of stations, built from three basic components: left end section, right end section and middle section. |
Assembly | Push in and turn 90º clockwise |
Port size | 1/8" BSP |
Material | Mazak, Brass |
Max. Pressure (bar) 2W, 3W NC table
Coil Current/Power |
Orifice (mm) | |||||
0.8 | 1.2 | 1.6 | 2.0 | 2.4 | 3.0 | |
ADC • | 23 | 20 | 15 | 10 | 8 | 5.5 |
AC8W, DC10W | 35 | 30 | 17 | 14 | 10 | 6 |
AC5.5W | 23 | 20 | 15 | 10 | 8 | 5.5 |
AC2.5W, DC5.5W, DC3.5W |
20 | 16 | 10 | 9 | 5 | 4 |
Flow factor Kv(l/min) | 0.6 | 1.1 | 1.7 | 2.5 | 3.5 | 4.5 |
Max. Pressure (bar) 2W, 3W NO table
Coil Current/Power |
Orifice (mm) | |||||
0.8 | 1.2 | 1.6 | 2.0 | 2.4 | 3.0 | |
ADC • | 25 | 20 | 15 | 11 | 8 | 6 |
*AC8W, DC10W | 30 | 22 | 17 | 12 | 10 | 7 |
*AC5.5W, DC5.5W | 25 | 20 | 15 | 11 | 8 | 6 |
*AC2.5W, DC3.5W | 20 | 18 | 12 | 8 | 6 | 4 |
Flow factor Kv(l/min) | 0.6 | 1 | 1.4 | 2.2 | 3.0 | 3.5 |
* These are not applicable for NO through base valves
• ADC valves are only suitable for use with AC8W or DC10W coils.

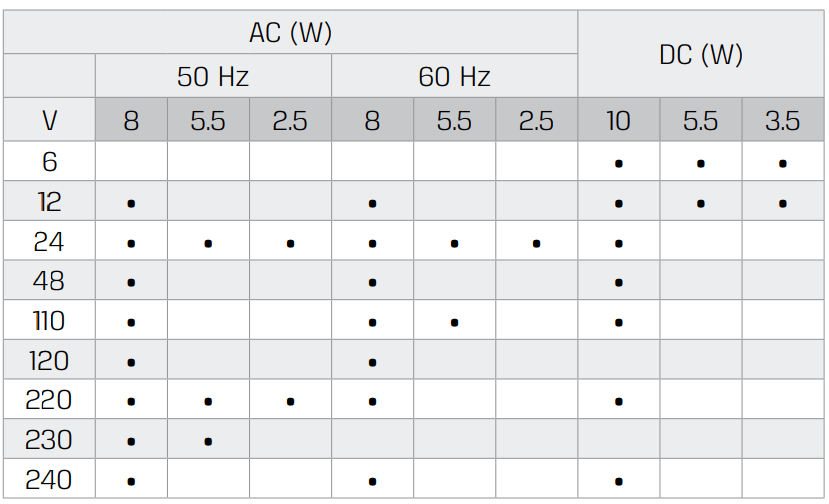

Voltage & Power Consumption
• Available options
