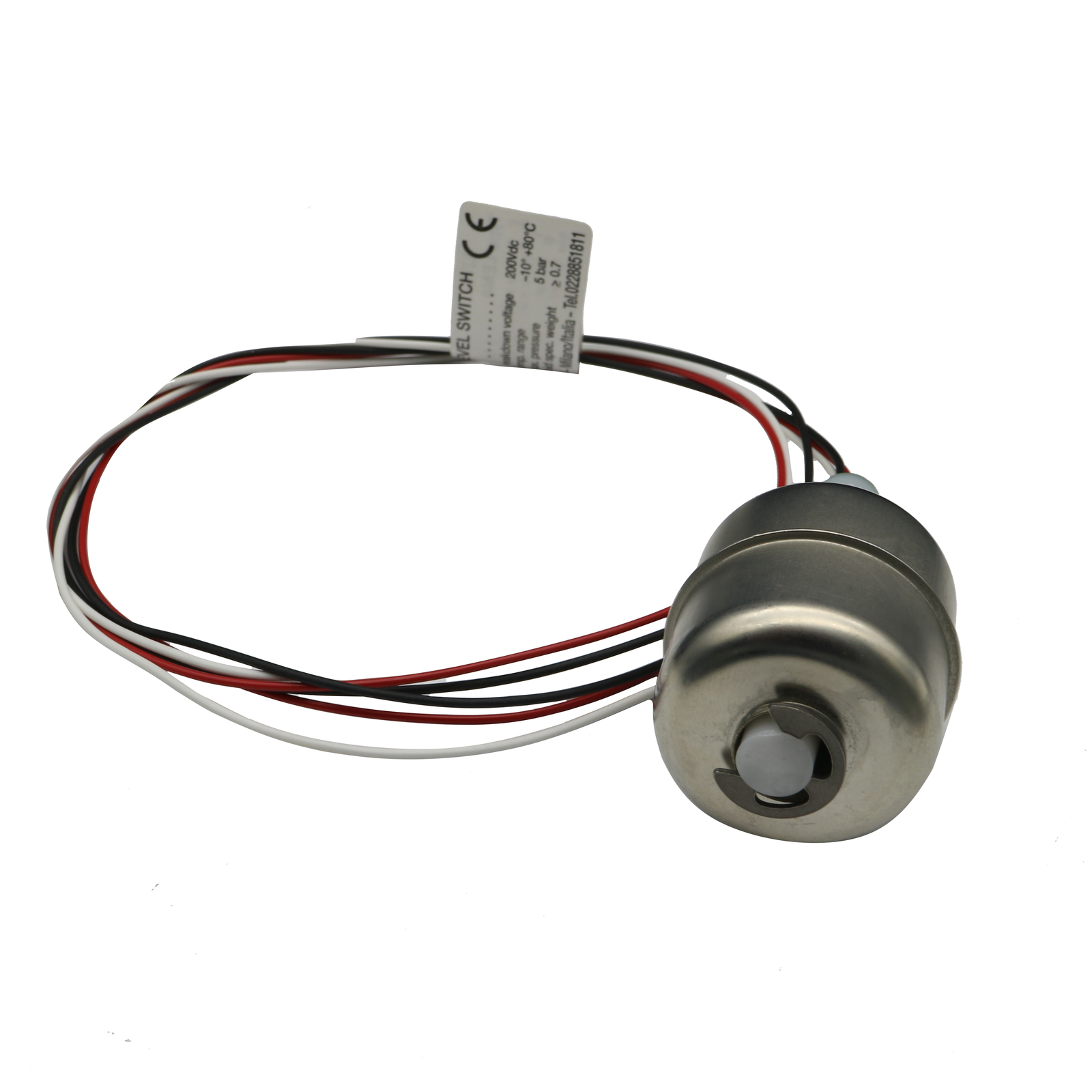

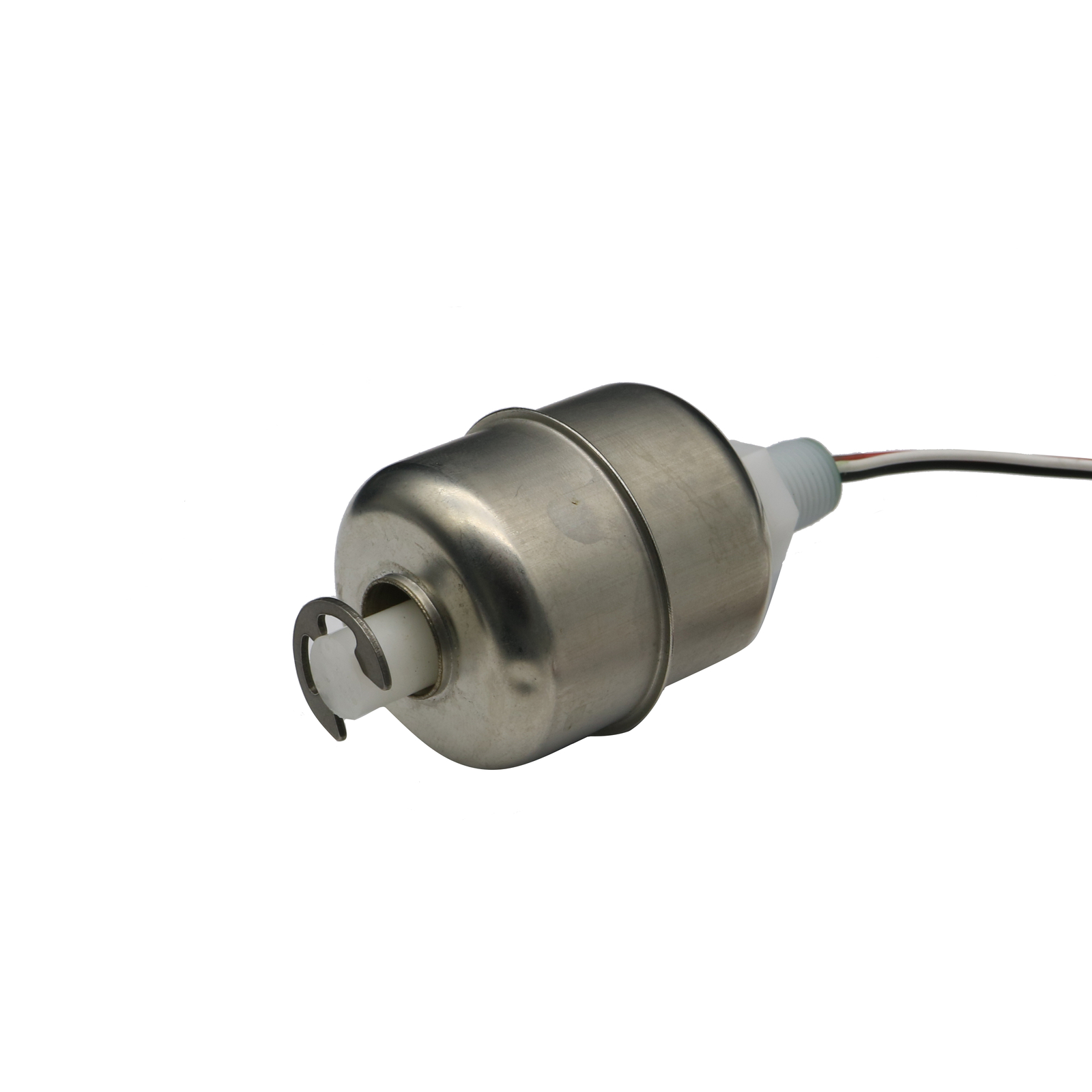

LEM6CASC | Non-toxic Magnetic Float Level Switch

Technology: Magnetic float
Port Type: Threaded
Media: Liquid
Body material: Stainless Steel

Application

This series of electromagnetic level switches has been designed to check the minimum or maximum level of a liquid in a tank and send an electric signal to a remote board in case the fluid goes over or under the set levels. Ideal for food and beverage processing. These level switches should be fixed vertically on the cover of the tank, with the float at least 50 mm far from metal walls.

Technology	Magnetic float
Body Material	Stainless Steel
Port Type	Threaded
Pressure Range	Min.: 0 bar (0 psi) Max.: 5 bar (72.52 psi)
Temperature Range	Min.: -10 °C (14 °F) Max.: 80 °C (176 °F)
Media	Liquid

(32533)

Technical Data

Materials of construction	Stem: Hostaform Float: 316 stainless steel
Actuation points	1 with N.O. – N.C. – SPDT contacts
Mounting	G1/8”
Electrical connection	500mm leads (standard)
Switching capacity	N.C. contacts - 10W/VA SPDT/N.O. contacts – 3W/VA
Current	N.C. contacts - 0,5A (resistive) SPDT/N.O. contacts - 0,25A (resistive)
Max voltage	N.C. contacts: 220V – 50Hz SPDT/N.O. contacts: 175Vdc
Temperature range	-10°C +80°C
Max pressure	5 bar
Fluid specific weight	³ 0.7
Fluid viscosity	Max 150 cSt
Certification and approvals	- -

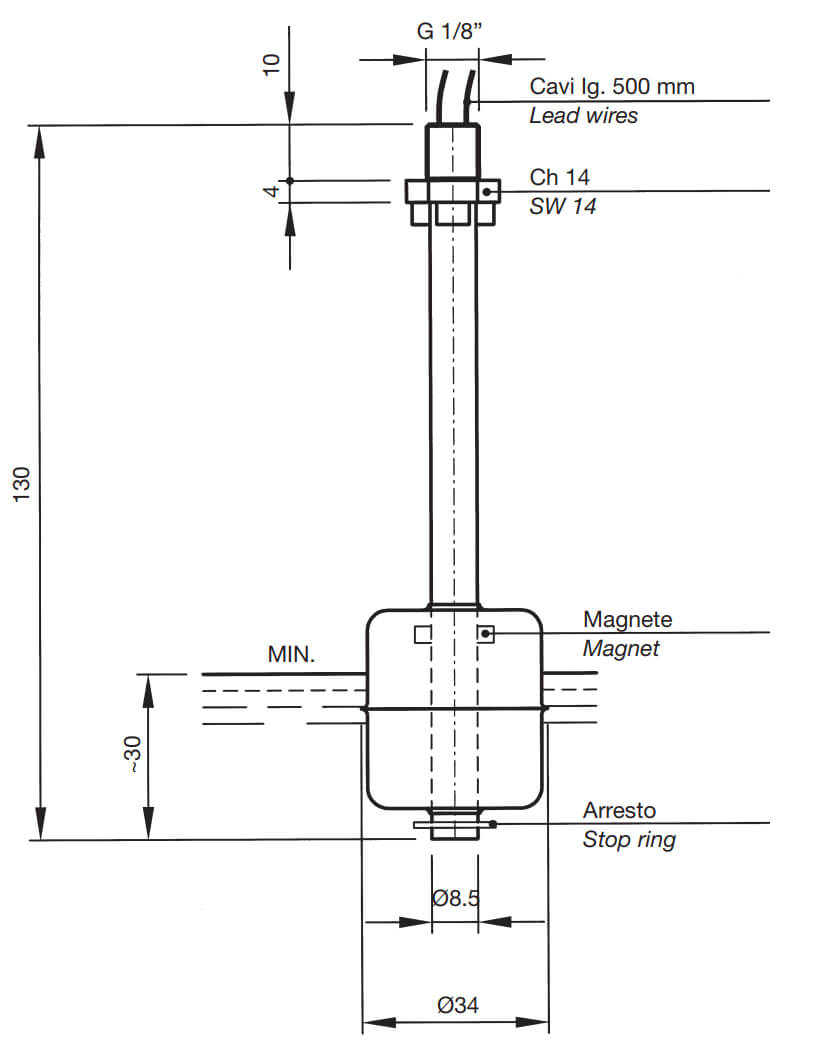

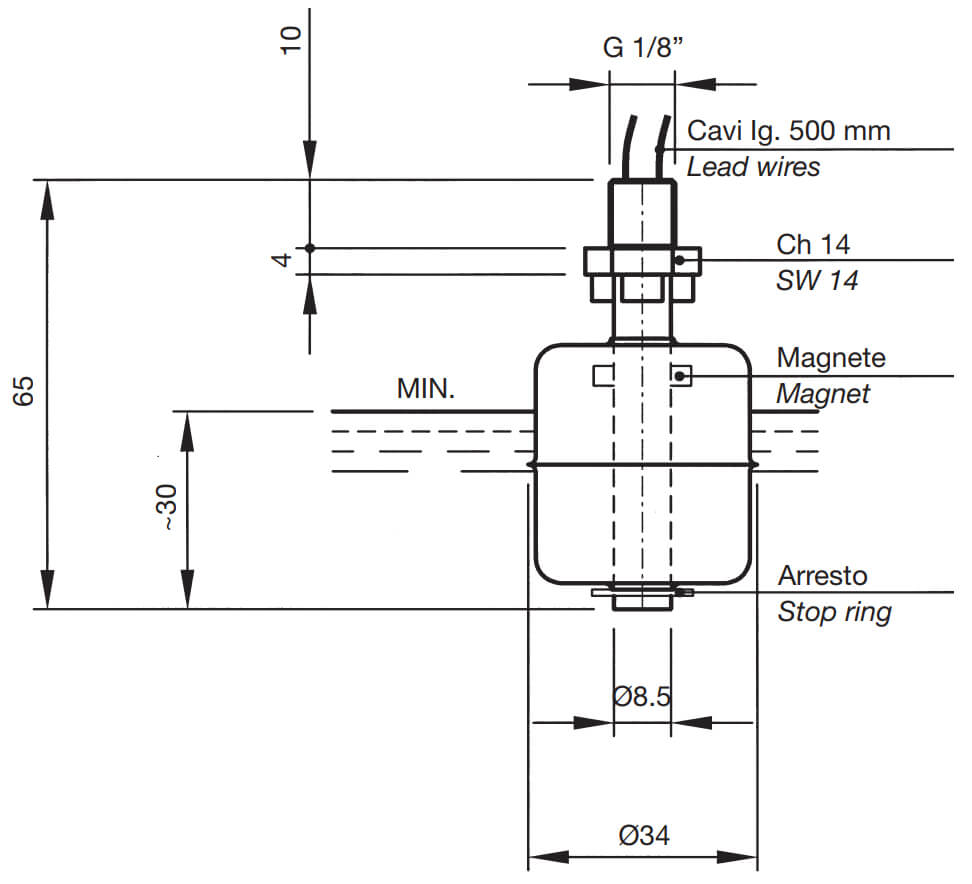

Size	LEM6CA – 65mm LEM6LA – 130mm

COMMON SPECIFICATIONS

Temperature range Maximum pressure Fluid specific gravity Max. fluid viscosity Material	-10°+80°C 5 Bar ≥ 0,7 150 cSt Nontoxic white body, 316 stainless steel float, sealed manufacture
NC CONTACT EXECUTION Switching capacity in DC Switching capacity in AC Current Voltage Breakdown voltage Capacitance Insulation resistance	10 W 10 VA 0,5A (resistive) 220 V - 50 Hz 300 Vdc 0,2 pF 1010 Ohm

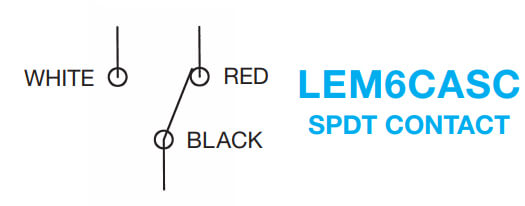

SPDT AND NO CONTACT EXECUTION
Switching capacity in DC Switching capacity in AC Current Voltage Breakdown voltage Capacitance Insulation resistance	3 W 3 VA 0,25A (resistive) 175 Vdc 200 Vdc 1 pF 109 Ohm
