Add to my order
AU $42.57 In Stock Item Number: 2262253803
Add to my order
AU $33.66 In Stock Item Number: 2262253802
Add to my order
AU $43.12 In Stock Item Number: 2262253805
Add to my order
AU $41.36 In Stock Item Number: 2262253804
Add to my order
AU $24.09 In Stock Item Number: 22622334
Add to my order
AU $18.26 In Stock Item Number: 2262233201
Add to my order
AU $27.83 In Stock Item Number: 22622536
Add to my order
AU $25.96 In Stock Item Number: 22622336
Add to my order
AU $29.81 In Stock Item Number: 22622538
Add to my order
AU $27.83 In Stock Item Number: 22622338
Add to my order
AU $37.73 In Stock Item Number: 2262253801
Add to my order
AU $224.29 In Stock Item Number: CB-PIN-SDB-MCCG-50
Add to my order
AU $292.49 In Stock Item Number: CB-PIN-SDB-MCCG-63
Add to my order
AU $23.32 In Stock Item Number: LB-MCCG-50
Add to my order
AU $30.03 In Stock Item Number: LB-MCCG-63
Add to my order
AU $45.10 Sold Out - Backorder Available Item Number: Y-PIN-MCCG-50
Add to my order
AU $45.10 Sold Out - Backorder Available Item Number: Y-PIN-MCCG-63
Add to my order
AU $85.30 Sold Out - Backorder Available Item Number: FAB-FAC-MCCG-50
Add to my order
AU $105.10 Sold Out - Backorder Available Item Number: FAB-FAC-MCCG-63

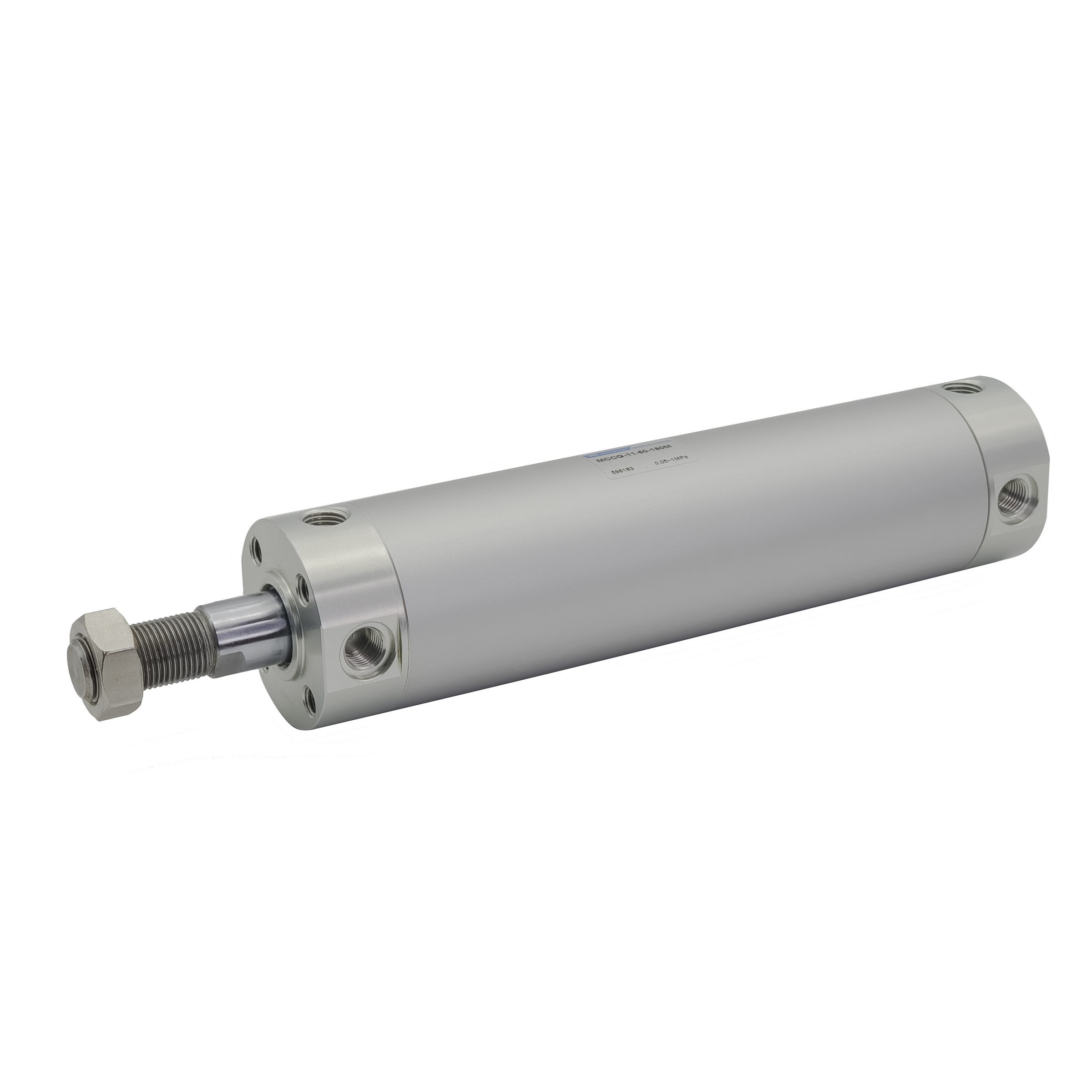

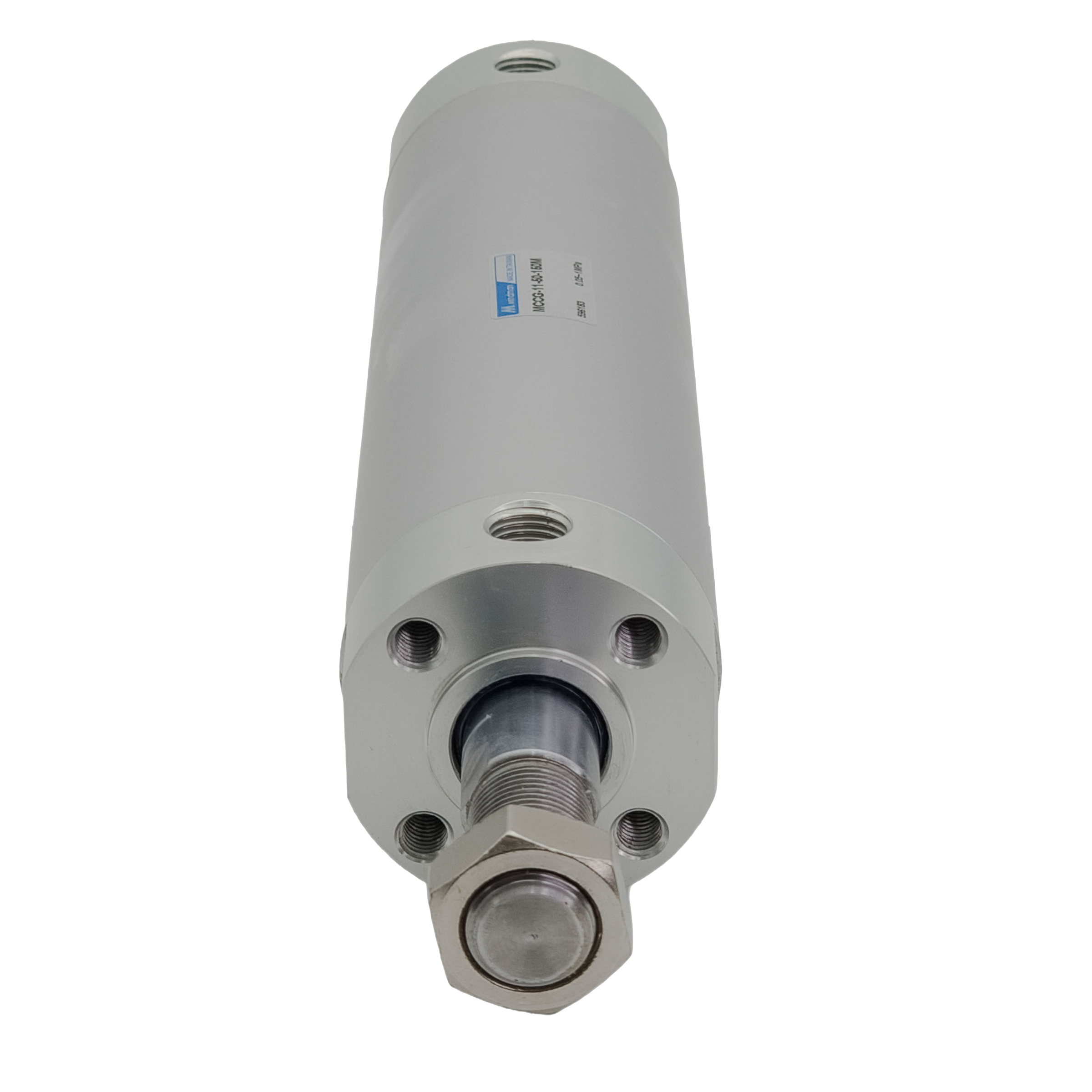

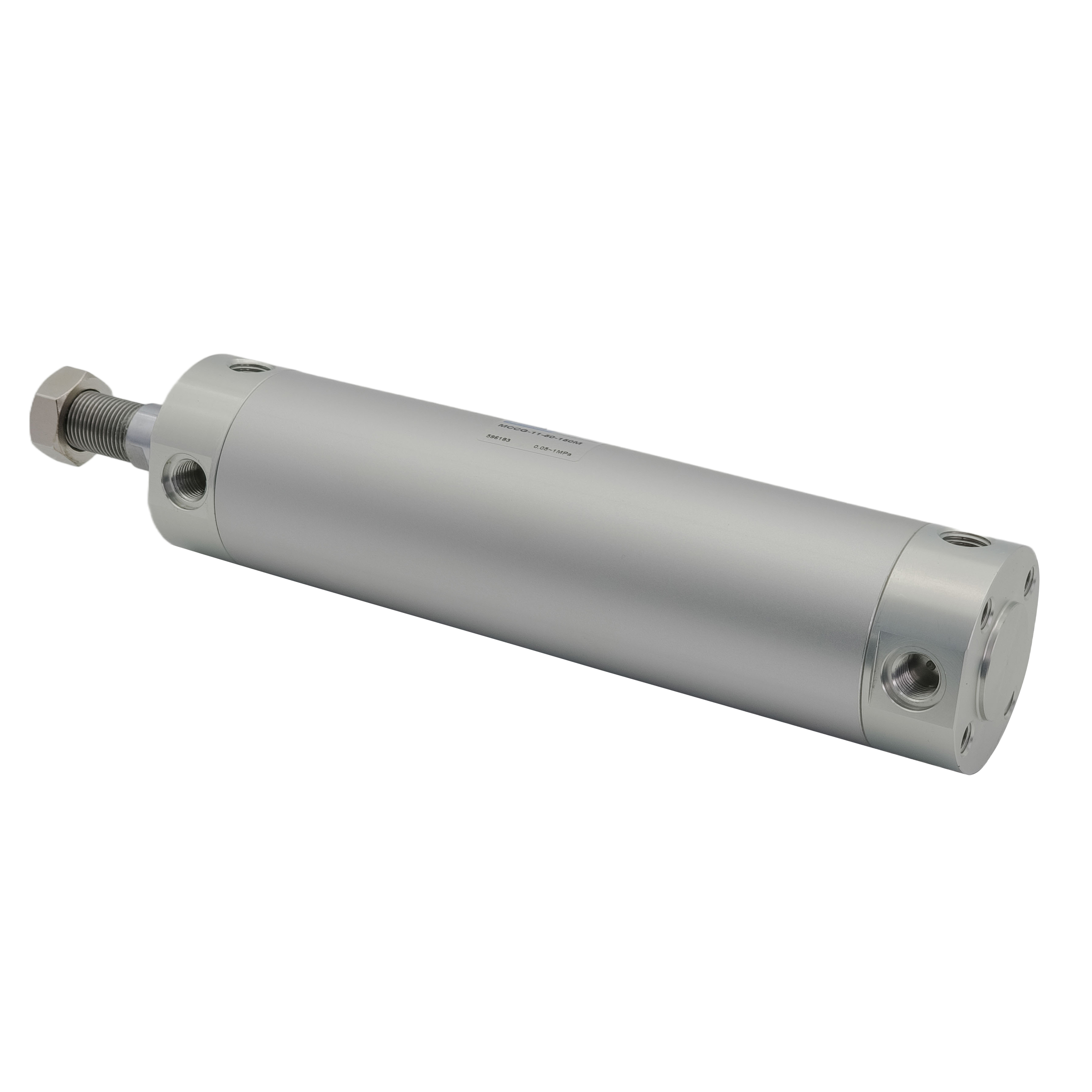

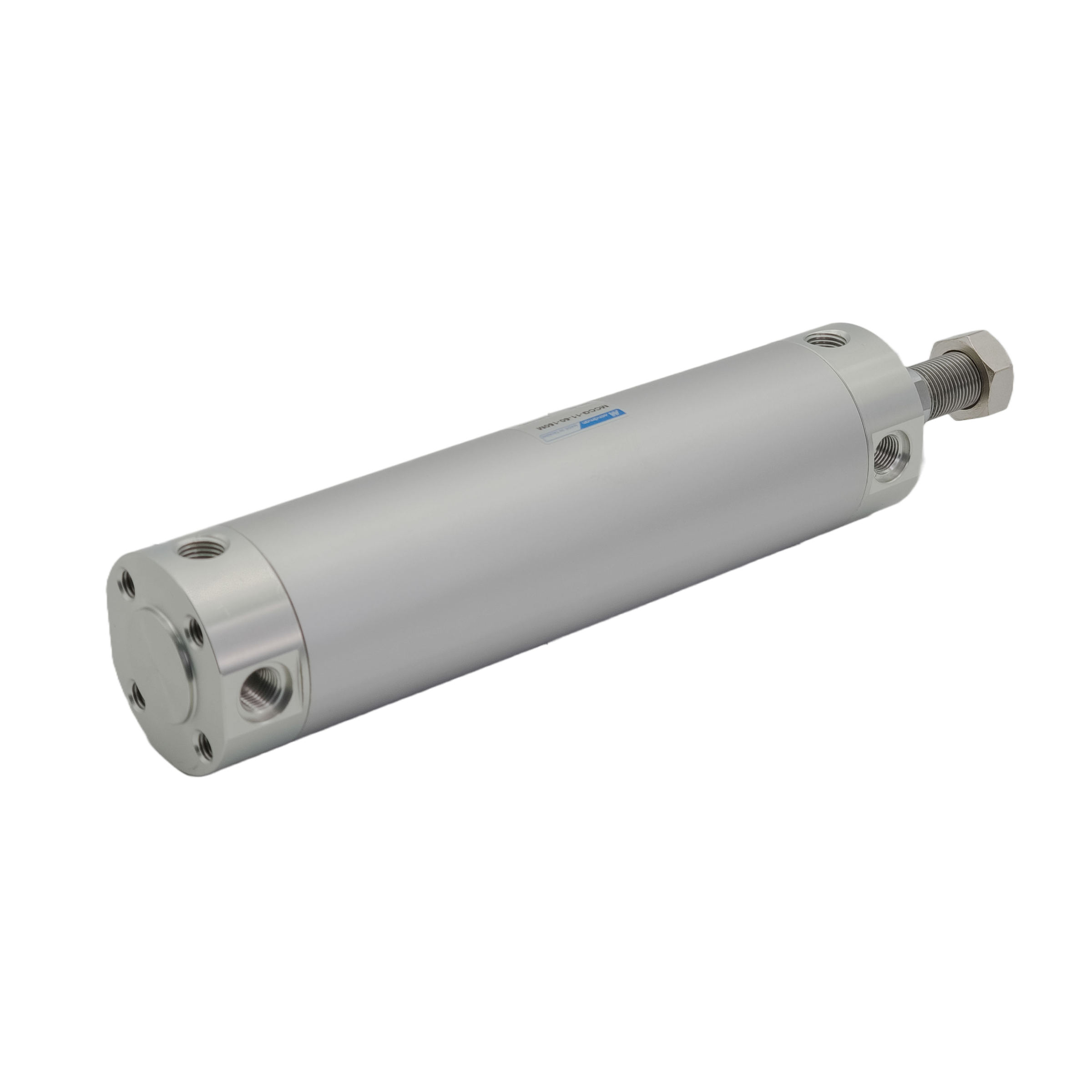

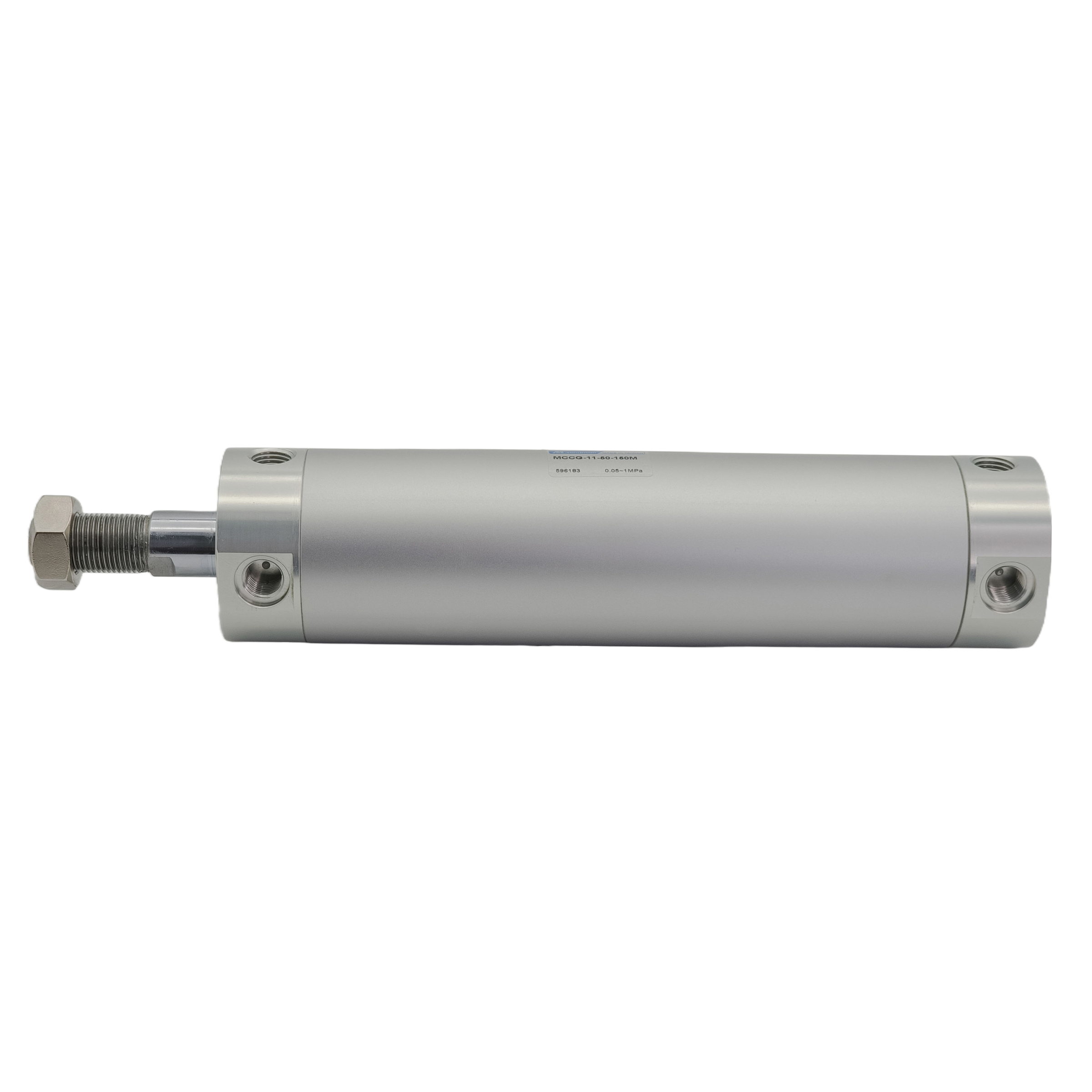

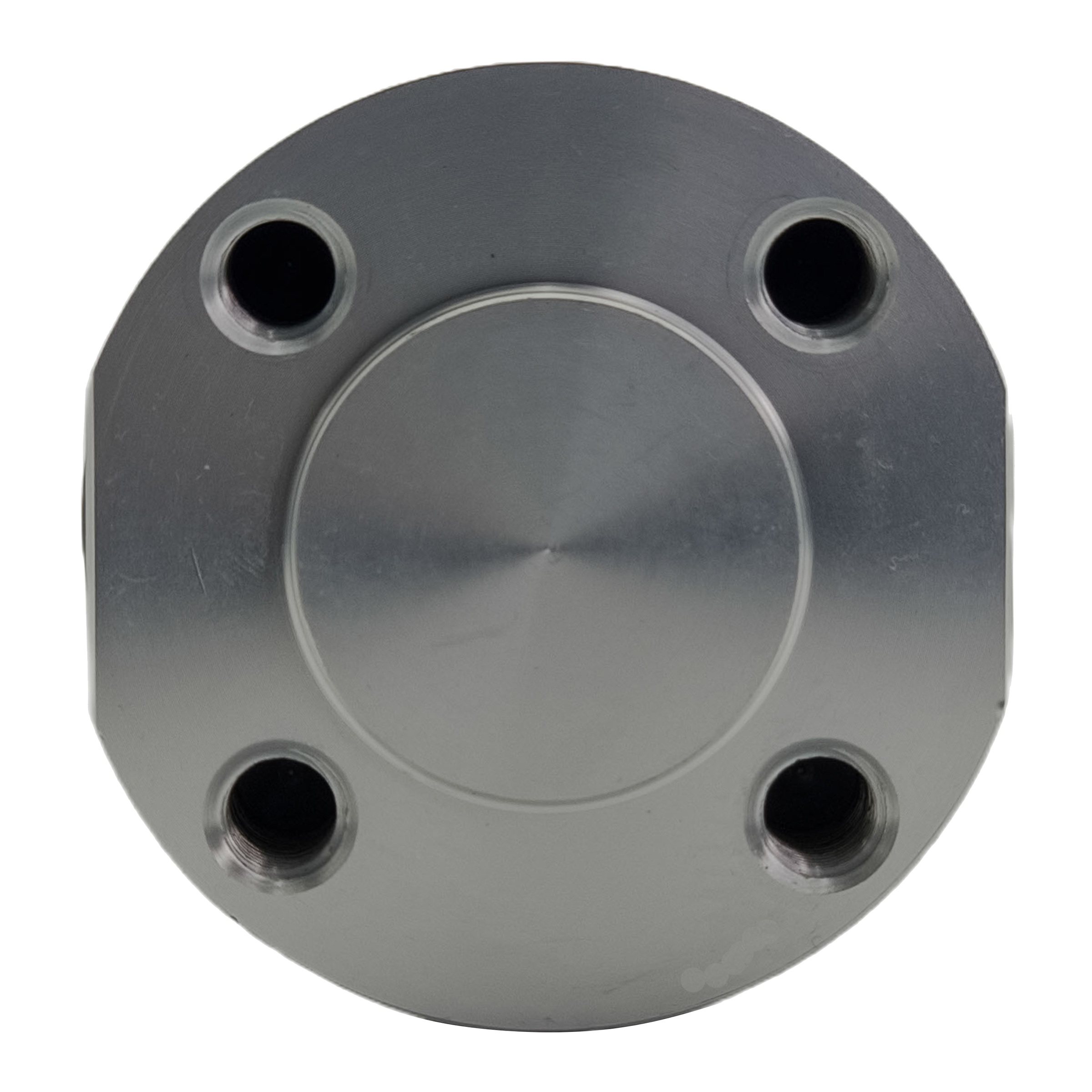

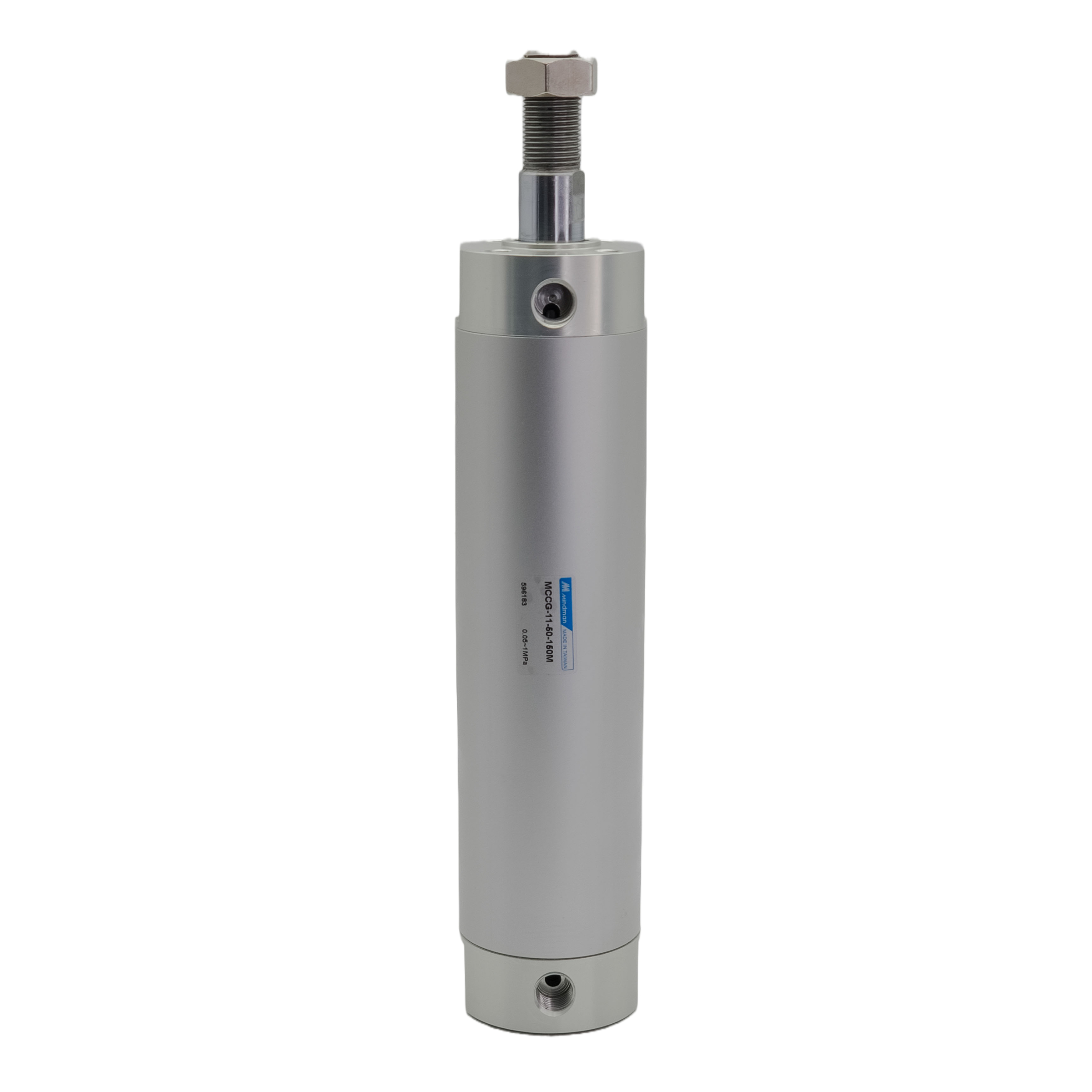

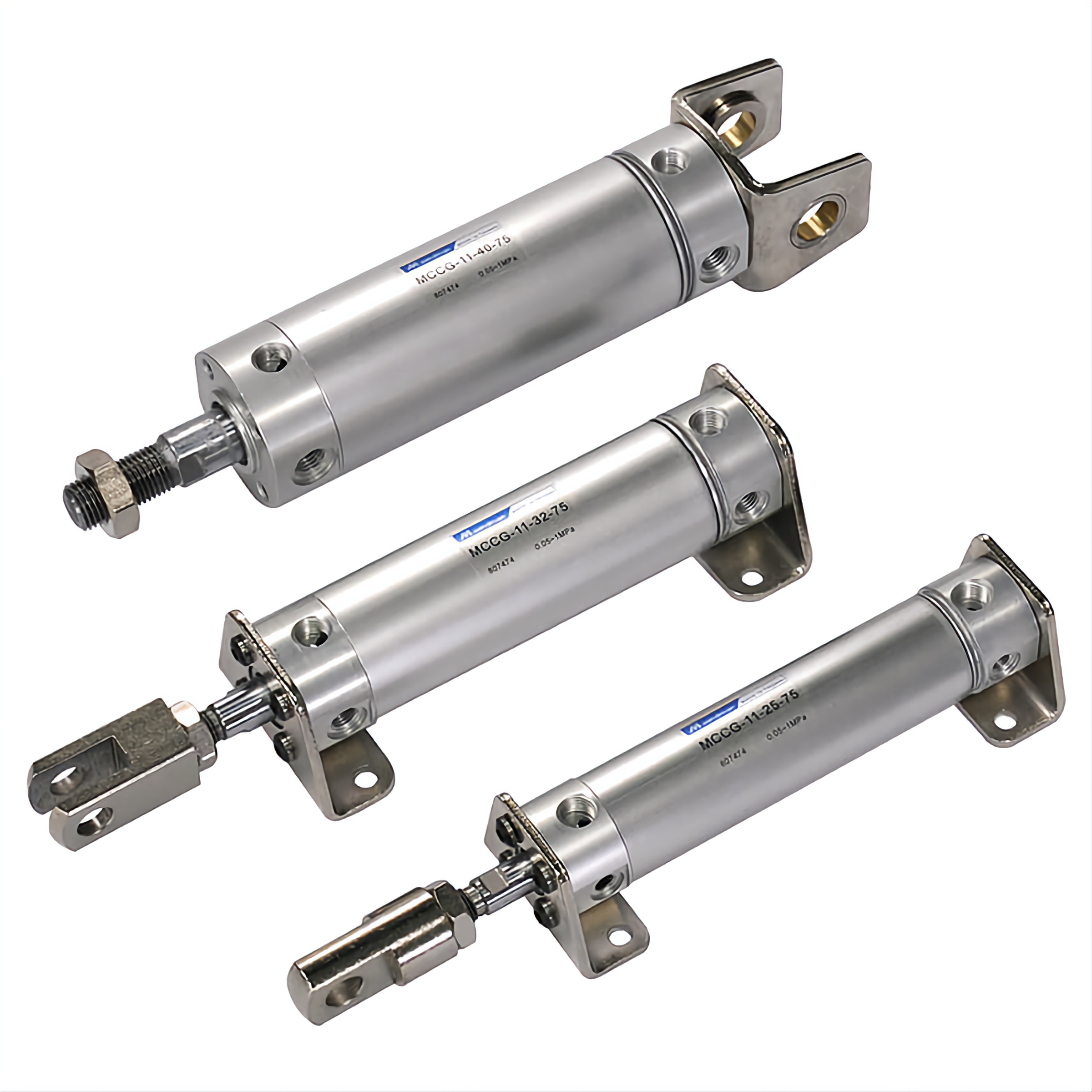

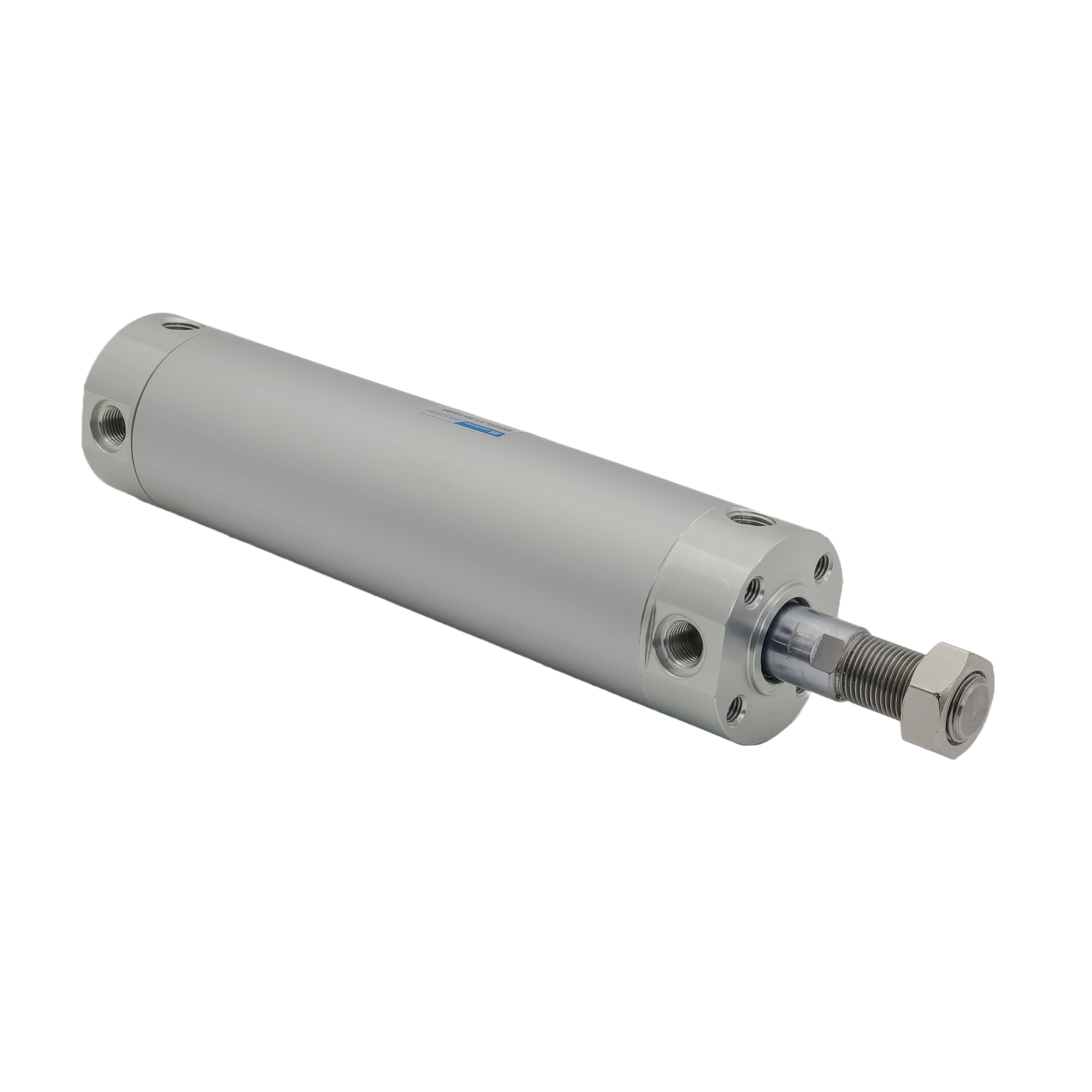

The Mindman MCCG series air cylinder is an ideal choice for all your industrial automation needs. With its high-quality construction and precision engineering, this air cylinder offers reliable and consistent performance in even the most demanding applications.
The MCCG series air cylinder is designed with a compact, lightweight design that makes it easy to install and use in a variety of settings. It boasts an advanced cushion mechanism that provides smooth and gentle stopping at the end of stroke, ensuring minimal impact and vibration.
This air cylinder is made of high-quality materials that are engineered to withstand tough conditions and deliver long-lasting performance. Its corrosion-resistant surface treatment ensures that it can stand up to harsh environments and the wear and tear of daily use.
The Mindman MCCG series air cylinder is available in a wide range of bore sizes and stroke lengths to meet your specific application requirements. It features adjustable cushioning to give you better control over deceleration speed and impact force.
Overall, if you need a reliable and high-performance air cylinder for your industrial automation needs, the Mindman MCCG series air cylinder is a great option. It is designed to deliver consistent, long-lasting performance and help you achieve your production goals with ease.
(MCCG)
Specifications
Acting type | Double acting |
---|---|
Tube I.D. (mm) | 20, 25, 32, 40, 50, 63, 80, 100 |
Port size | Rc1/8, Rc1/4, Rc3/8, Rc1/2 |
Medium | Air |
Max operating pressure | 1 MPa |
Min operating pressure | 0.05 MPa |
Proof pressure | 1.5 MPa |
Ambient temperature | -5~+60℃ (No freezing) |
Lubrication | Not required |
Available speed range | 50~500 mm/sec |
Max. allowable kinetic energy | Cushion pad 0.07~2.48 J Cushion air 0.09~4.18 J |
Sensor switch | RCM |
Sensor switch holder | BMG20~BMG100 |
