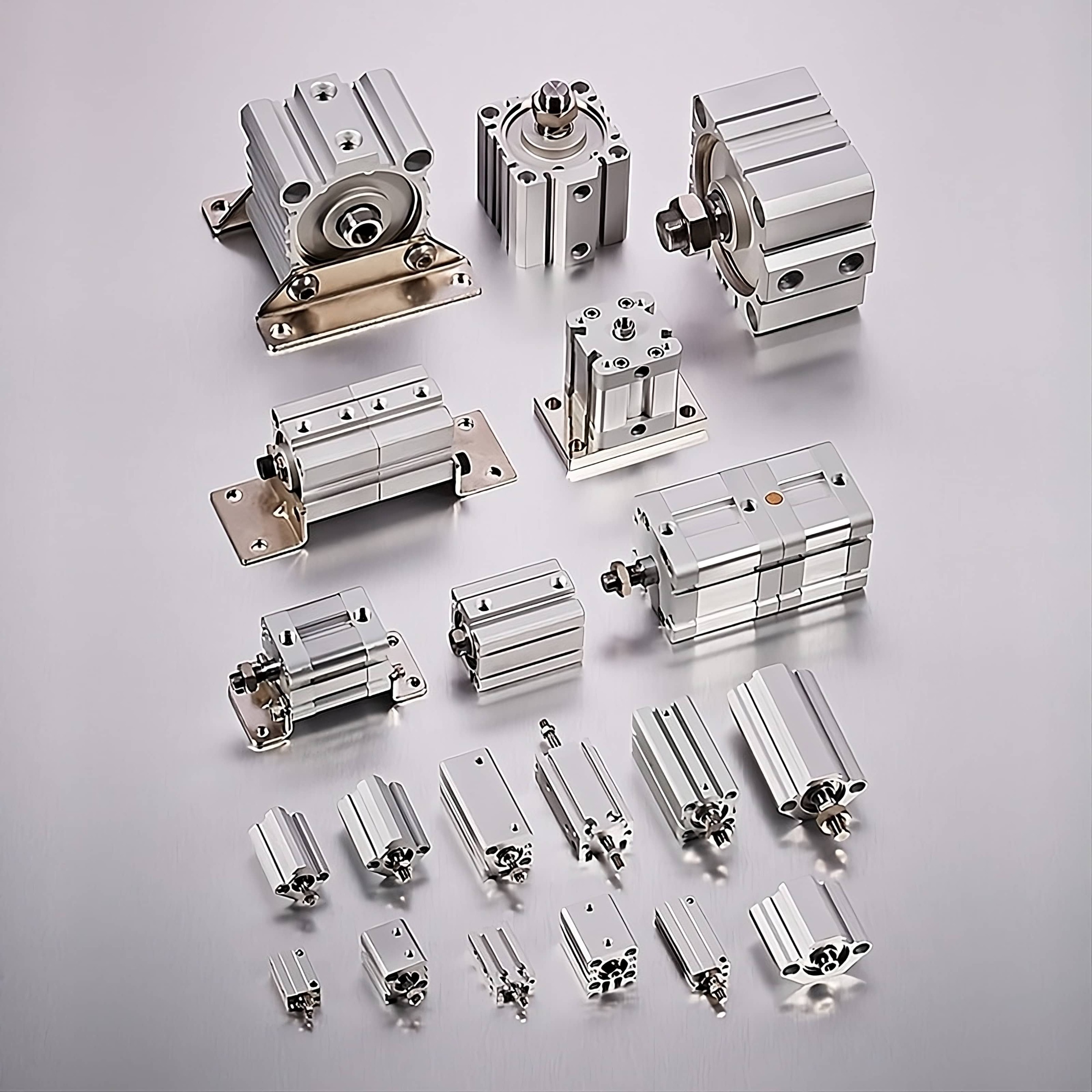

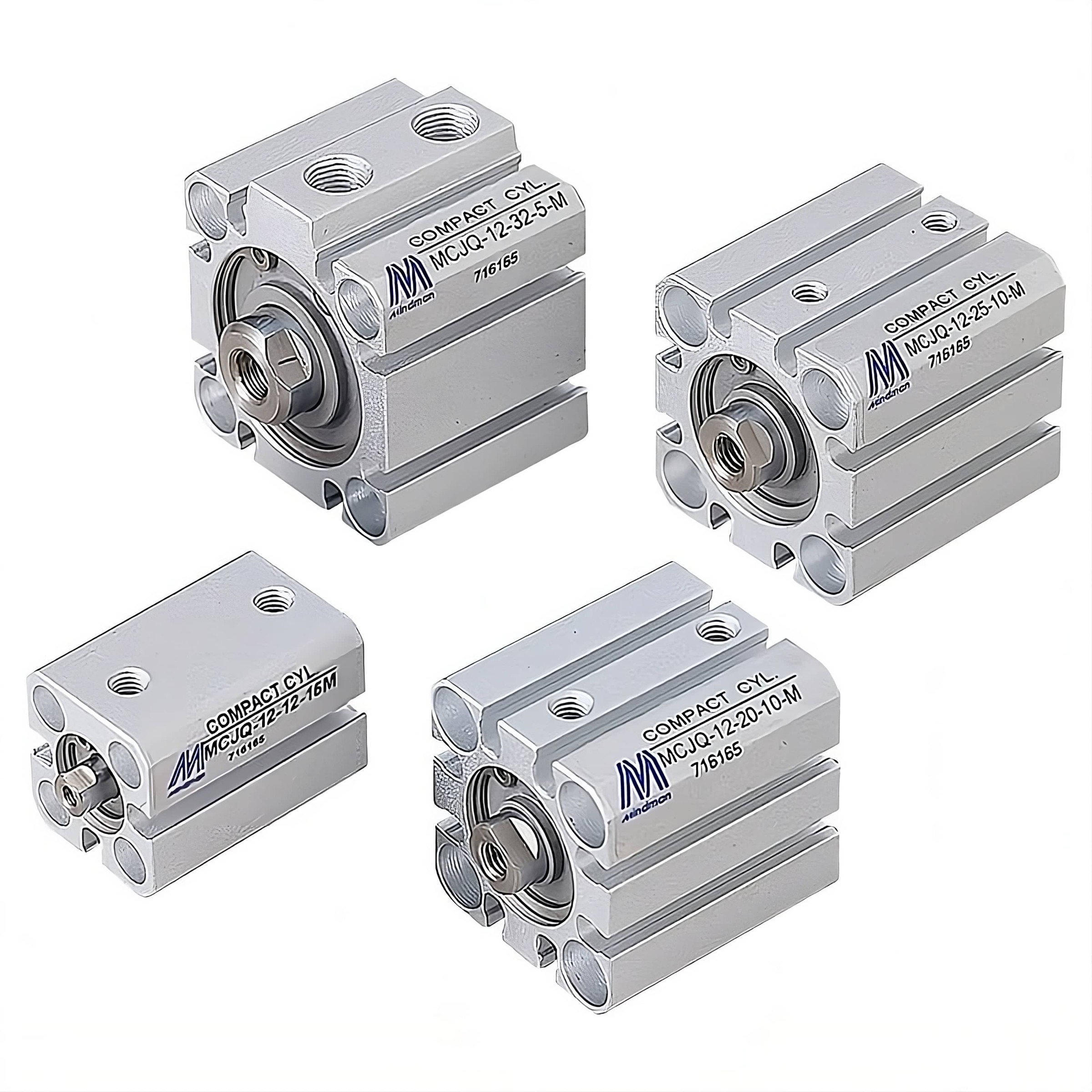

MCJQ | Double Acting Standard Compact Air Cylinder

Mindman MCJQ compact cylinders are a line of lightweight, compact, and space-saving pneumatic cylinders that are ideal for use in a variety of applications where space is limited. They are available in a wide range of bore sizes and strokes, making them suitable for a variety of loads and applications.

MCJQ cylinders feature a floating piston design that eliminates side loading on the rod, resulting in smooth and quiet operation. They are also equipped with a sensor groove that allows for the flush mounting of proximity sensors, further minimizing the cylinder's overall footprint.

In addition to their small size and quiet operation, MCJQ cylinders also offer a number of other benefits, including:

High load capacity
Durable construction
Long service life
Easy installation and maintenance

If you are looking for a compact, lightweight, and space-saving pneumatic cylinder for your application, Mindman MCJQ cylinders are a great option.

Here are some specific features of Mindman MCJQ compact cylinders:

Bore sizes: 12-100 mm
Strokes: 10-100 mm
Action: Single or double acting
Piston rod: Stainless steel or aluminum
Construction: Anodized aluminum tube, stainless steel piston rod
Sensor groove: Yes
Load capacity: Up to 10,000 N
Noise level: ≤70 dB
Service life: 100,000 cycles

MCJQ cylinders are ideal for use in a variety of applications, including:

Robots
Conveyors
Packaging machines
Medical equipment
Industrial automation

If you are looking for a compact, lightweight, and space-saving pneumatic cylinder for your application, Mindman MCJQ cylinders are a great option.

(MCJQ)

Specification

Model		MCJQ
Acting type		Double acting / Single acting							Double
Tube I.D. (mm)		12	16	20	25	32	40	50	63	80	100
Port size		M5×0.8				Rc1/8		Rc1/4		Rc3/8
Medium		Air
Operating perssure range (MPa)	Double acting	0.07~1		0.05~1
	Single acting	0.2~1		0.15~1		0.1~1			─
Proof pressure		1.5 MPa
Ambient temperature		-5°C~+60°C (No freezing)
Available speed range		50~500 mm/sec
Sensor switch (*)	RCB	─
	RCE,RCE1
	RDEP			─		─

* RCB, RCE, RCE1, RDEP specification, please refer to page 8-10, 12, 13, 18.

Single acting – Table for standard stroke

Tube I.D.	Standard stroke (mm)
ø12,16,20,25,32,40	5,10
ø50	5,10,15,20

Double acting – Table for standard stroke

Tube I.D.	Standard stroke	Long stroke (mm)
ø12,16	5,10,15,20,25,30	35,40,45,50,75,100
ø20	5,10,15,20,25,30, 35,40,45,50	75,100,125,150,175,200
ø25	5,10,15,20,25,30, 35,40,45,50	75,100,125,150,175,200,250,300
ø32~80	5,10,15,20,25,30, 35,40,45,50,75,100	125,150,175,200,250,300
Tube I.D.	Standard stroke (mm)
ø100	5,10,15,20,25,30,35,40,45,50,75,100

* Please contact us if the stroke is out of specification.

Acting type	Double acting / Single acting
Tube I.D. (mm)	12, 16, 20, 25, 32, 40, 50, 63, 80, 100
Port size	M5×0.8, Rc1/8, Rc1/4, Rc3/8
Medium	Air
Operating pressure range	0.05~1 MPa
Proof pressure	1.5 MPa
Ambient temperature	－5℃~＋60℃ (No freezing)
Available speed range	50~500 mm/sec
Sensor switch	RCE, RCE1, RDEP (φ12~40mm) , RCE, RCE1, RDEP (φ50~100mm)
