BPA | Stainless Steel 316 Adjustable High Pressure
- Ports size: 1/8″ – 1/4″ BSPT

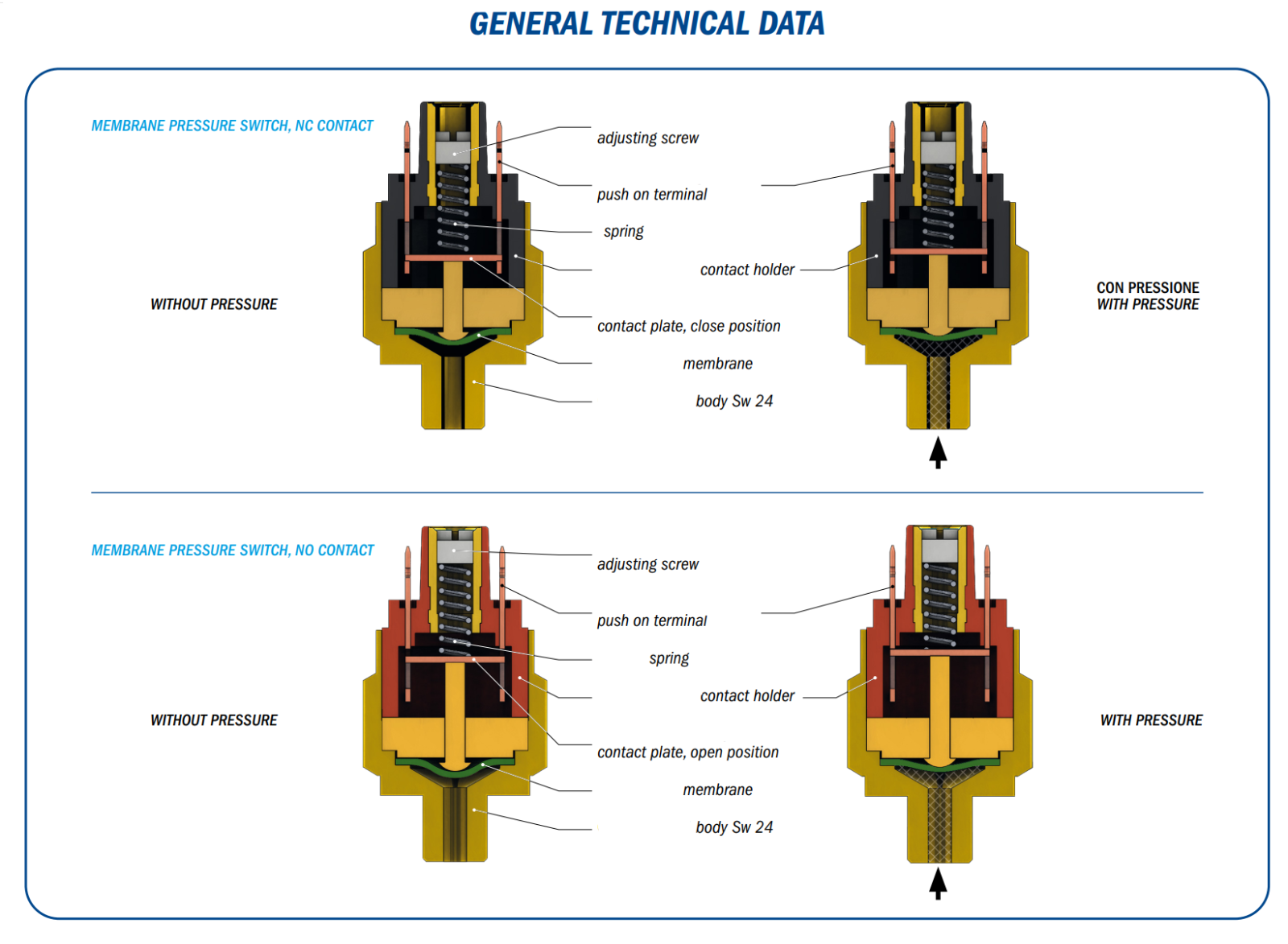

- Function: NC, NO, SPDT
- Body material: Stainless Steel 316
AU $219.67
Technical Data
Switch rating | 6(2)A / 250Vac2(1)A / 24Vdc |
Electrical connection | Push-on terminals 6,3×0,8 |
Adjusting range | 0.2…2 bar; 1…10 bar; 10…50 bar; 10…100 bar; 30…150 bar; 50…300 bar |
Max static pressure | 300 bar, 600 bar (according to the possible pressure range and the body material) |
Hysteresis | ca. 15% set-point adjustment |
Operating temperature | -30C… +140C (according to diaphragm/piston seal material) |
Contact (without pressure) | SPDT |
Body material | Brass – Zinc plated steel – S.S. 316 on request for all models |
Diaphragm/Piston seal | HNBR – FKM – Red silicone – EPDM – Neoprene – Stainless Steel only for MS2 e MS10 models max. pressure static 40 bar (-30C to +40C) |
Threads | Taper: G1/8 BSPT –G1/4BSPT –M10x1 Parallel: M12x1.5 – G1/4 BSPP – G1/8 BSPP |
Protection | IP00 (terminals)IP65 (with CAP13)IP54 (with CAP16) |
Mechanical life | 106 operations |

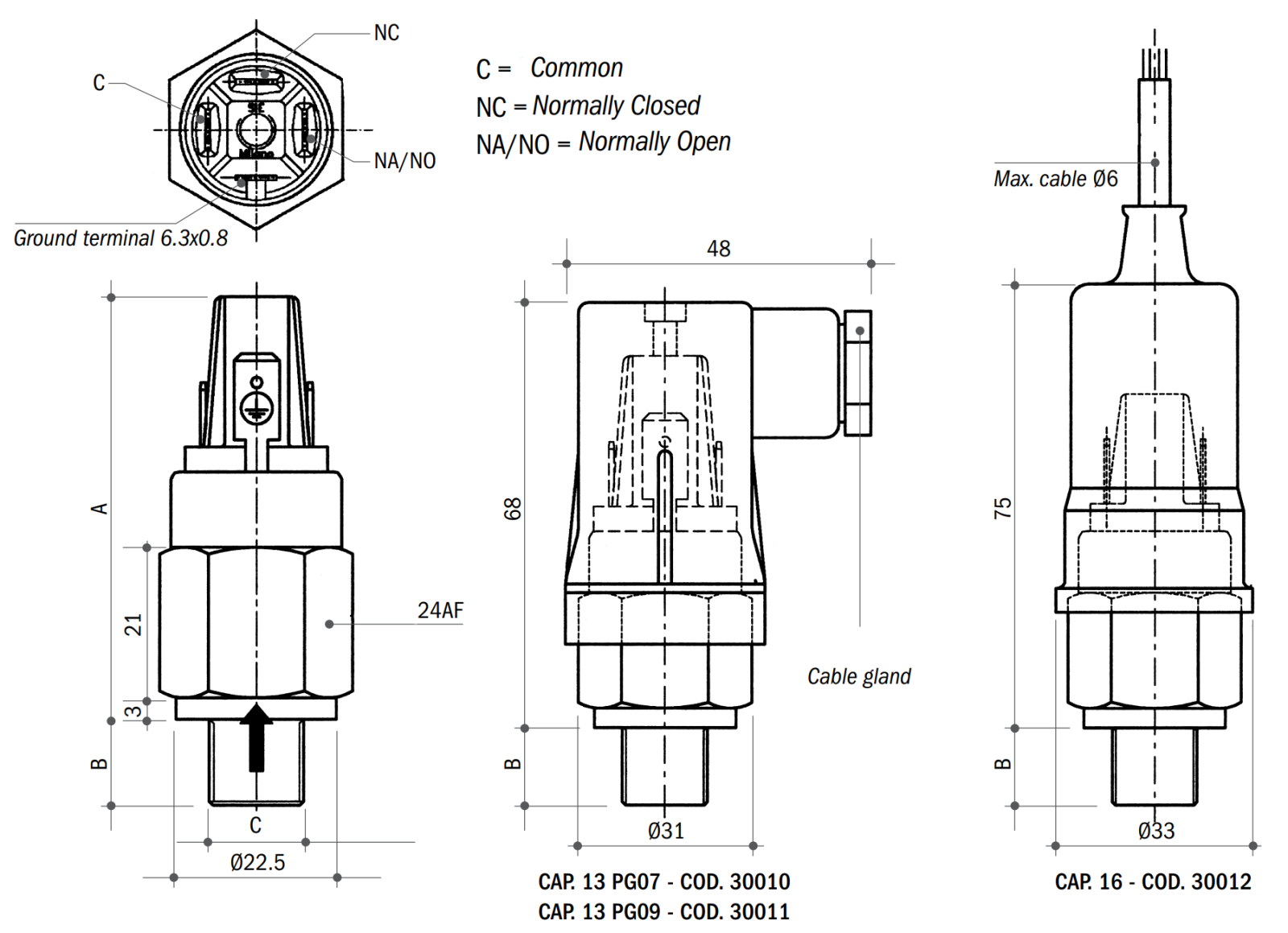

Size | Body 24 AFMax height 57mm |
Certifications and Approvals | CE |
Options | Set-point adjustment rising Set-point adjustment falling Gold contacts Degreasing for oxygen applications Gas test High pressure execution IP67 protection Special thread connections |

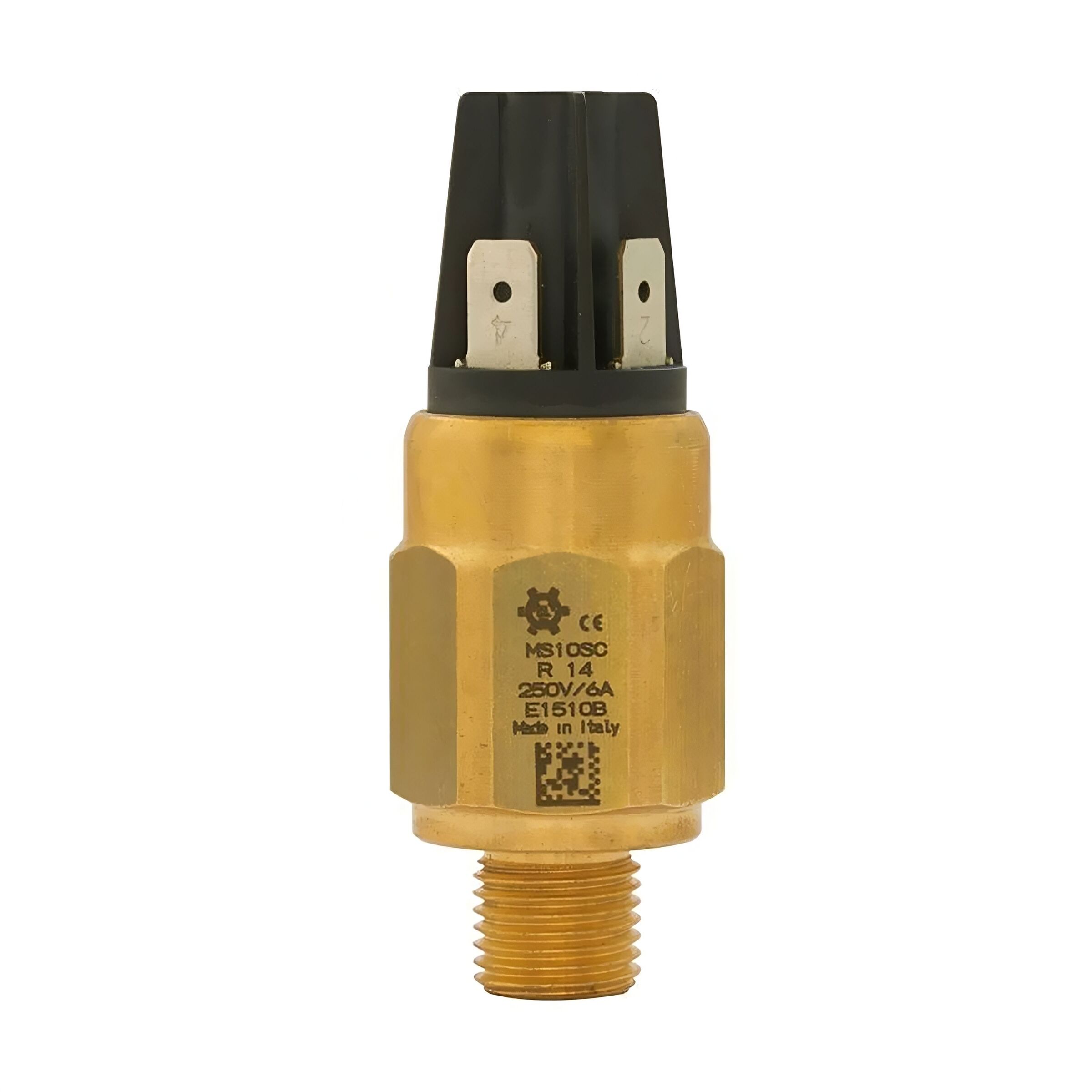

(MS-PS-BRASS)
Technical Data
Max. voltage | 250 Vac |
Working voltage | 230 Vac / 28 Vdc |
Switching currents | 7 A 28 Vdc / 7 A ( 4A ind. ) 250 Vac |
Electric contact | SPDT |
Environment temperature | -40°C…+120°C |
Fluid temperature | see gasket table |
Maximum protection grade | IP 67 |
Electrical connector | Fast-on / DIN 43650 / M12/ Deutsch |
Mechanical life | 1.000.000 cycle at 25°C |
Recommended tightening torque | min. 3 Kgm ÷ max. 5 Kgm see page 3 |
Approval | CE; UL (in progress) |
