- Port Size(inch): 1/4" - 3/4" BSPT
- Operating Pressure: 0.05~1 MPa
- Ambient temperature: -5~+60℃ (No freezing)
- Medium: Air
AU $31.79
Bore No. | 8A |
---|---|
Port size | 1/4" |
No. of port | 5 |
No.of position | 2,3 |
Medium | Air |
Operating pressure range | 0~0.8 MPa |
Effective orifice | 16mm2,18 mm2 |
Ambient temperature | -5~+60℃ (No freezing) |
Weight | 193g, 234g |
Port size: 1/8,1/4, Operating pressure range: 0~0.8 MPa, Effective orifice: 18 mm2.
Bore No. | 6A(4P),8A(3P)(4P) |
---|---|
Port size | 1/8(4P),1/4(3P)(4P) |
No. of port | 3(3P), 5(4P) |
No.of position | 2 |
Medium | Air |
Operating pressure range | 0~0.8 MPa |
Effective orifice | 18 mm2 |
Ambient temperature | -5~+50℃ (No freezing) |
Weight | 151 g (3P), 170 g (4P) |
Port size: 1/2, Operating pressure range: 0~1.2 MPa, Ambient temperature: -5~+60℃ (No freezing).
Bore No. | 15A |
---|---|
Port size | 1/2" |
No. of port | 5 |
No.of position | 2,3 |
Medium | Air |
Operating pressure range | 0~1.2 MPa |
Effective orifice | 41 mm2 |
Ambient temperature | -5~+60℃ (No freezing) |
Weight | 519 g , 560 g |

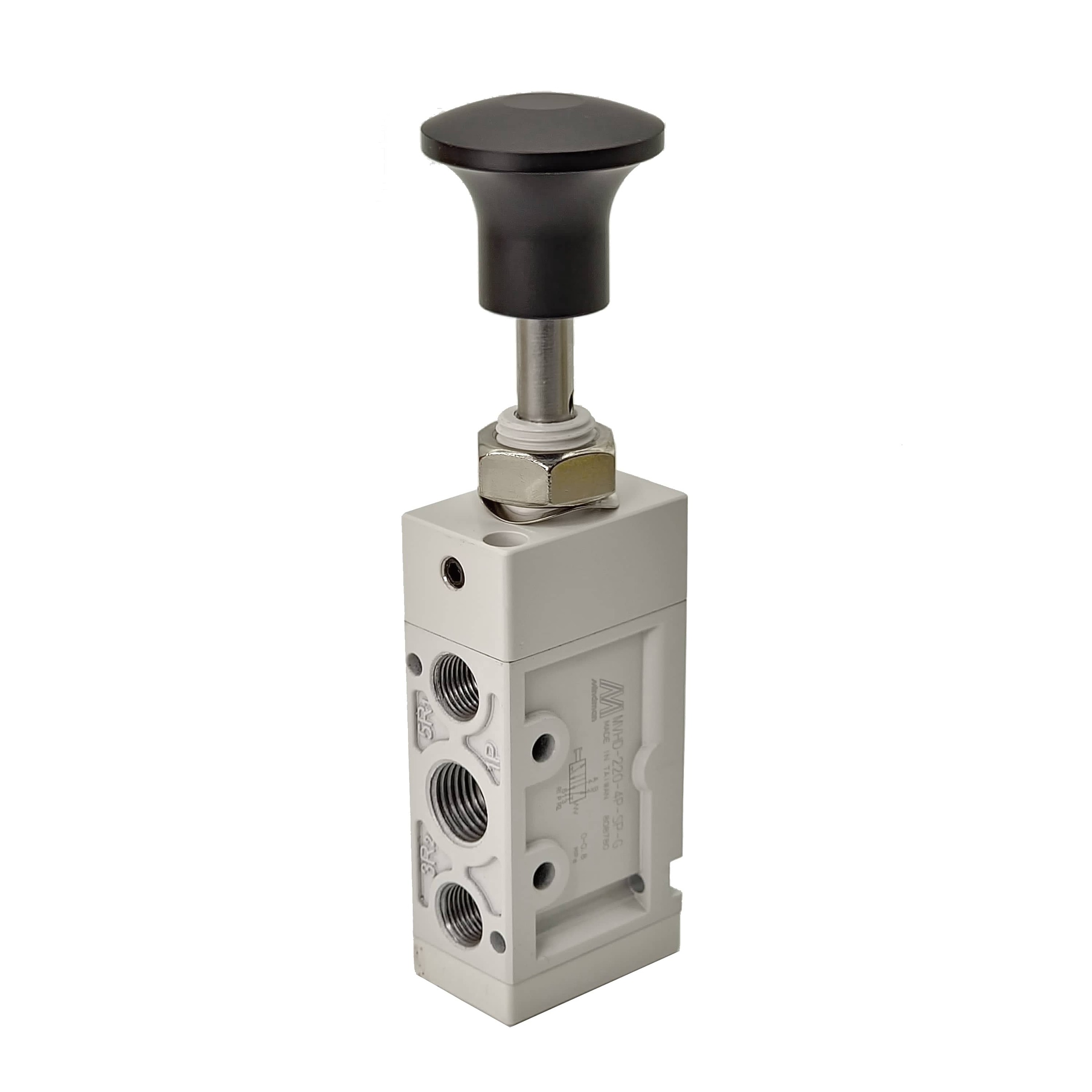

(MVHB-220)
Bore No. | 8A |
---|---|
Port size | Rc1/4 |
No. of port | 5 |
No.of position | 2,3 |
Medium | Air |
Operating pressure range | 0~0.8 MPa |
Effective orifice | 16mm2,18 mm2 |
Ambient temperature | -5~+60℃ (No freezing) |
Weight | 193g, 234g |
Port size: 1/8,1/4, Operating pressure range: 0~0.8 MPa, Effective orifice: 18 mm2.
Bore No. | 6A(4P),8A(3P)(4P) |
---|---|
Port size | 1/8(4P),1/4(3P)(4P) |
No. of port | 3(3P), 5(4P) |
No.of position | 2 |
Medium | Air |
Operating pressure range | 0~0.8 MPa |
Effective orifice | 18 mm2 |
Ambient temperature | -5~+50℃ (No freezing) |
Weight | 151 g (3P), 170 g (4P) |
Port size: 1/2, Operating pressure range: 0~1.2 MPa, Ambient temperature: -5~+60℃ (No freezing).
Bore No. | 15A |
---|---|
Port size | 1/2 |
No. of port | 5 |
No.of position | 2,3 |
Medium | Air |
Operating pressure range | 0~1.2 MPa |
Effective orifice | 41 mm2 |
Ambient temperature | -5~+60℃ (No freezing) |
Weight | 519 g , 560 g |
AU $31.79
