MVQE | Pneumatic Quick Exhaust Valve
- Port Size(inch): 1/8" - 3/4" BSPT
- Pressure Range: 0.1~1 MPa
- Ambient temperature -5~+60℃ (No freezing)
- Medium: Air
AU $40.15
Model |

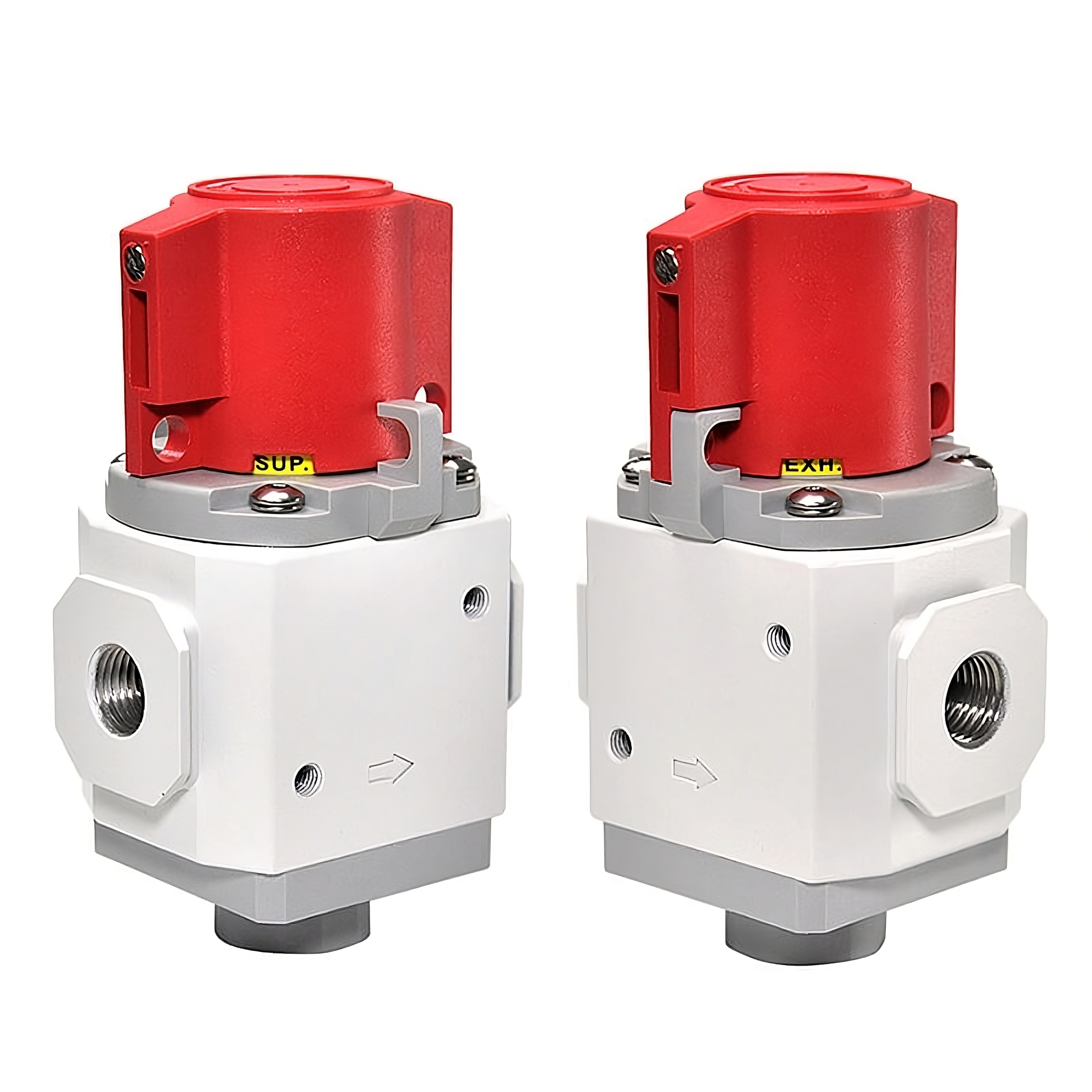

MVHR (Manual type) |
---|---|
Bore No. |

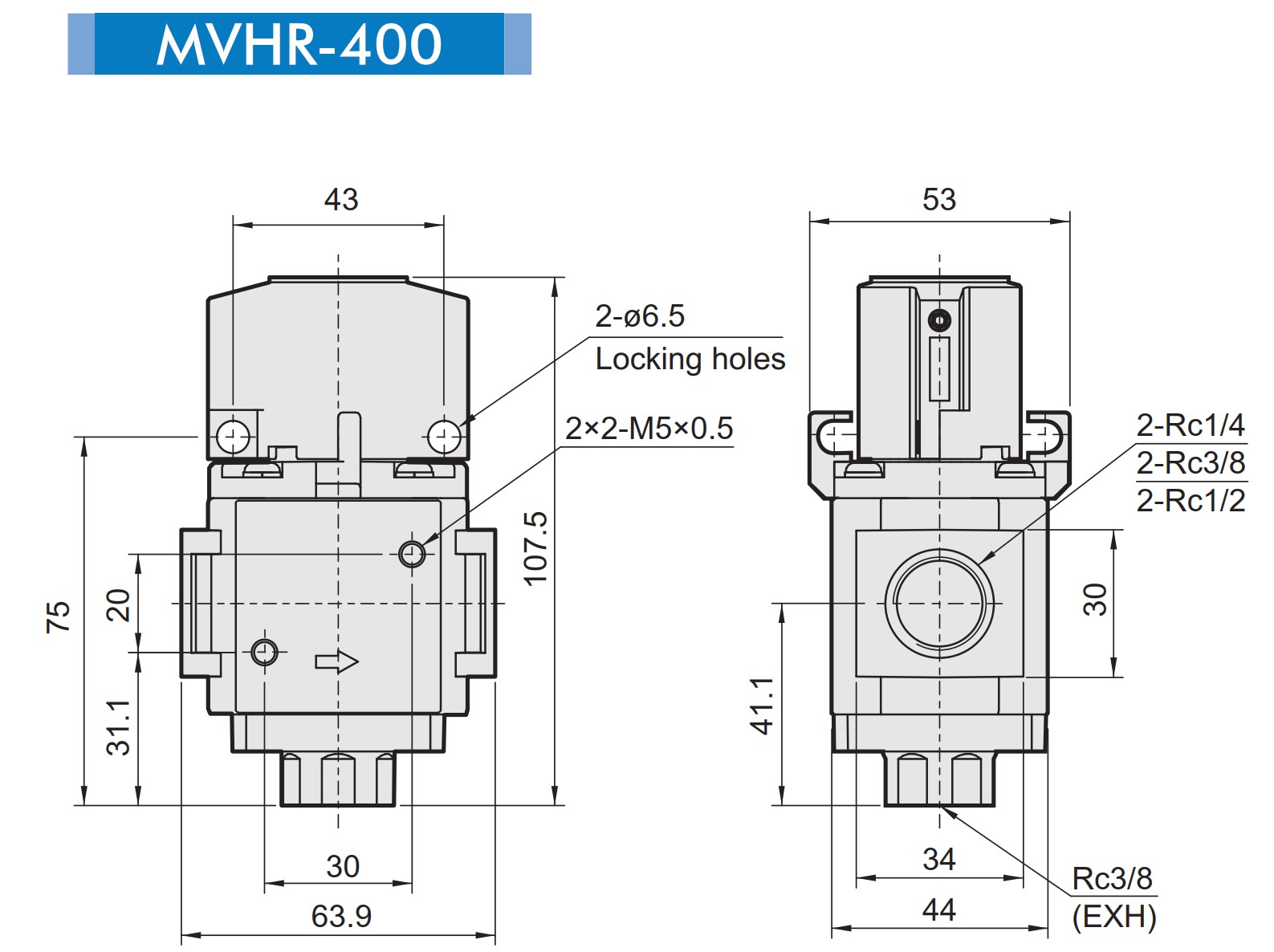

300 (8A,10A) ; 302 (8A,10A,15A) ; 400 (8A,10A,15A) |
Port size | 1/4 (8A), 3/8 (10A), 1/2 (15A) |
No. of port | 3 |
No.of position | 2 |
Medium | Air |
Operating pressure range | 0.1~1 MPa |
Proof pressure | 1.5 MPa |
Effective orifice | IN→OUT: 39~66 mm2 OUT→EXH: 39~58 mm2 |
Ambient temperature | -5~+60℃ (No freezing) |
Weight | 304 g ~ 323 g |
Model |

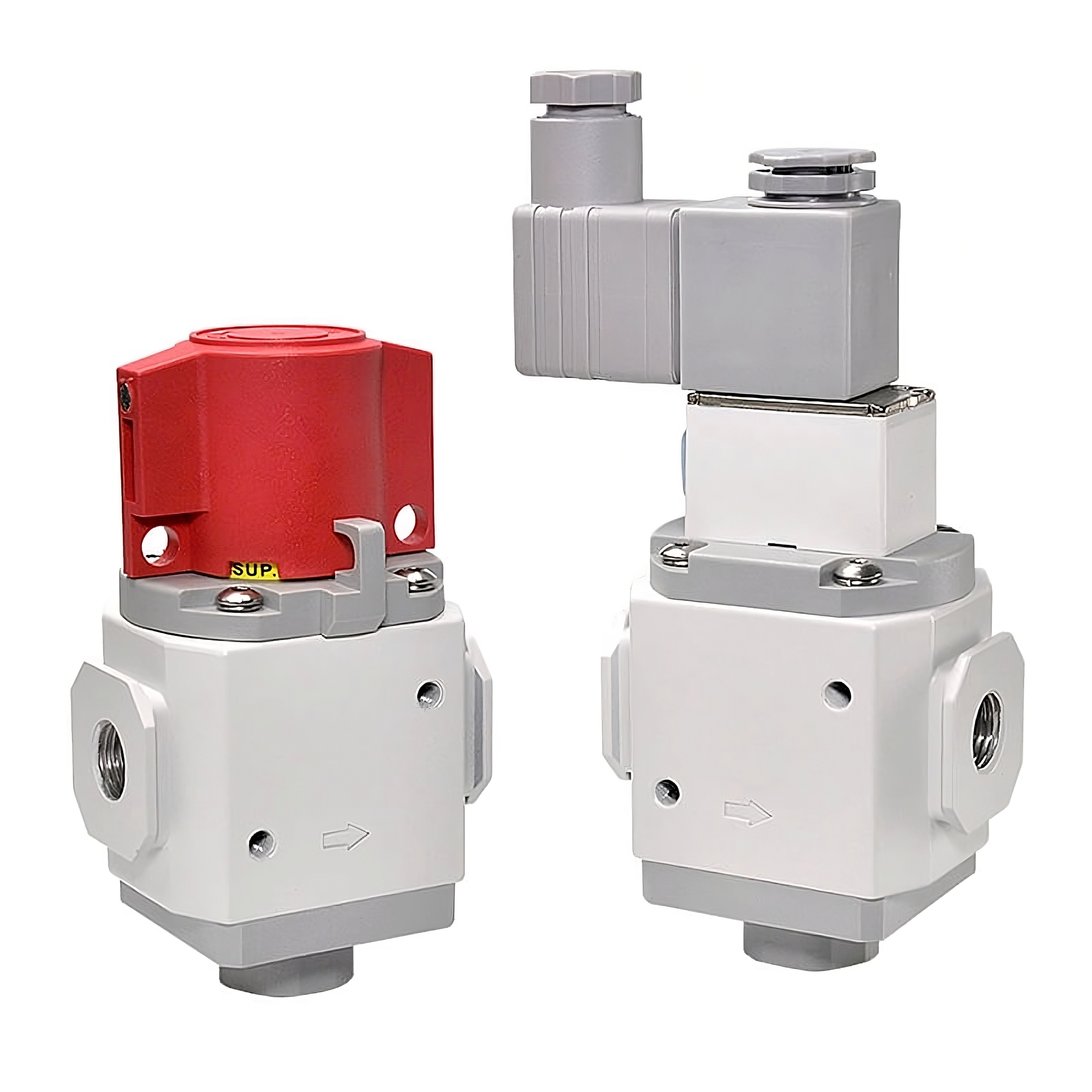

MVHR (Solenoid type) |
---|---|
Bore No. |
300S (8A,10A) ; 302S (8A,10A,15A) ; 400S (8A,10A,15A) |
Port size | 1/4 (8A), 3/8 (10A), 1/2 (15A) |
No. of port | 3 |
No.of position | 2 |
Medium | Air |
Operating pressure range | 0.15~1 MPa |
Proof pressure | 1.5 MPa |
Effective orifice | IN→OUT: 39~66 mm2 OUT→EXH: 39~58 mm2 |
Ambient temperature | -5~+60℃ (No freezing) |
Voltage | AC110V, 220V (50/60)Hz, DC24V |
Power consumption | AC=4.8/4.4VA, 6/4.9VA, DC=2W |
Available voltage range | ±10% |
Insulation class | F class |
Weight | 304 g ~ 397 g |
(MVHR)
Model |
MVHR (Manual type) |
---|---|
Bore No. |
300 (8A,10A) ; 302 (8A,10A,15A) ; 400 (8A,10A,15A) |
Port size | 1/4 (8A), 3/8 (10A), 1/2 (15A) |
No. of port | 3 |
No.of position | 2 |
Medium | Air |
Operating pressure range | 0.1~1 MPa |
Proof pressure | 1.5 MPa |
Effective orifice | IN→OUT: 39~66 mm2 OUT→EXH: 39~58 mm2 |
Ambient temperature | -5~+60℃ (No freezing) |
Weight | 304 g ~ 323 g |
Model |
MVHR (Solenoid type) |
---|---|
Bore No. |
300S (8A,10A) ; 302S (8A,10A,15A) ; 400S (8A,10A,15A) |
Port size | 1/4 (8A), 3/8 (10A), 1/2 (15A) |
No. of port | 3 |
No.of position | 2 |
Medium | Air |
Operating pressure range | 0.15~1 MPa |
Proof pressure | 1.5 MPa |
Effective orifice | IN→OUT: 39~66 mm2 OUT→EXH: 39~58 mm2 |
Ambient temperature | -5~+60℃ (No freezing) |
Voltage | AC110V, 220V (50/60)Hz, DC24V |
Power consumption | AC=4.8/4.4VA, 6/4.9VA, DC=2W |
Available voltage range | ±10% |
Insulation class | F class |
Weight | 304 g ~ 397 g |
