Brass Auto Drain Solenoid Valve with Timer On 0.5
- Ports size: 1/4″ - 1" BSPP
- Orifice size: 8.0 – 25.0 mm
- Manual override: Slot
- Body material: Brass
AU $280.28
This is a 5 ported 4 Way Directional Control Valve used to move cylinders or actuators. Supply pressure must be supplied to the center port on the side of the valve with the 3 ports. The outlet ports on the opposite side are connected to each side of a cylinder or actuator. The pressure will hold the cylinder in one position while the other side of the cylinder is exhausted. When voltage is applied to the solenoid end of the valve, the valve spool will shift causing air to go to the opposite side of the cylinder while exhausting the side that was pressurized. This causes the cylinder to shift (or extend). When the voltage is removed, a spring with an air assist will return the spool causing the cylinder to return to it's "at rest" position. Mufflers may be added to the exhaust ports to quiet the air exhausting. Adjustable Exhaust restrictors may be used to in the exhaust ports to control the speed of the cylinder. If flow controls are used, they should always be placed in the lines between the cylinder and the outlet ports and control the air flow as it exhausts from the cylinder. This is a Namur Solenoid Valve which conforms to standards for mounting on an actuator using oring seals (Included).

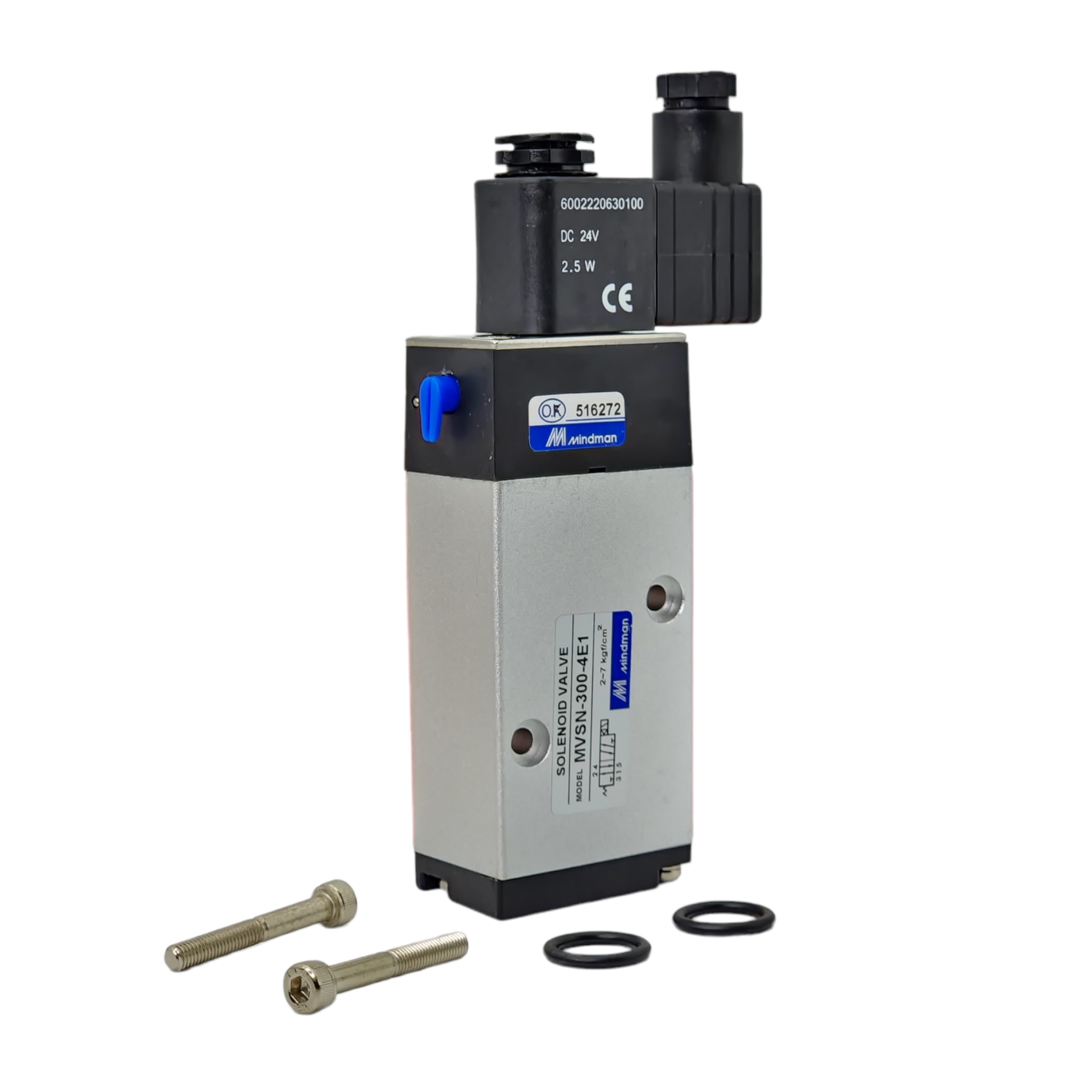

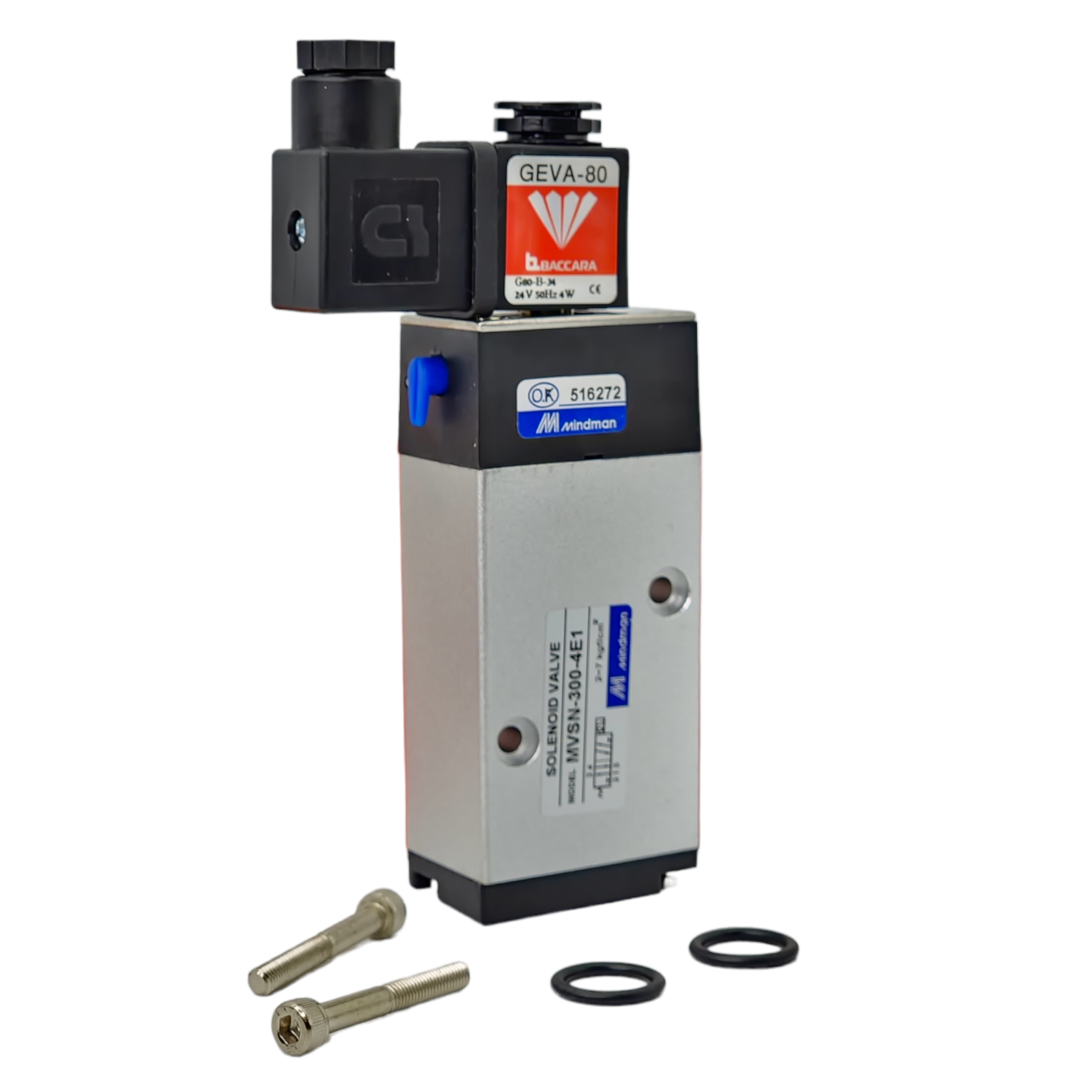

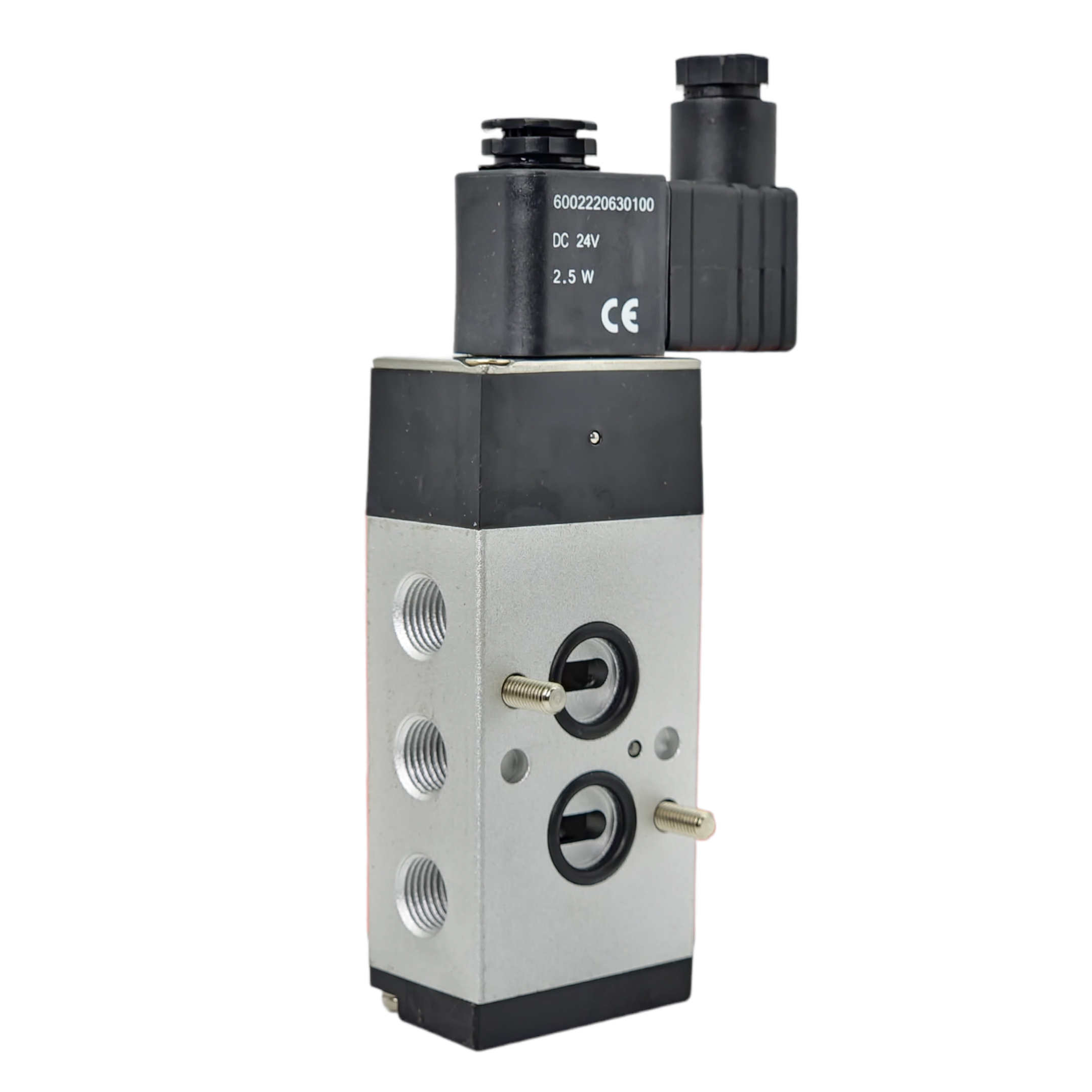

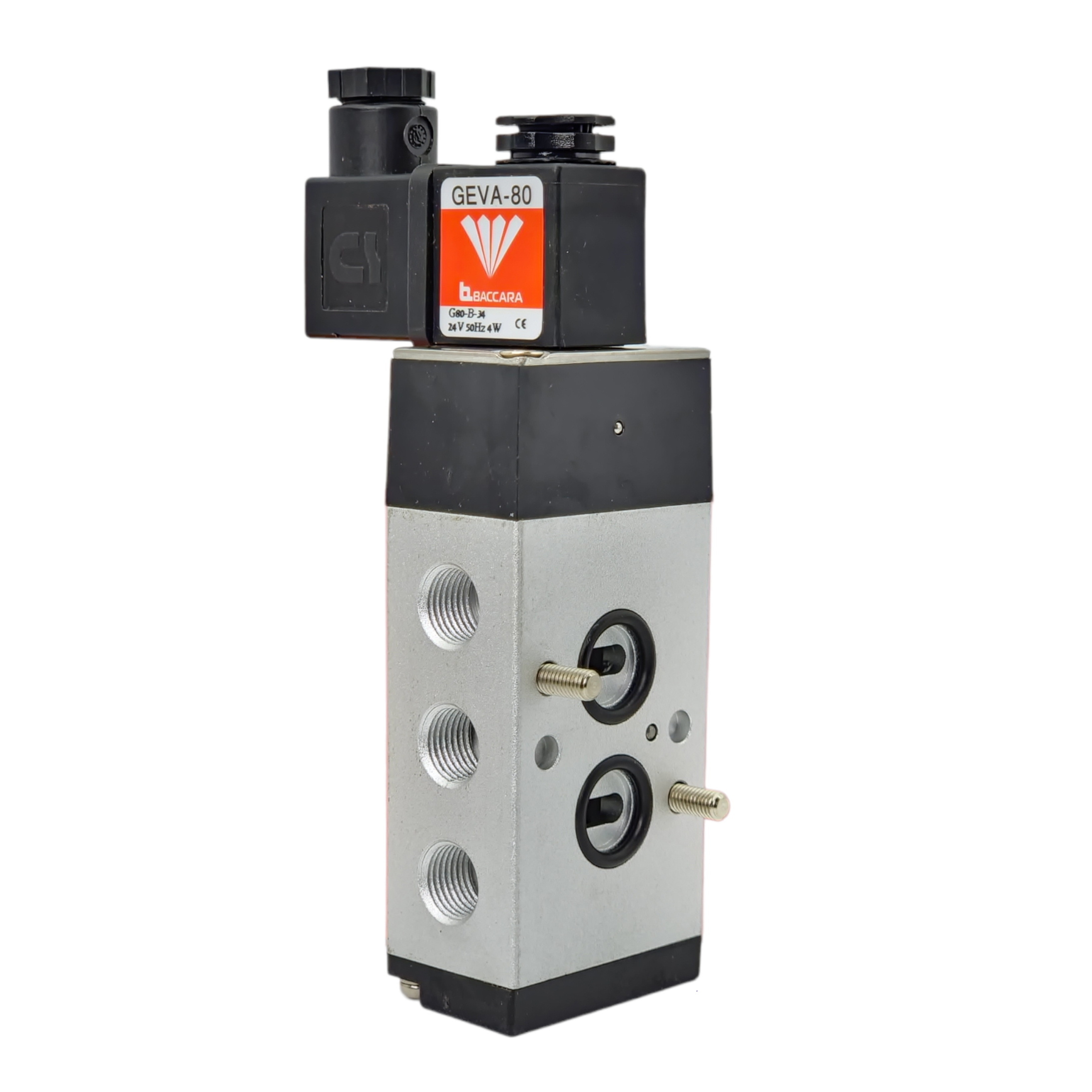

(MVSN-300)
Body width: 30 mm,Port size: G1/4, Operating pressure range: 0.2~0.8 MPa, Proof pressure: 1 MPa, Flow: 1906, 1633 l/min.
Body width | 30 mm |
---|---|
Bore No. | 8A |
Port size | G1/4 |
No. of port | 5 |
No. of position | 2 |
Medium | Air |
Operating pressure range | 0.2~0.8 MPa |
Proof pressure | 1 MPa |
Effective orifice | 35 mm2 |
Response time | 50 ms |
Ambient temperature | -5~+50℃ (No freezing) |
Voltage | AC110V, 220V (50/60)Hz, DC24V |
Power consumption | AC=4.8/4.4VA, 6/4.9VA ; DC=2W |
Available voltage range | ±10% |
Insulation class | F class |
Weight | 422g~580g |
