STC | Pressure Transducer Sensing Element: Piezo R
- Ports size: 1/4″ BSPP
- Pressure: -1 to 1000 Bar ( -14.5 to 14,500 PSI )
- Body material: SS304
AU $426.25
The VTC pressure transducer offers high quality, stainless steel, high stability, compact design for use in air compressors, air conditioning and refrigeration equipment, automotive and hydraulic controls.
Size |
1/4″ BSPP |
Body Material |
304 Stainless Steel |
Pressure Range |
0 - 21 Bar (0 - 138 bar) |
How to choose a suitable pressure transducer?
If you need a pressure transducer for your project, you should compare the features of different models before making a decision. Here are some of the main differences between the XTC, VTC and STC series:
- The XTC series is a durable option that can withstand temperatures as low as -40º C. However, it has a ceramic element that can break if exposed to sudden pressure spikes, so it is not recommended for applications that involve such risks.
- The VTC series also uses a ceramic element, but it has a special mechanism that protects it from shattering in case of pressure spikes. It can also operate at temperatures as low as -40º C.
- The STC series has a silicon piezo chip element that is more resilient to pressure spikes and other harsh conditions. However, it can only tolerate temperatures up to -20º C, so it is not suitable for very cold environments.

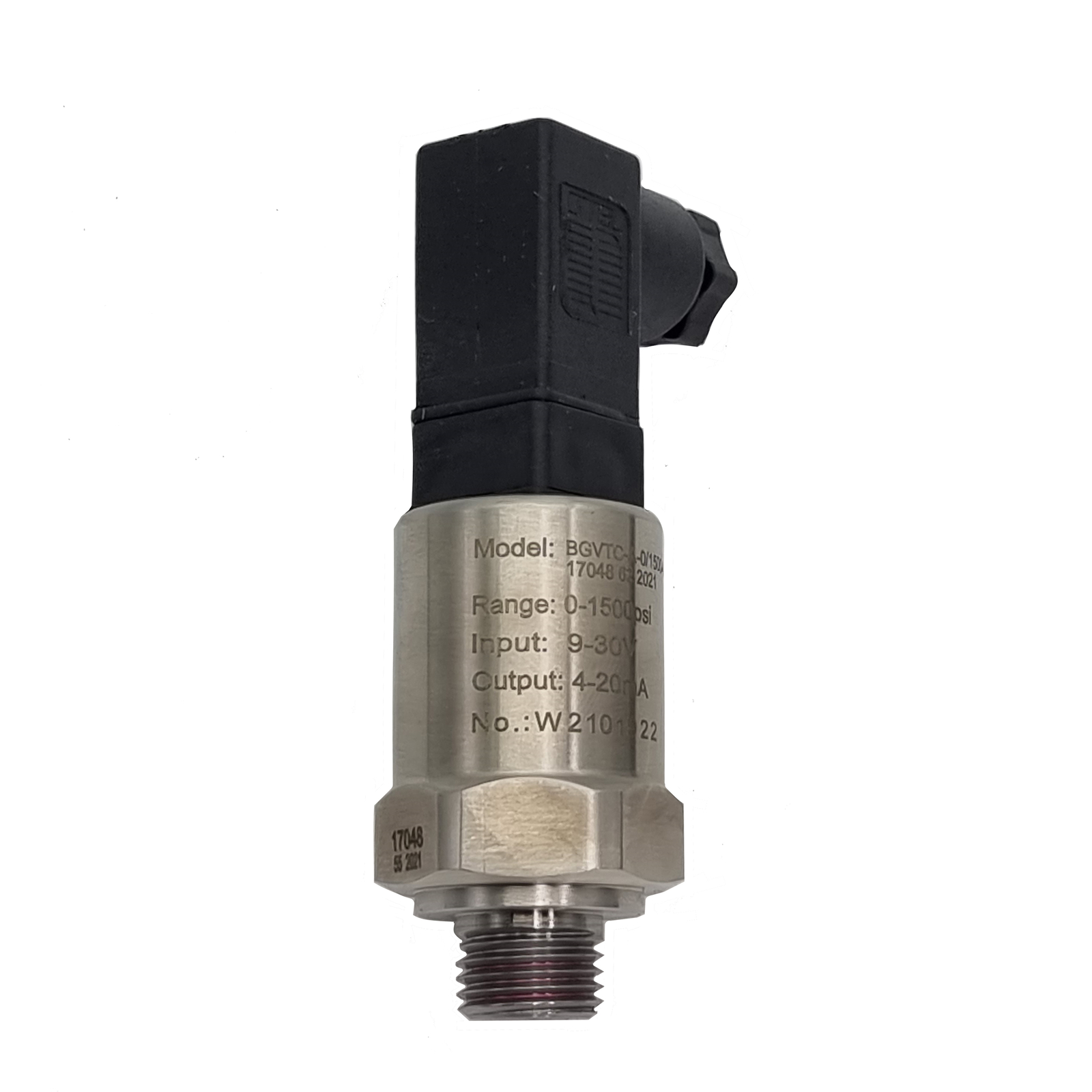

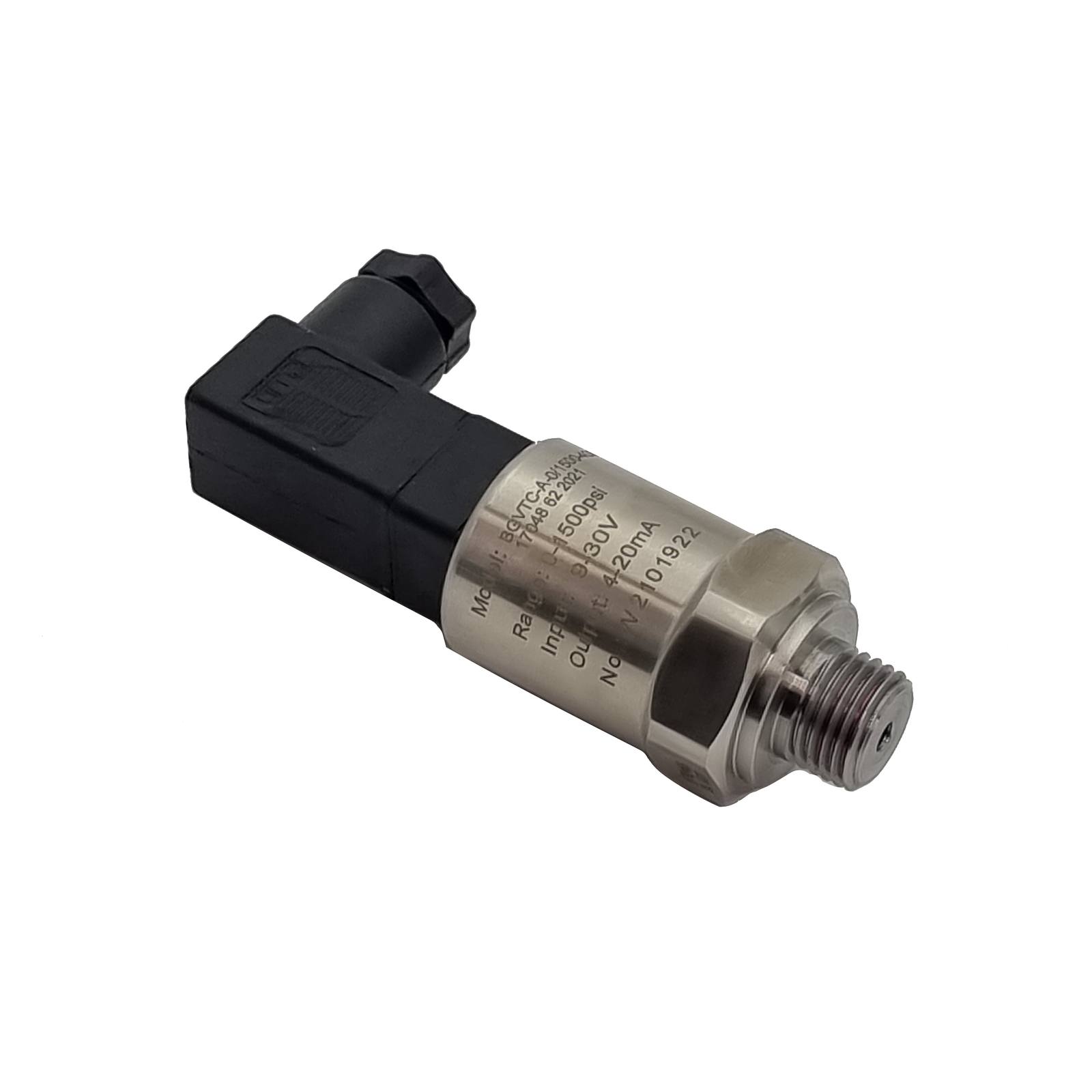

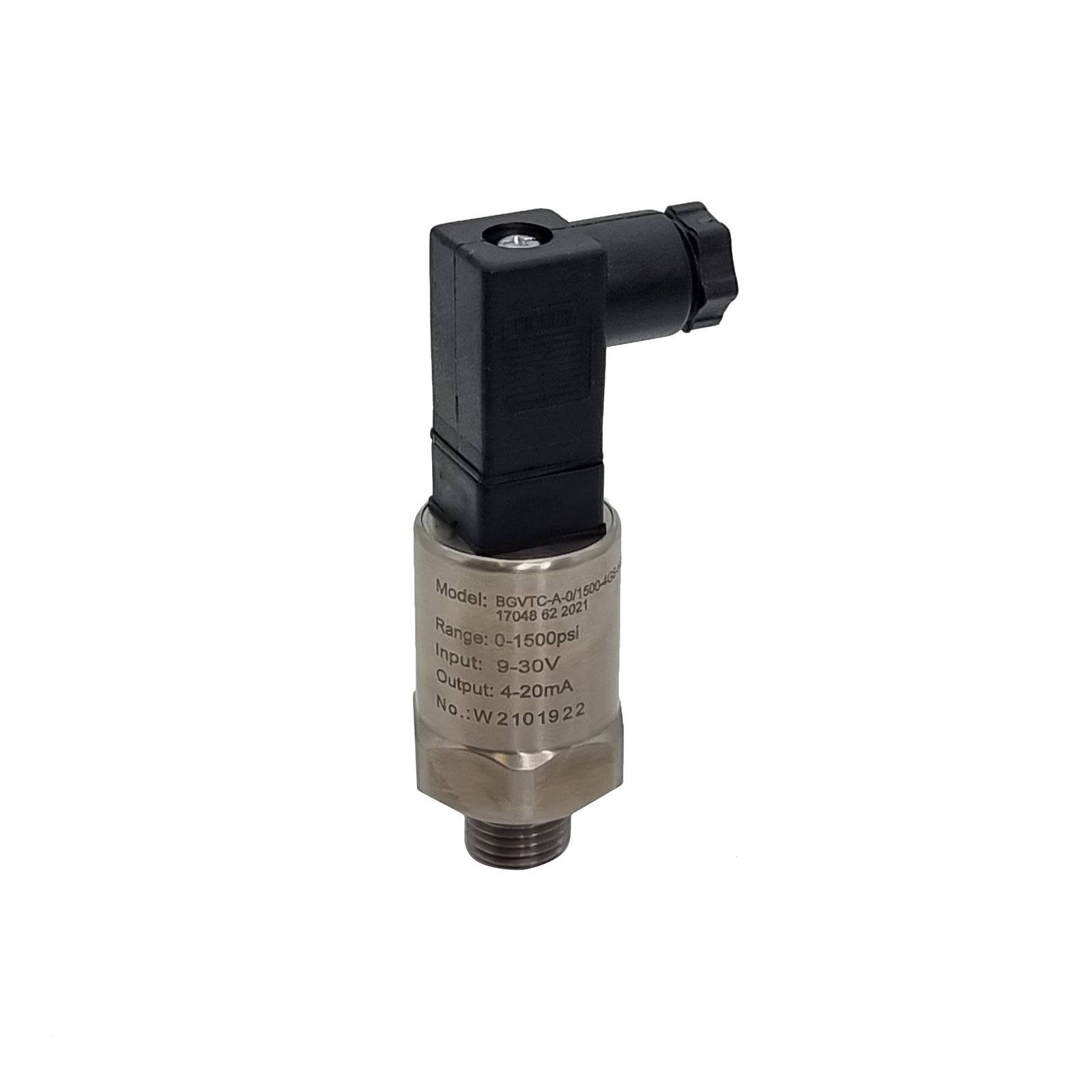

(VTC-A)
Technical Data
Ports size | 1/4" BSP |
Pressure Range | 0 - 52 Bar (0 - 750 PSI) Gauge Pressure |
Overload Pressure | 1.5 x Full Scan |
Burst Pressure | 3.0 x Full Scan |
Operating Temperature | -40° to 275°F (-40° to 135°C) |
Compensation Temperature | --4° to 158°F (-20° to 70°C |
Response Time | <1 millisecond |
Materials in contact with media |
Wetted Area: Ceramic Body: 304 Stainless Steel |

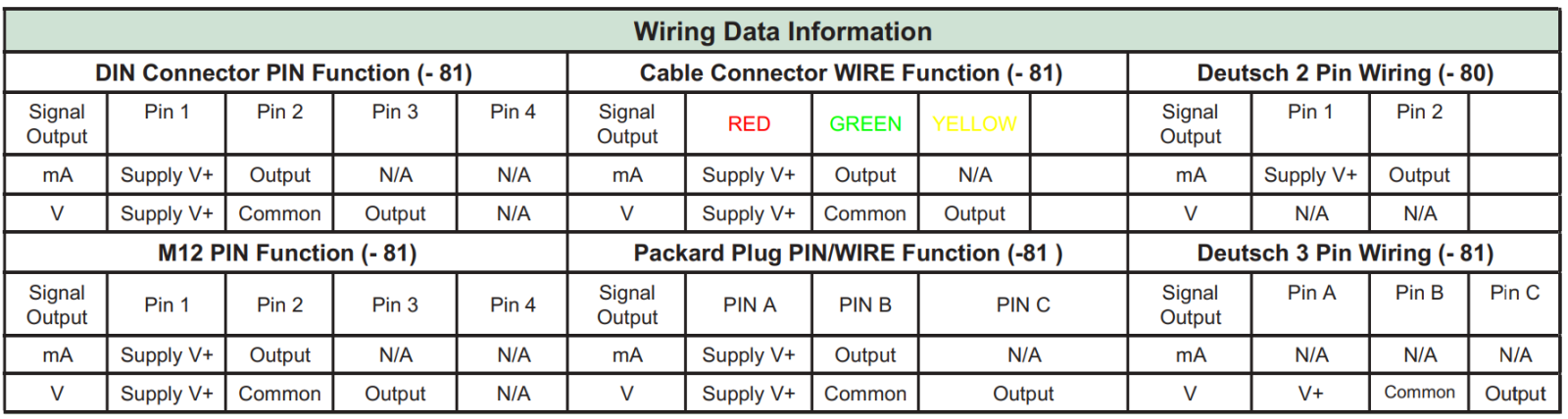

Electrical | Supply: 9 - 30 VDC (2 wires), 5 VDC (3 wires) Output: 4 - 20mA (2 wires), 0.5 - 4.5V (3 wires) |
Accuracy | ± 0.5% (Full Scan) |
Manufaturer's Other Rating | 5A @ 40V DC |
Protection | IP67 with DIN IP69 M12X1, Integral Deustch, Packard Plug, Cabl |
Internal O-Ring Material | - Buna-N (Standard) (optional: EPDM, VITON®, Low Temp Nitrile) |
