MVAA-xx0 | Pneumatic Pilot Valve
- Port Size(inch): 1/8", 1/4", 1/2" BSPP
- Pressure Range: 3A1, 3A2, 4A2: 0~0.8 MPa, 4A1: 0.15~0.8 MPa
- Orifice: 12 mm2 -50 mm2
- Medium: Air
AU $76.56
Highlights
Application

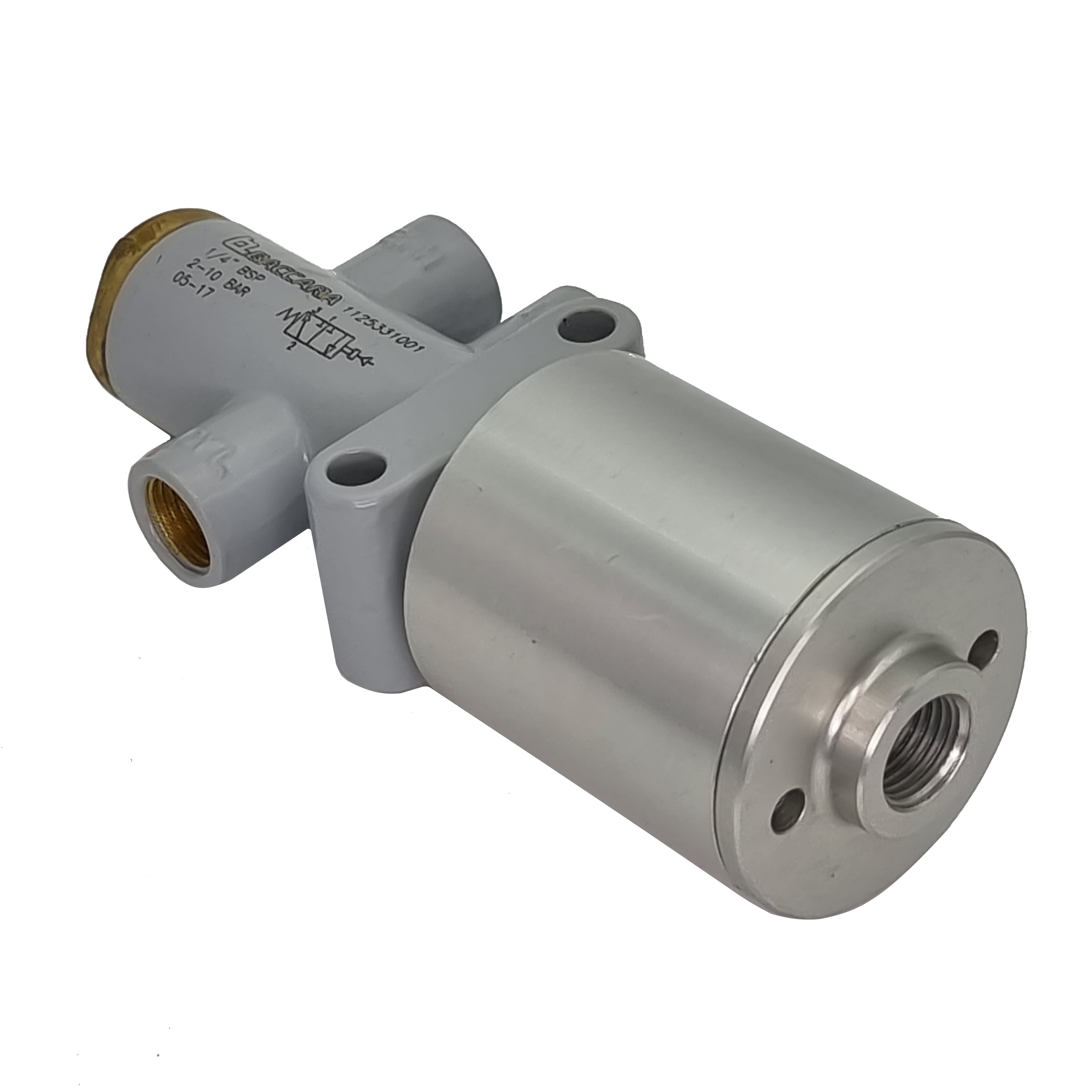

(PEA-CYL)
<p><strong><span style="font-size: 16px;"><span class="fontstyle0">Technical Data</span></span></strong></p>
<table class="NormalTable" style="width: 100%; max-width: 500px; height: auto;">
<tbody>
<tr>
<td width="141"><span class="fontstyle0">Fluid </span></td>
<td width="255"><span class="fontstyle0">Air / Inert gas / Water</span></td>
</tr>
<tr>
<td width="141"><span class="fontstyle0">Operation pressure </span></td>
<td width="255"><span class="fontstyle0">-1 to 10 bar</span></td>
</tr>
<tr>
<td width="141"><span class="fontstyle0">Ambient temperature </span></td>
<td width="255"><span class="fontstyle0">-5</span><span class="fontstyle0" style="font-size:4pt;">0 </span><span class="fontstyle0">to 55</span><span class="fontstyle0" style="font-size:4pt;">0 </span><span class="fontstyle0">C (option for FKM seals)<br />
up to 150</span><span class="fontstyle0" style="font-size:4pt;">0 </span><span class="fontstyle0">C</span></td>
</tr>
<tr>
<td width="141"><span class="fontstyle0">Lubrication </span></td>
<td width="255"><span class="fontstyle0">Not required<br />
(use turbine oil class ISO VG32 if lubricated)</span></td>
</tr>
<tr>
<td width="141"><span class="fontstyle0">Port size </span></td>
<td width="255"><span class="fontstyle0">1/4” & 1/2” BSP</span></td>
</tr>
<tr>
<td width="141">
<p><span class="fontstyle0">Flow rate (Air</span>)</p>
</td>
<td width="255"><span class="fontstyle0">1/4” port size = 1,100 L/min (at 5.5 bar)<br />
1/2” port size = 3,500 L/min (at 5.5 bar)</span></td>
</tr>
<tr>
<td width="141"><span class="fontstyle0">Minimum pilot pressure</span></td>
<td width="255"><span class="fontstyle0">Air-Air : 2.5 bar<br />
Air-Spring : 3 bar<br />
Air-Dif : 2.5 bar<br />
Cyl-Cyl : 0.5 bar<br />
Cyl-Spring : 0.7 bar</span></td>
</tr>
</tbody>
</table>
MVAA-xx0 | Pneumatic Pilot Valve
AU $76.56
Brass Pilot-Spring Pilot-Pilot Pilot-Differential
AU $312.29
