MCQI2 | ISO-VDMA Double Acting Standard Profile Air Cylinder

The MCQI2 Pneumatic ISO 15552 Standard Profile Air Cylinder is a standard profile linear pneumatic cylinder that conforms to the ISO 15552 standard for worldwide interchangeability. The MCQI2 series has a hard anodised aluminium tube that offers high resistance to corrosion and low internal friction. The MCQI2 series also has a special housing and bushing that enables self-lubrication of the piston rod, extending its service life. The MCQI2 series has four grooves on the tube for easy insertion of sensors and accessories, and various rod end shapes and mounting options to suit your application needs. The MCQI2 series is available in bore sizes from 32mm to 100mm, and can operate in standard, low or high temperature environments.

Features

Non lubrication
Special housing and bushing enables self lubrication of piston rod.
High quality long service life
Hard anodised aluminium cylinder tubes offer a high resistance to corrosion and low internal friction.
ISO-VDMA Standard specification
Conforms to ISO-6431 and VDMA 24562 specification enabling worldwide interchangeability.
Easy to insert reed switch
With four grooves on the tube, proximity and reed sensors can be easily inserted into any position.

Tube I.D. (mm)	32, 40, 50, 63, 80, 100
Medium	Air
Operating pressure range	0.05~1 MPa
Proof pressure	1.5 MPa
Ambient temperature	－5℃~＋60℃ (no freezing)
Available speed range	50~500 mm/sec
Sensor switch	RCI

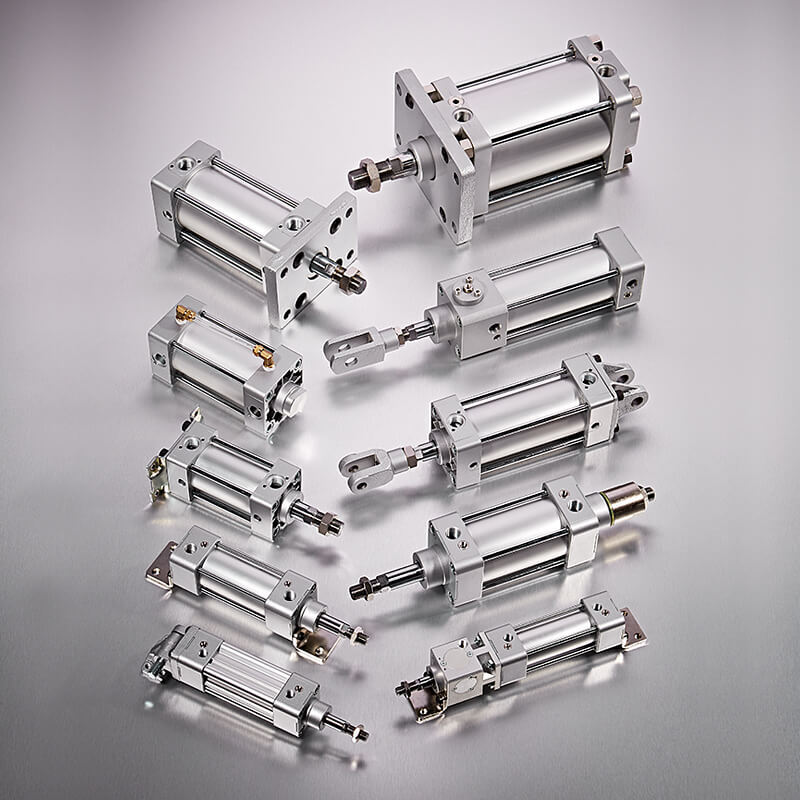

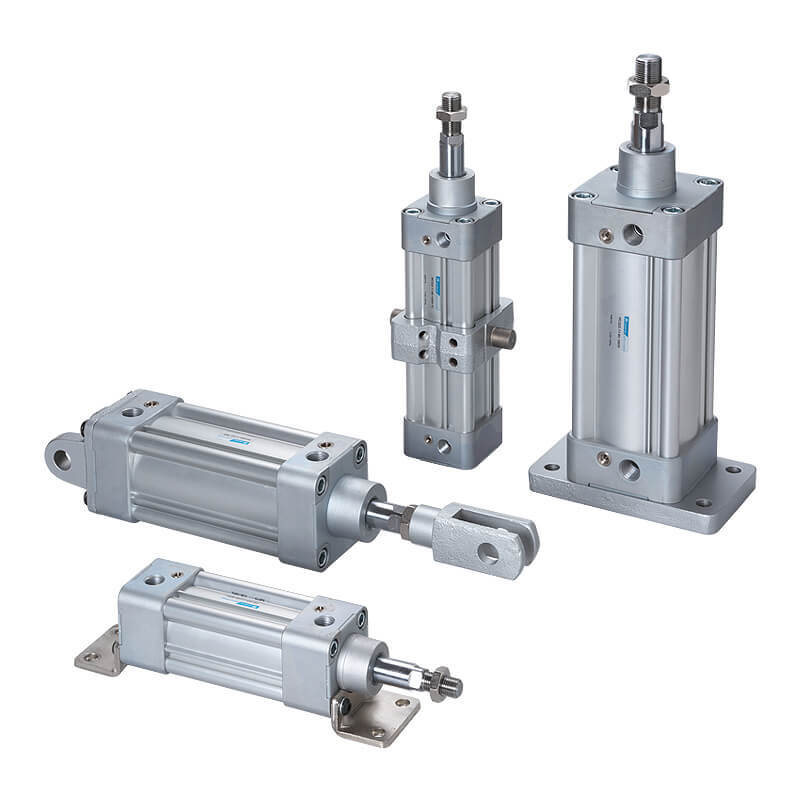

(MCQI2-11)

Specification

Model	MCQI2
Tube I.D. (mm)	32,40,50,63,80,100
Medium	Air
Operating perssure range	0.05~1 MPa
Proof pressure	1.5 MPa
Ambient temperature	-5~+60°C (No freezing)
Available speed range	50~500 mm/sec
Sensor switch (*)	RCI

* RCI specification, please refer to page 8-11.

Table for standard stroke

Tube I.D.	Stroke (mm)
ø32,40	50,75,100,125,150,175,200,250,300,350,400,450,500
ø50,63	↑ 600
ø80,100	↑ 600,700

Stroke out of specification is also available.
Please consult us if stroke out of specification

Bore Size	Fitting Size	Rod Thread
32	G1/8	M10×1.25
40	G1/4	M12×1.25
50	G1/4	M16×1.5
63	G3/8	M16×1.5
80	G3/8	M20×1.5
100	G1/2	M20×1.5

Bore Size	A	AA	AB	AC	AD	AE	AF	AR	AS	B	B1	B2	C	DD	E	G	H	I	J	K	L	O
32	22	16	26	12	7	M10×1.25	20	5	17	94	10	17	26	G1/8	M10×1.25	12	30	20	4	30.5	20	32.5
40	24	20	27	12	7	M12×1.25	30	6	19	105	13	19	30	G1/4	M12×1.25	16	35	20.5	4	34	14.5	38
50	32	18	34	15	10	M16×1.5	40	8	24	106	16	24	37	G1/4	M16×1.5	20	40	28	4	31	16	46.5
63	32	20	32	15	10	M16×1.5	40	8	24	121	16	24	37	G3/8	M16×1.5	20	45	26	4	33	16	56.5
80	40	32	41	20	14	M22×1.5	50	13	32	128	21	30	46	G3/8	M20×1.5	25	45	32.5	4	35.5	20.5	72
100	40	30	46	20	14	M22×1.5	50	13	32	138	21	30	51	G1/2	M20×1.5	25	55	37.5	4	37	19	89

Bore Size	R	S	U	UC	UD	X	Z	ZB	ZM	ZN	ZP	ZQ
32	5	M6×1.0	4.5	4.5	17	47	146	120	146	190	146	184
40	6	M6×1.0	5.3	4.5	17	55	163	135	165	213	162	206
50	8	M8×1.25	8.5	4.5	18	65	179	143	180	244	177	227
63	8	M8×1.25	8	4.5	18	78	194	158	195	259	190	242
80	10	M10×1.5	9	5.5	19	95	218	174	220	300	215	287
100	10	M10×1.5	13	5.5	19	115	233	189	240	320	235	305
